Cooling Fan (2AZ-FE): Notes

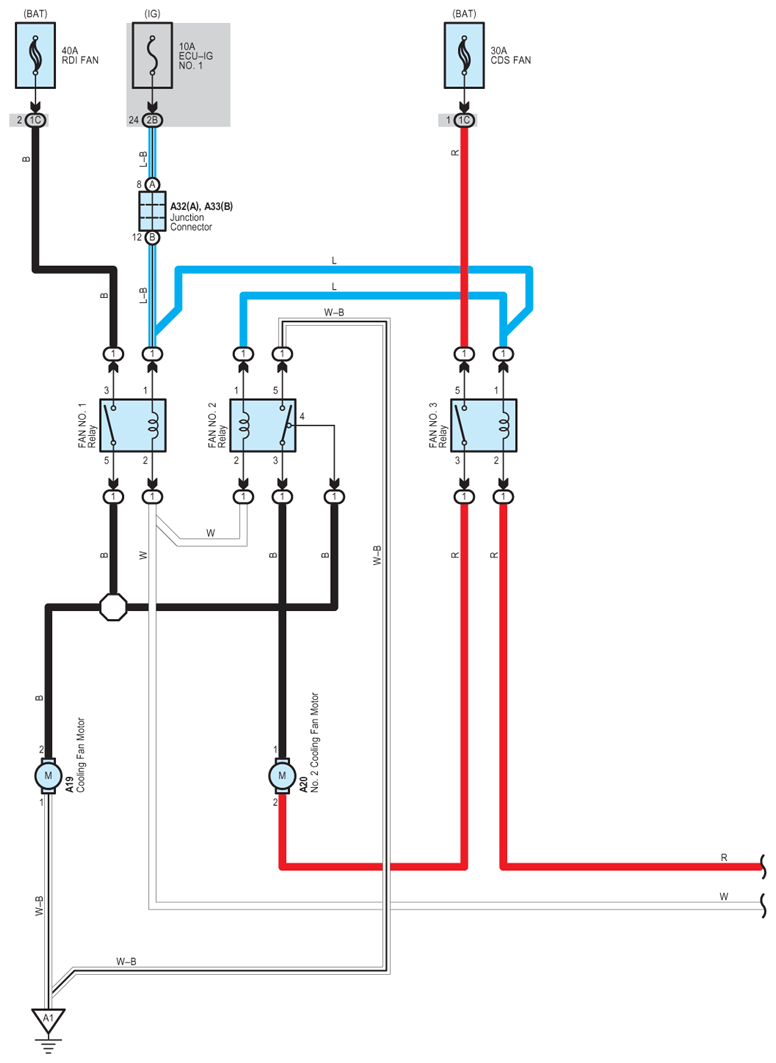

Fig 1: Cooling Fan (2AZ-FE) - Circuit Diagram (1 Of 5)
G07571509Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

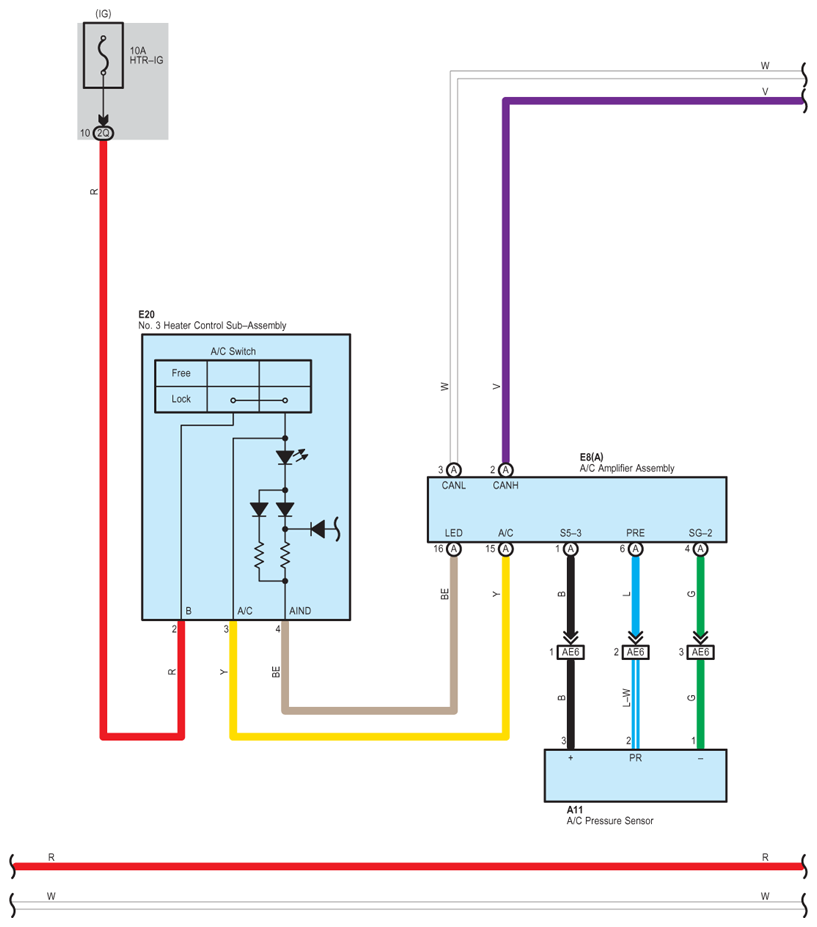

Fig 2: Cooling Fan (2AZ-FE) - Circuit Diagram (2 Of 5)
G07571510Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

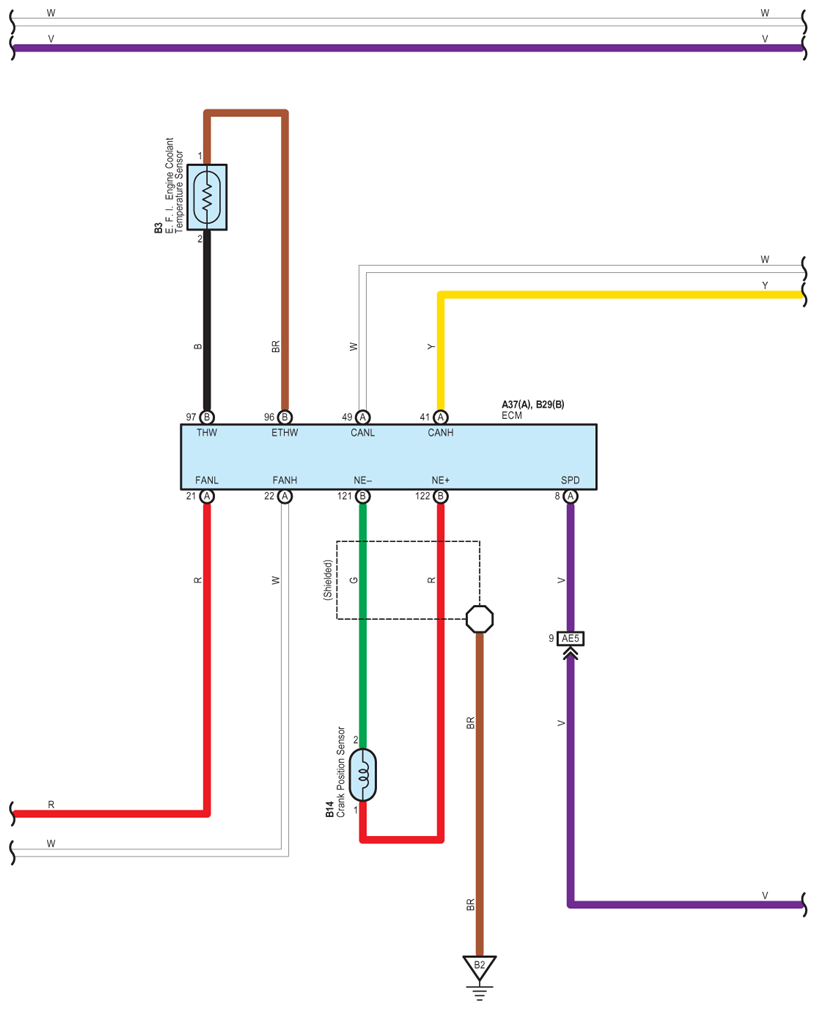

Fig 3: Cooling Fan (2AZ-FE) - Circuit Diagram (3 Of 5)
G07571511Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

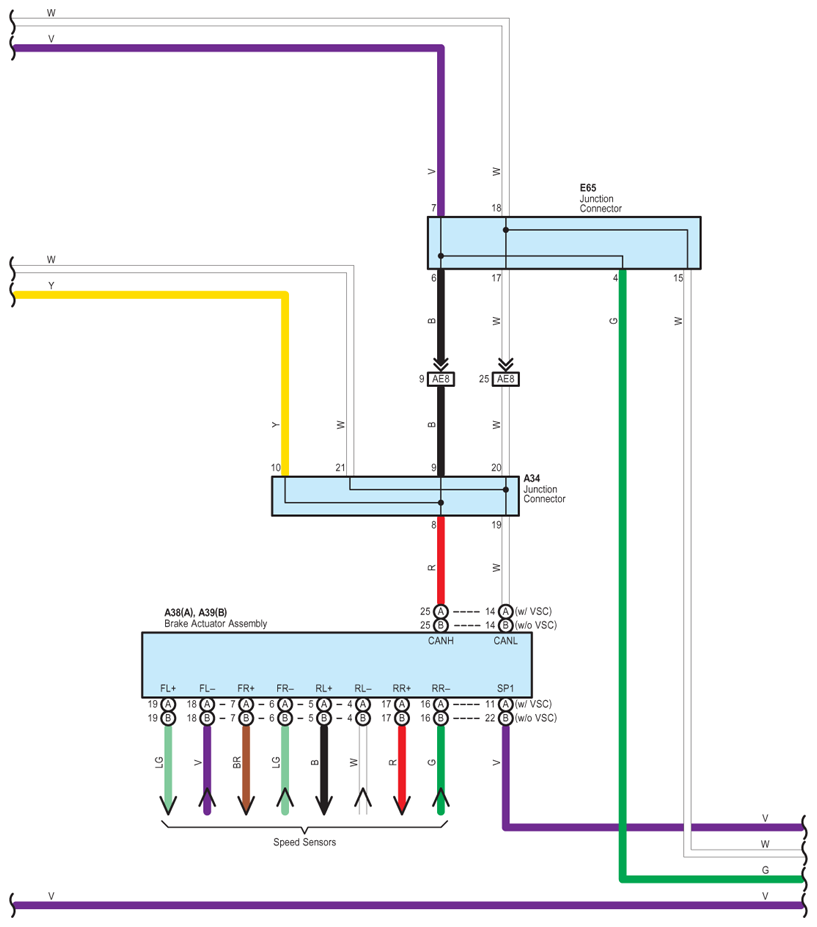

Fig 4: Cooling Fan (2AZ-FE) - Circuit Diagram (4 Of 5)
G07571512Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

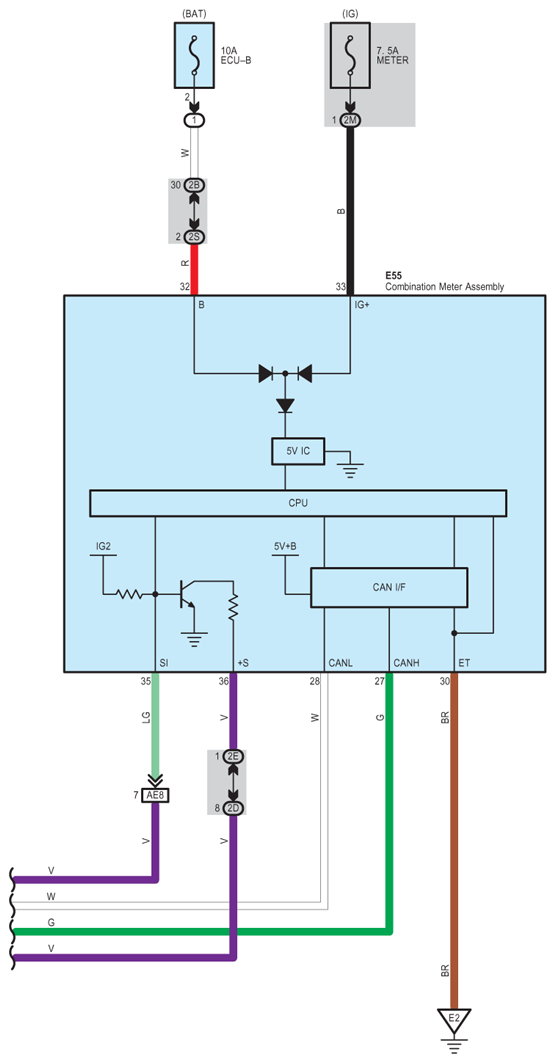

Fig 5: Cooling Fan (2AZ-FE) - Circuit Diagram (5 Of 5)
G07571513Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
