Combination Meter Assembly Connector End View (E55)

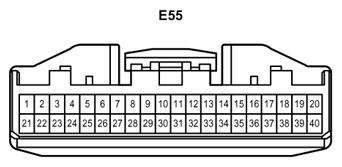

Fig 1: Combination Meter Assembly Connector End View (E55)

G08368379

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
