Crankshaft Position Sensor: Removal: Removal

  1. REMOVE ENGINE UNDER COVER RH
  2. REMOVE CRANK POSITION SENSOR
    1. Disconnect the crank position sensor connector.
    2. Remove the bolt and crank position sensor.

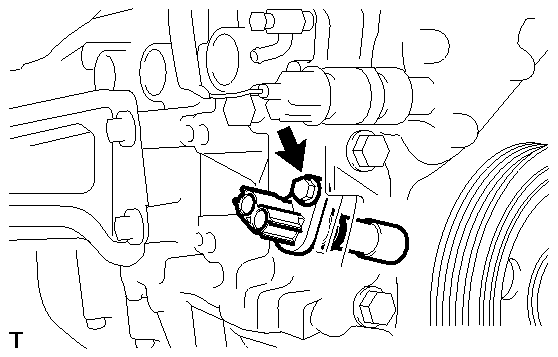

      Fig 1: Locating Crankshaft Position Sensor And Bolt
      GTY161160Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
