Emission Control System (2ZR-FE) (Inspection)
>>
Emission Control System
>>

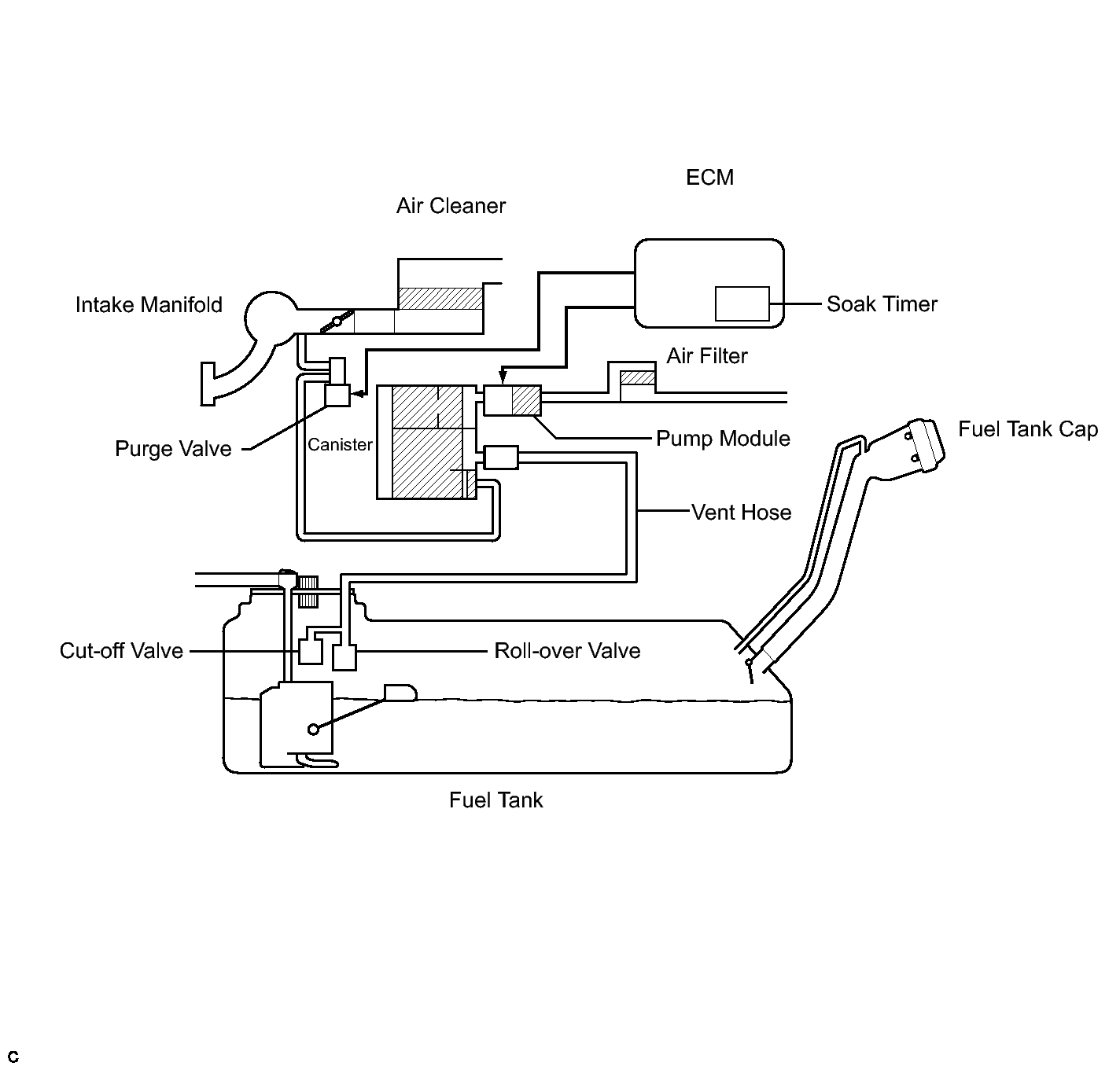

System Diagram
>>
System Diagram
System Diagram

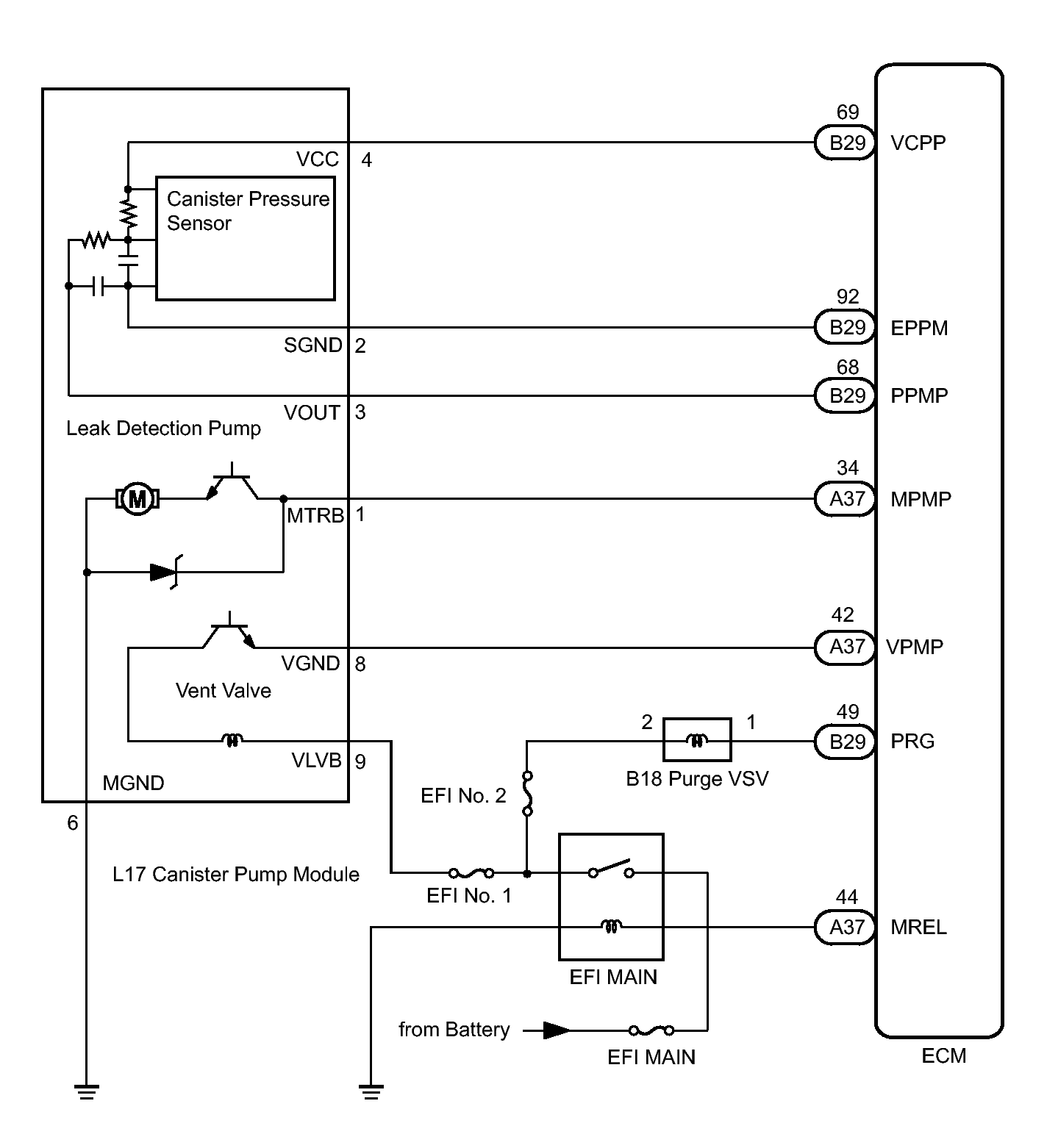

Fig 1: Emission Control System Wiring Diagram (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Emission Control System Wiring Diagram (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
