Main Body ECU Communication Stop Mode: Wiring Diagram

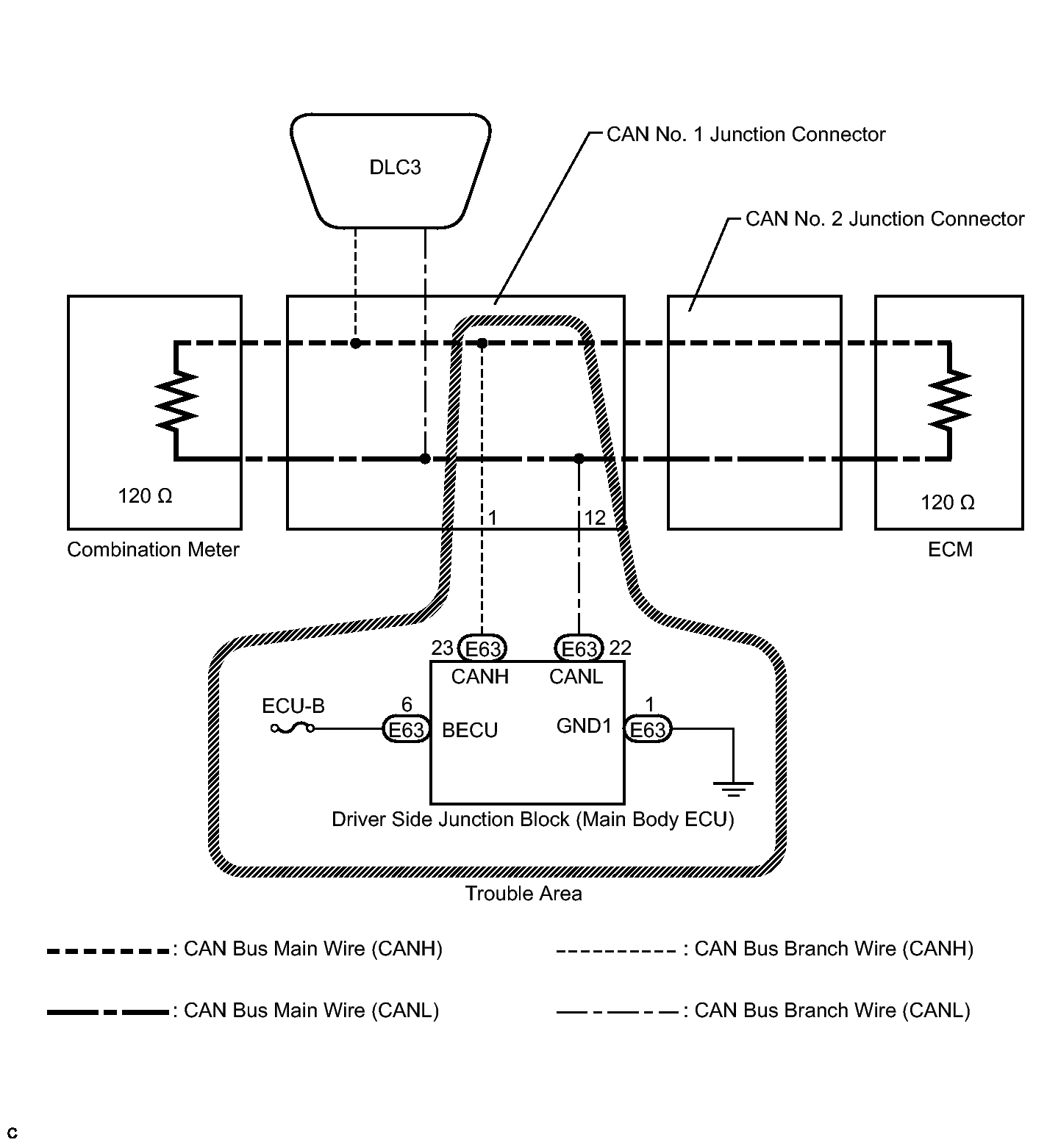

Fig 1: Main Body ECU Communication -- Wiring Diagram

GTY243792

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
