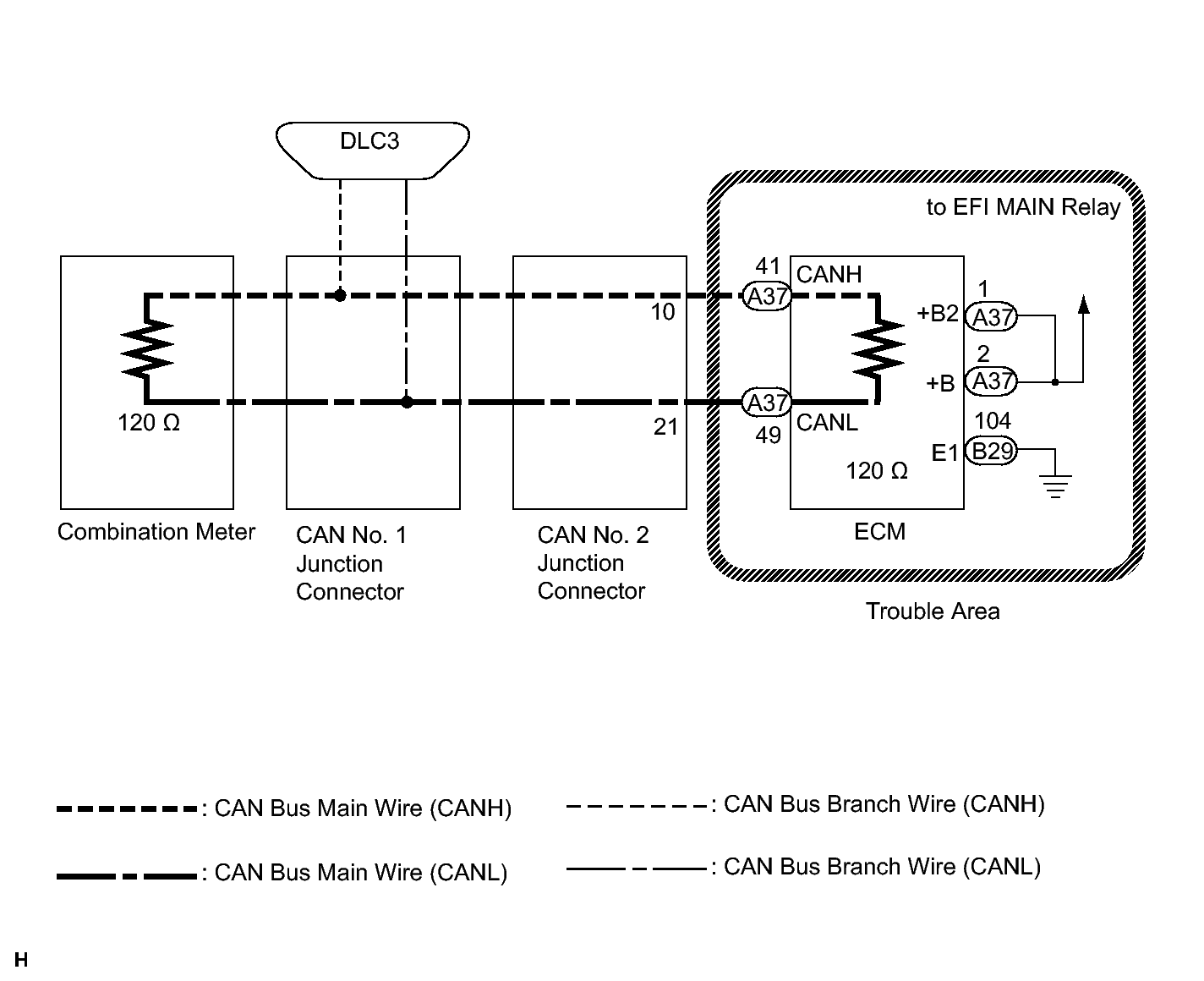

Home >> Toyota >> 2010 >> Matrix Base, Automatic >> Repair and Diagnosis (Single Page) >> Accessories & Equipment >> Communication Devices >> Networking (Diagnostic Codes & Circuit Tests) >> Can Communication System >> Circuit Test >> ECM Communication Stop Mode >> Wiring Diagram
