Passive Arming On/Off Selection, Entry Delay Time Selection

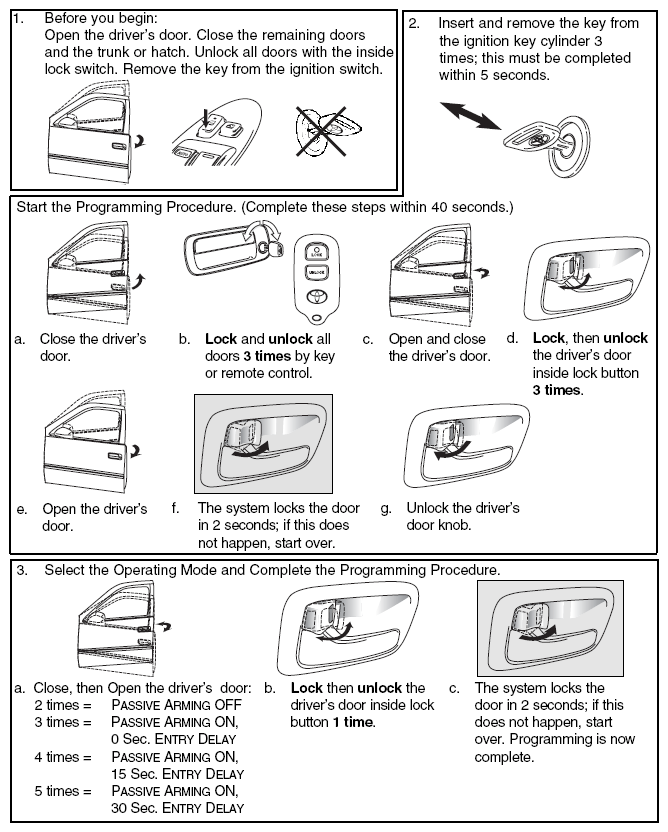

Fig 1: Identifying Programming Procedure

G06741439

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
