Electric Tension Reducer
>>
Notes
Electric Tension Reducer: Notes

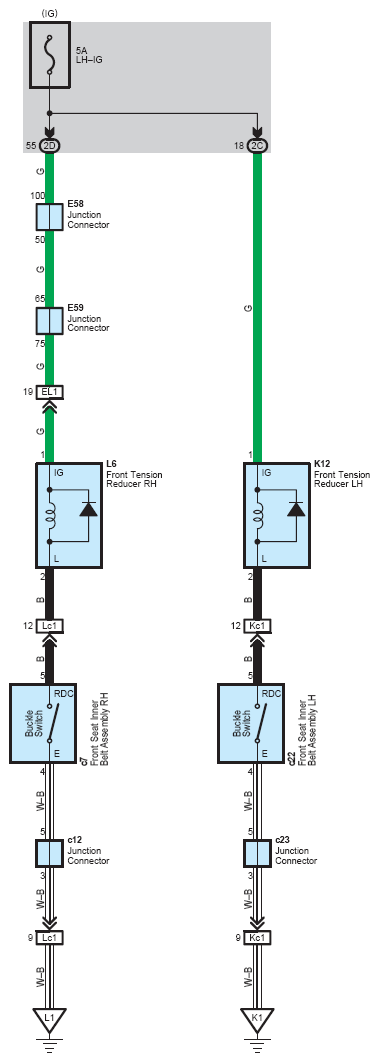

Fig 1: Electric Tension Reducer - Circuit Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
