Yaw Rate And Deceleration Sensor: Components: Illustration

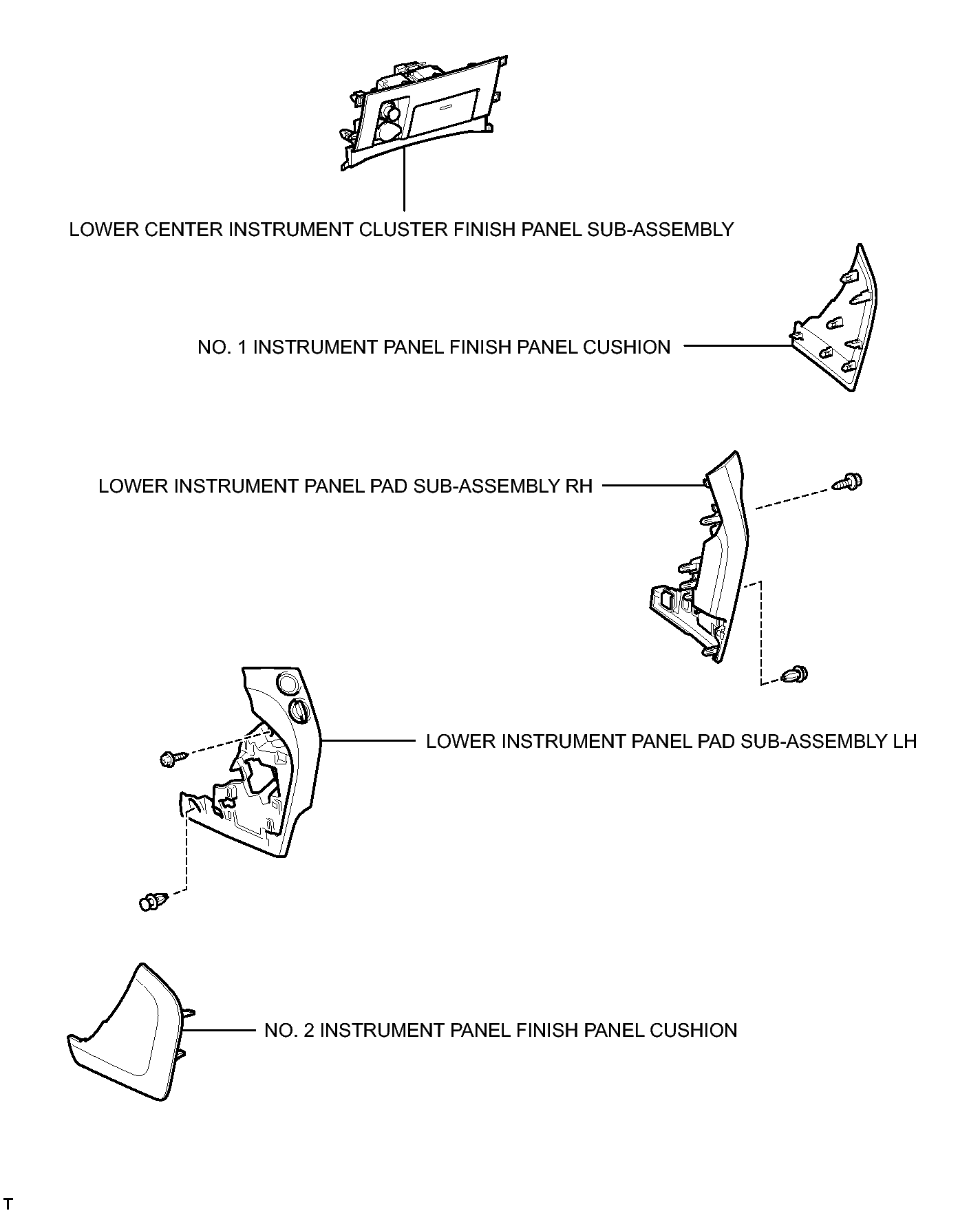

Fig 1: Identifying Yaw Rate And Deceleration Sensor Replacement Components (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

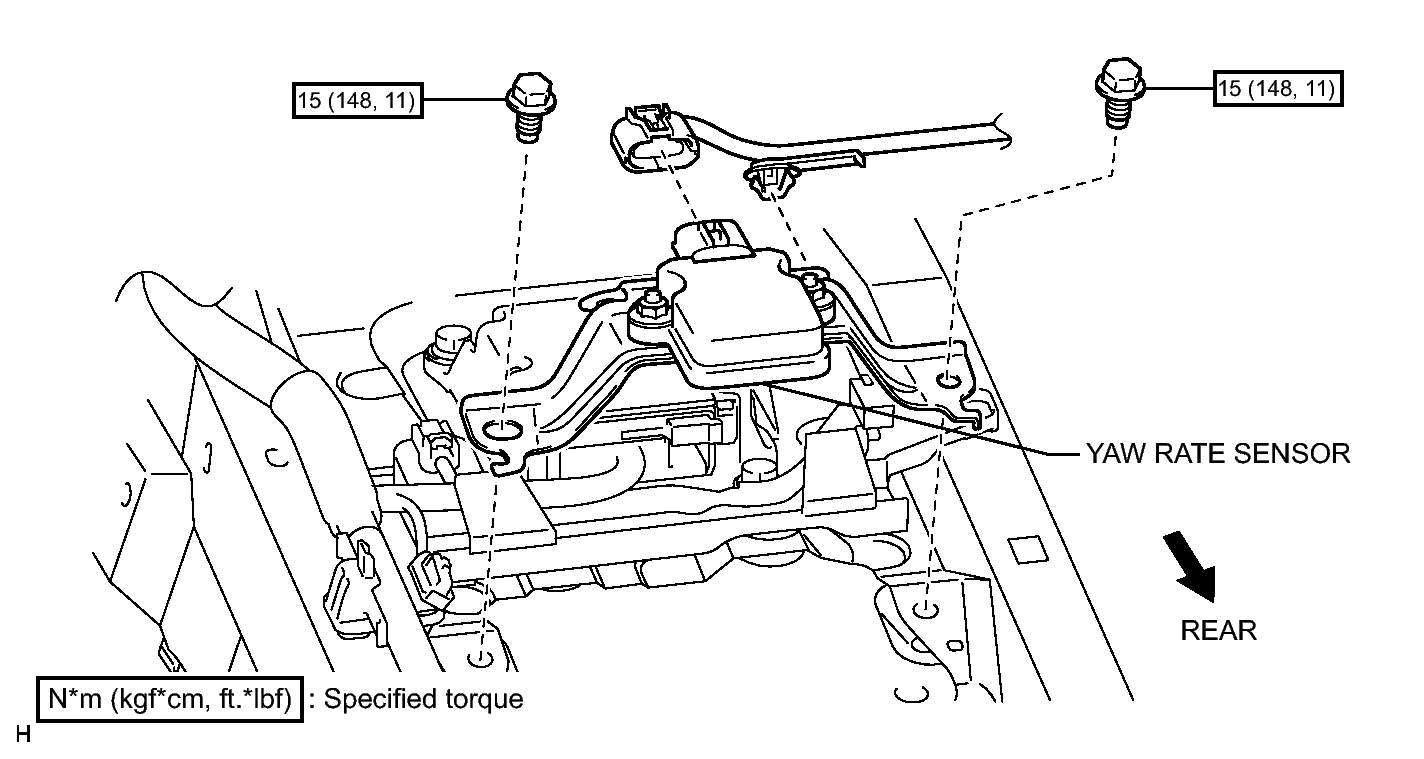

Fig 1: Identifying Yaw Rate And Deceleration Sensor Replacement Components With Torque Specifications (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 1: Identifying Yaw Rate And Deceleration Sensor Replacement Components With Torque Specifications (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
