Skid Control Buzzer: Components: Illustration

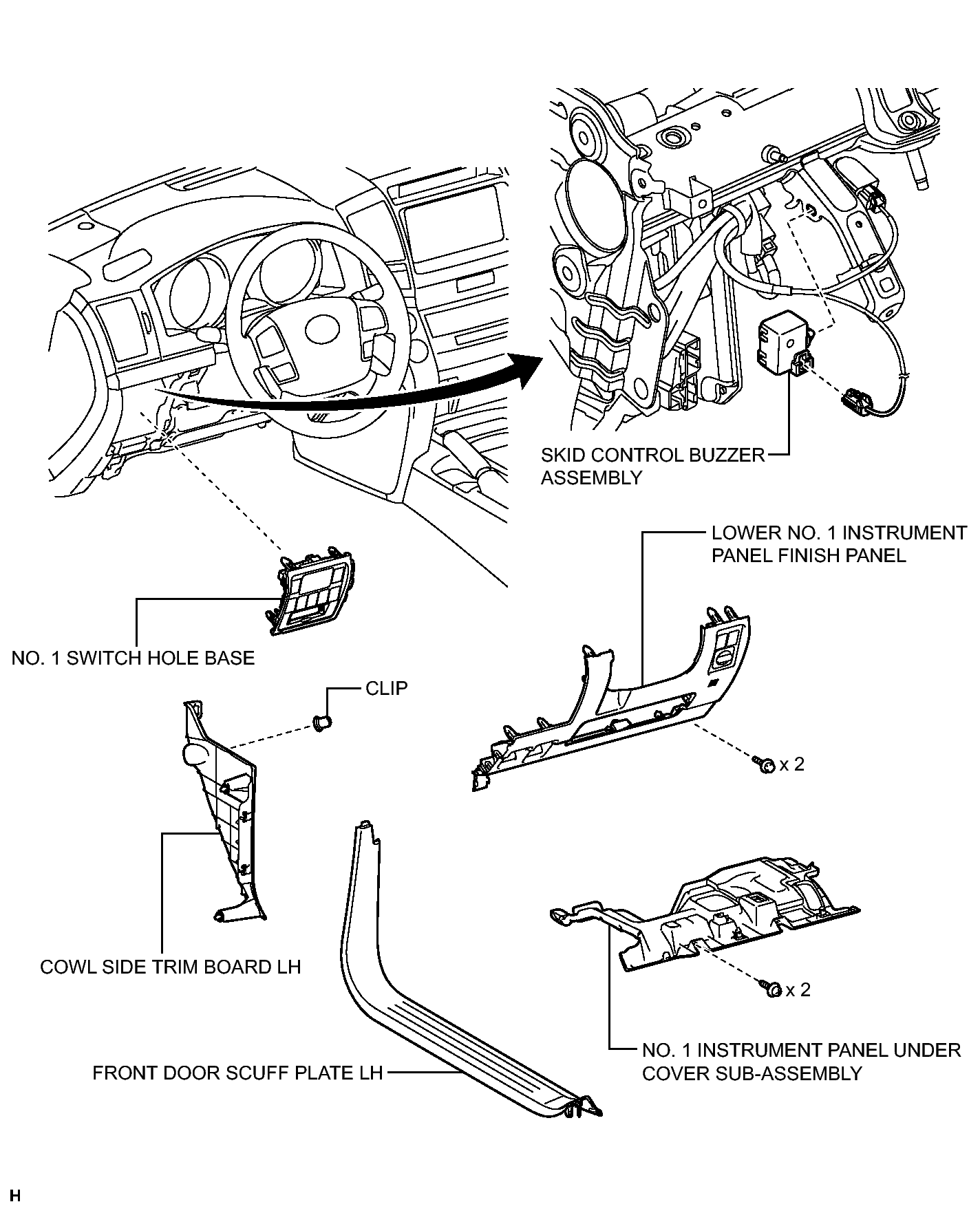

Fig 1: Identifying Skid Control Buzzer Replacement Components

GTY244465

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
