Rear Speed Sensor: Components: Illustration

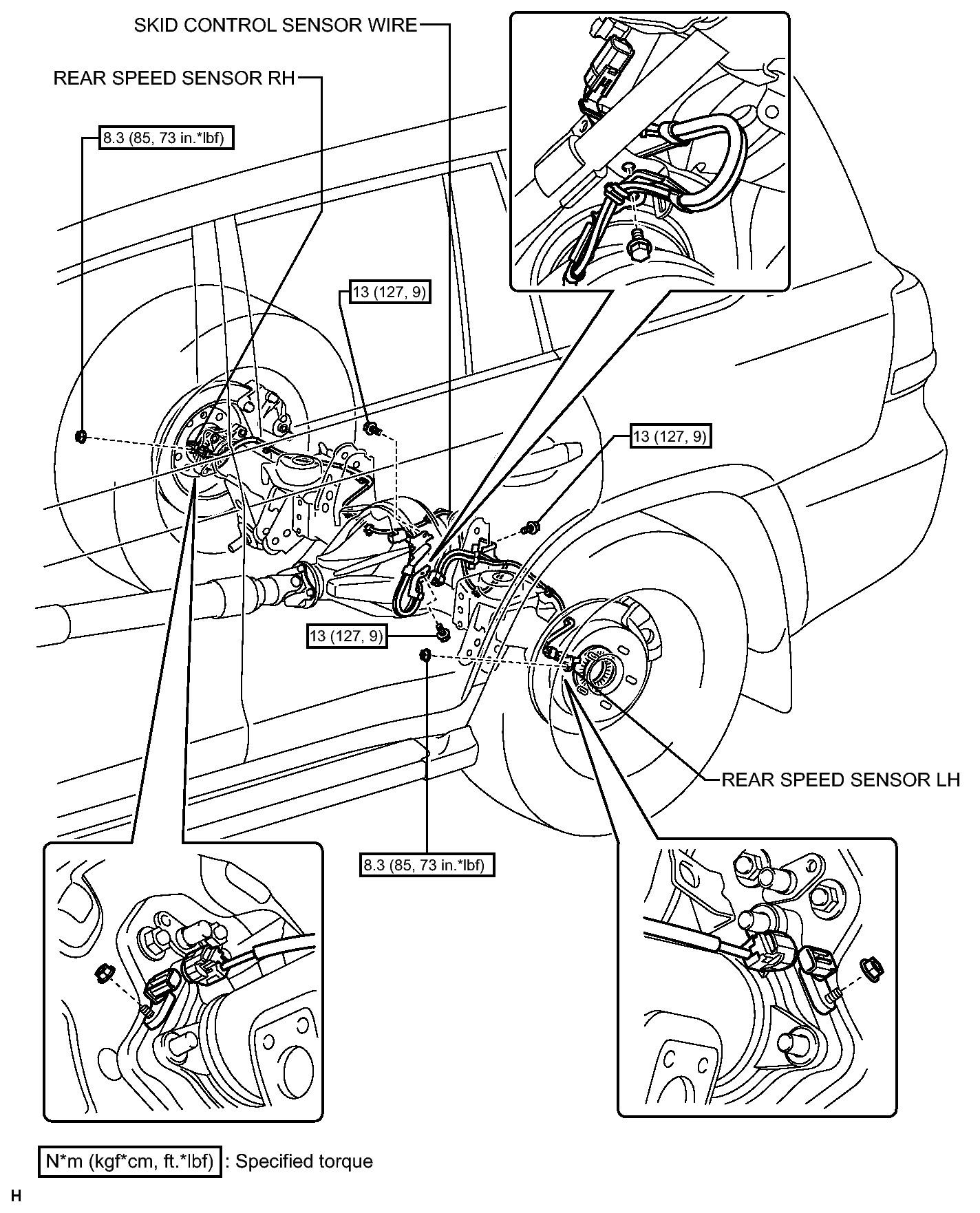

Fig 1: Identifying Rear Speed Sensor Replacement Components With Torque Specifications

GTY244462

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
