VVT Sensor: Components: Illustration

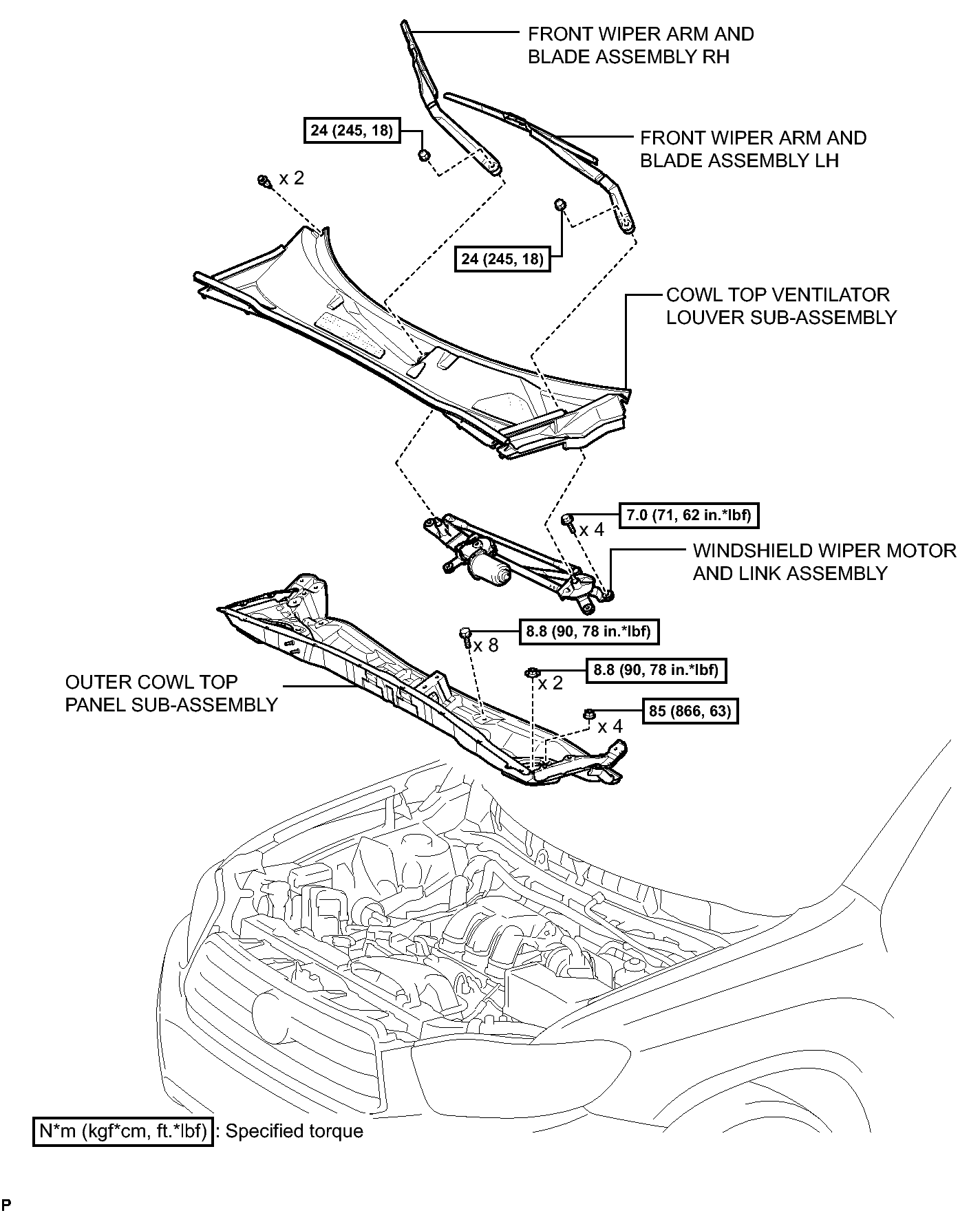

Fig 1: Identifying VVT Sensor Replacement Components With Torque Specifications (1 Of 4)
GTY193843Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


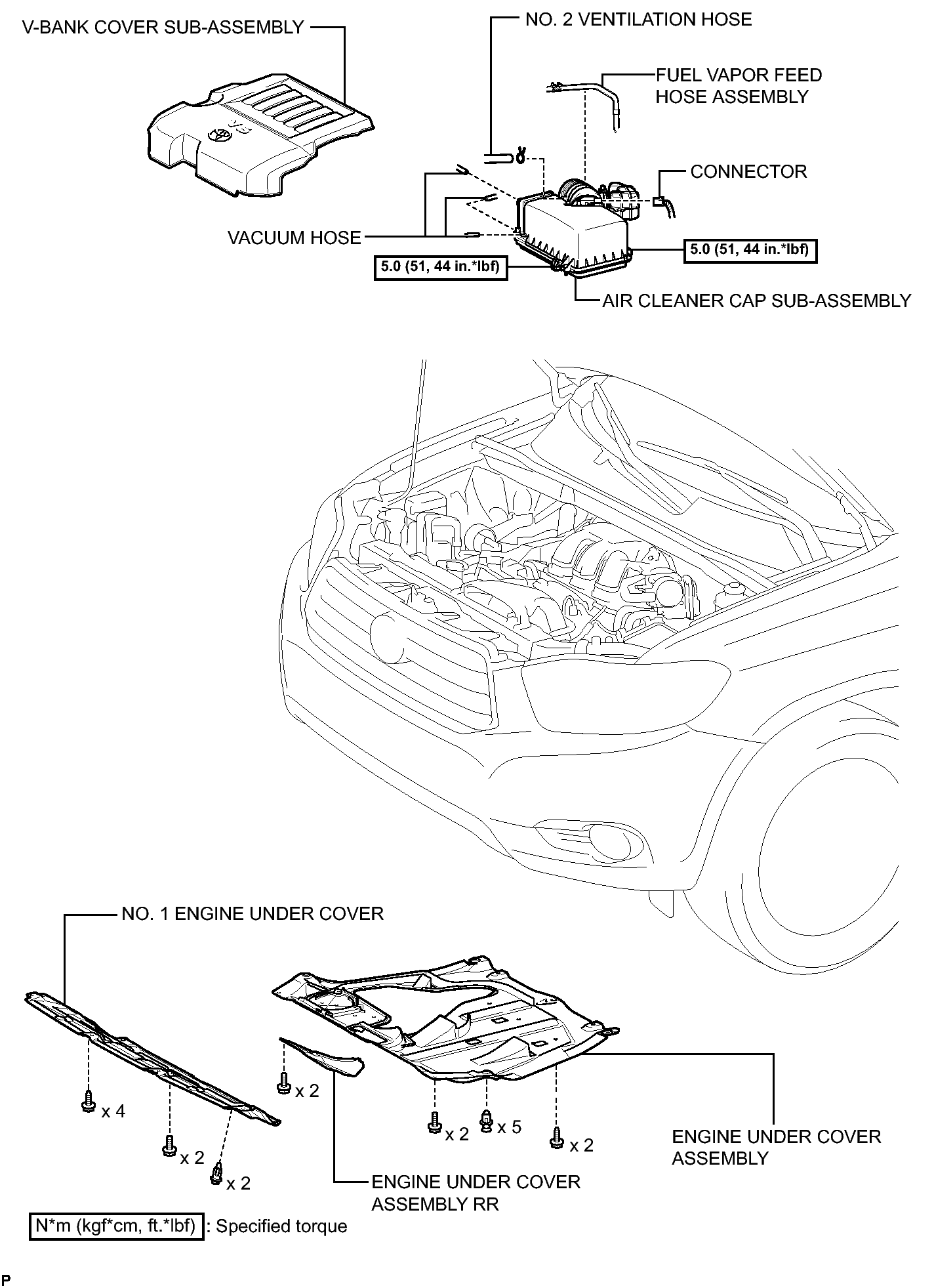

Fig 1: Identifying VVT Sensor Replacement Components With Torque Specifications (2 Of 4)
GTY193847Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

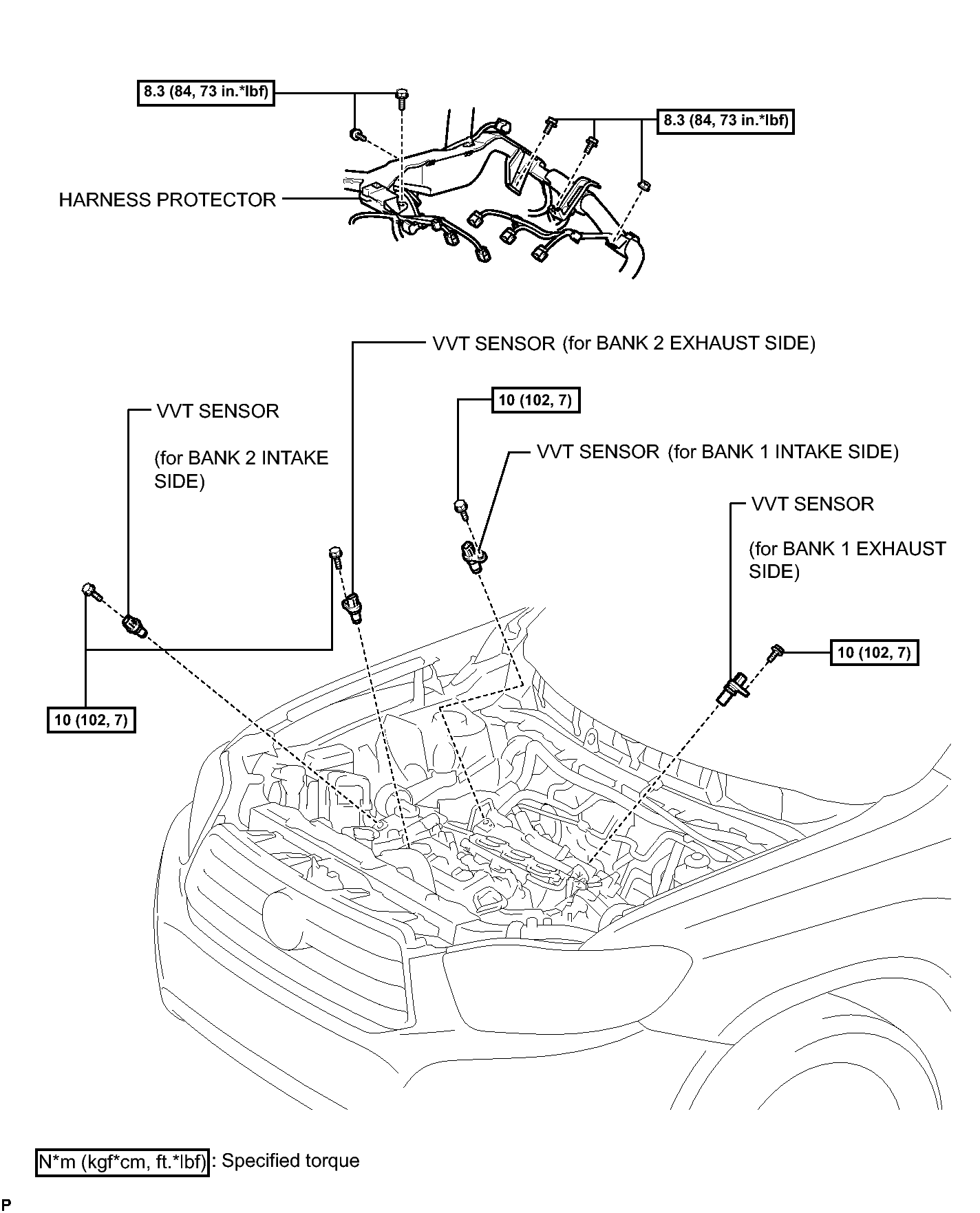

Fig 1: Identifying VVT Sensor Replacement Components With Torque Specifications (3 Of 4)
GTY194026Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


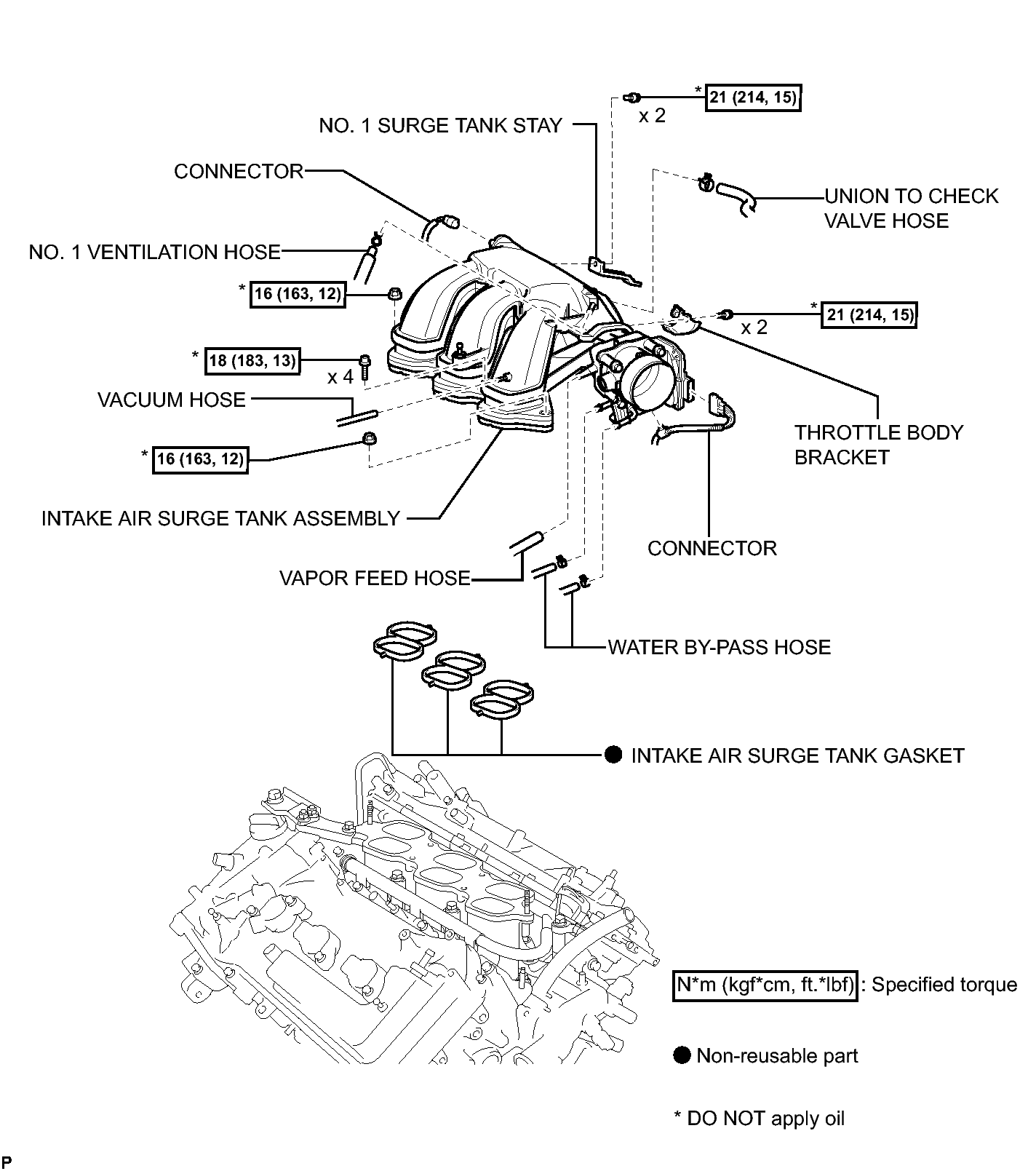

Fig 1: Identifying VVT Sensor Replacement Components With Torque Specifications (4 Of 4)
GTY189288Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
