ABS, TRAC, VSC, Auto LSD and Active TRAC: Notes

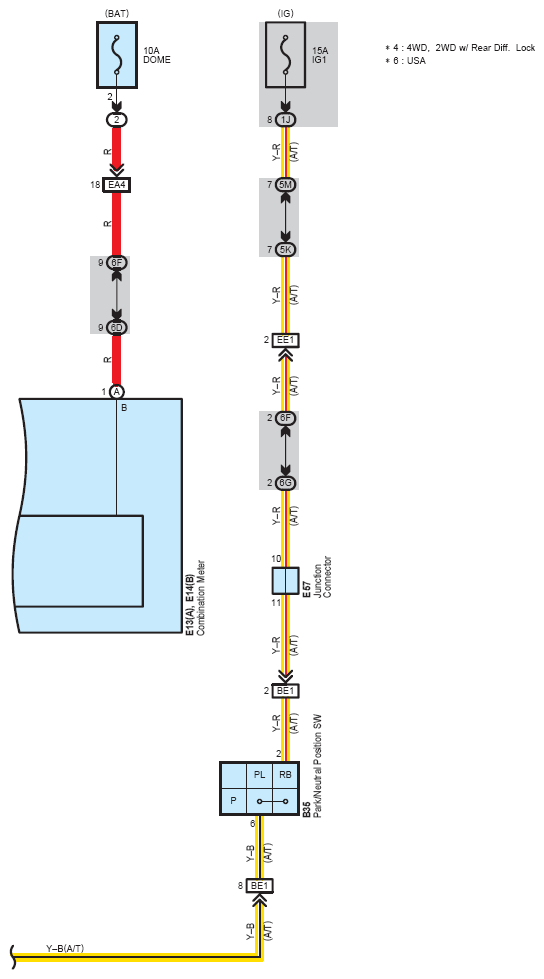

Fig 1: ABS, TRAC, VSC, AUTO LSD And Active TRAC - Circuit Diagram (1 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

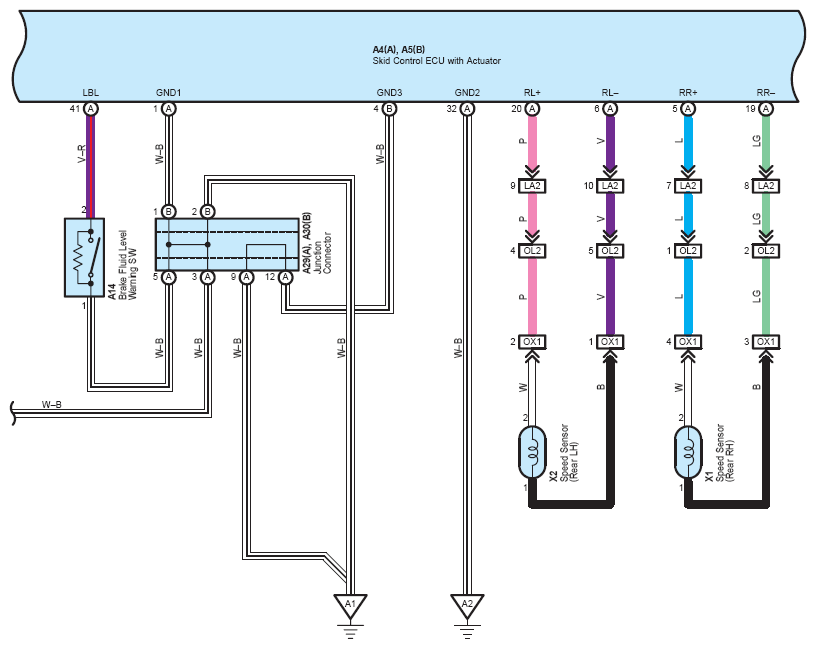

Fig 2: ABS, TRAC, VSC, AUTO LSD And Active TRAC - Circuit Diagram (2 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

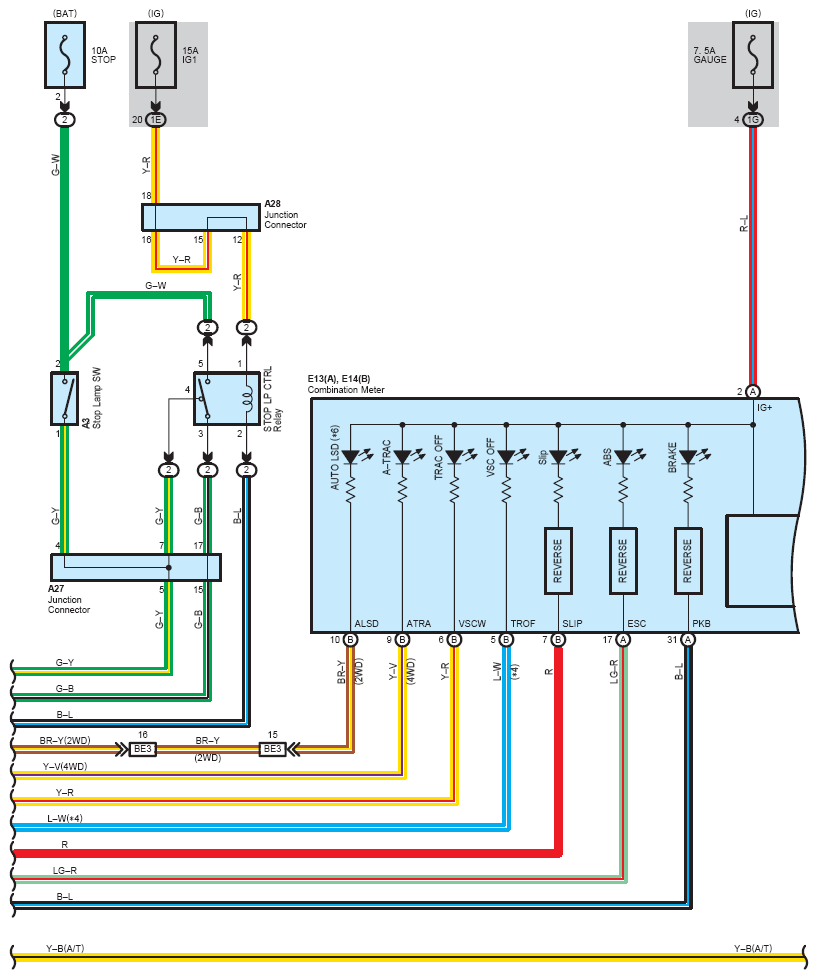

Fig 3: ABS, TRAC, VSC, AUTO LSD And Active TRAC - Circuit Diagram (3 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

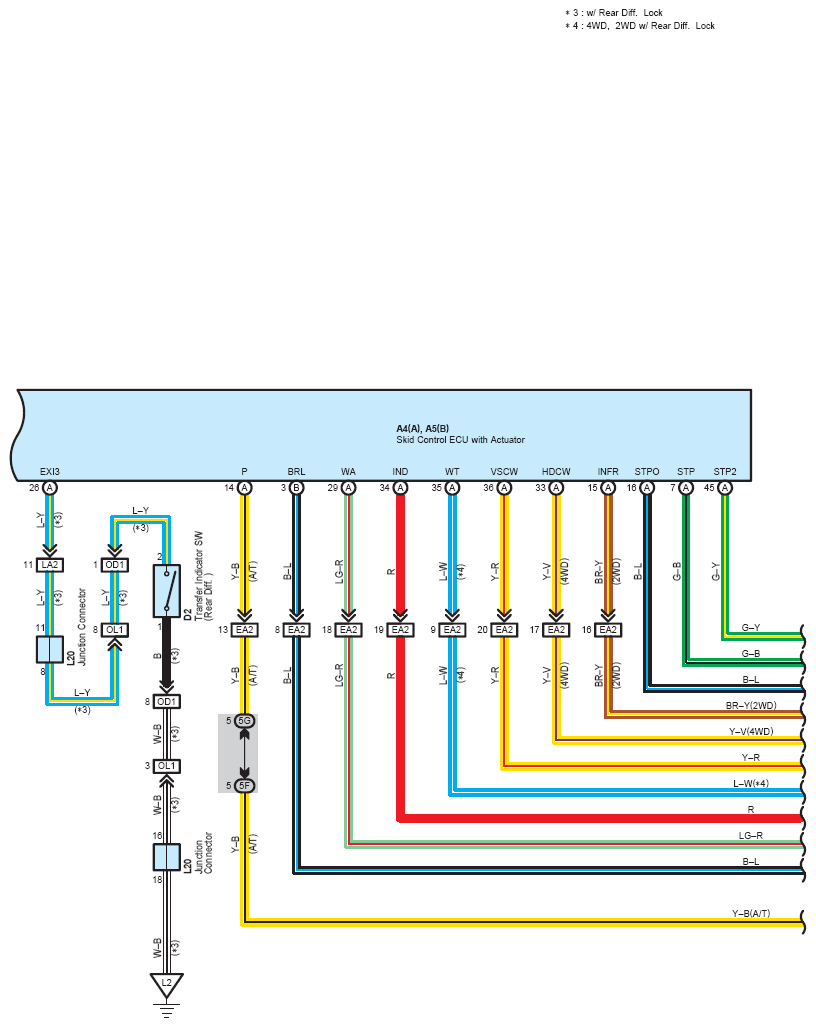

Fig 4: ABS, TRAC, VSC, AUTO LSD And Active TRAC - Circuit Diagram (4 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

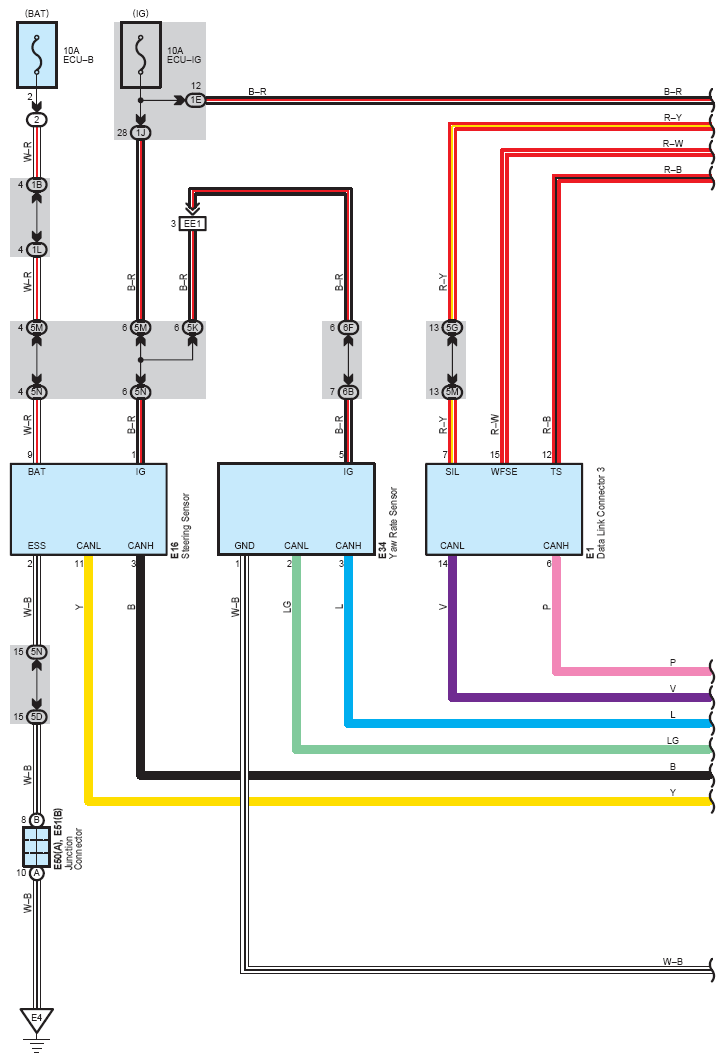

Fig 5: ABS, TRAC, VSC, AUTO LSD And Active TRAC - Circuit Diagram (5 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

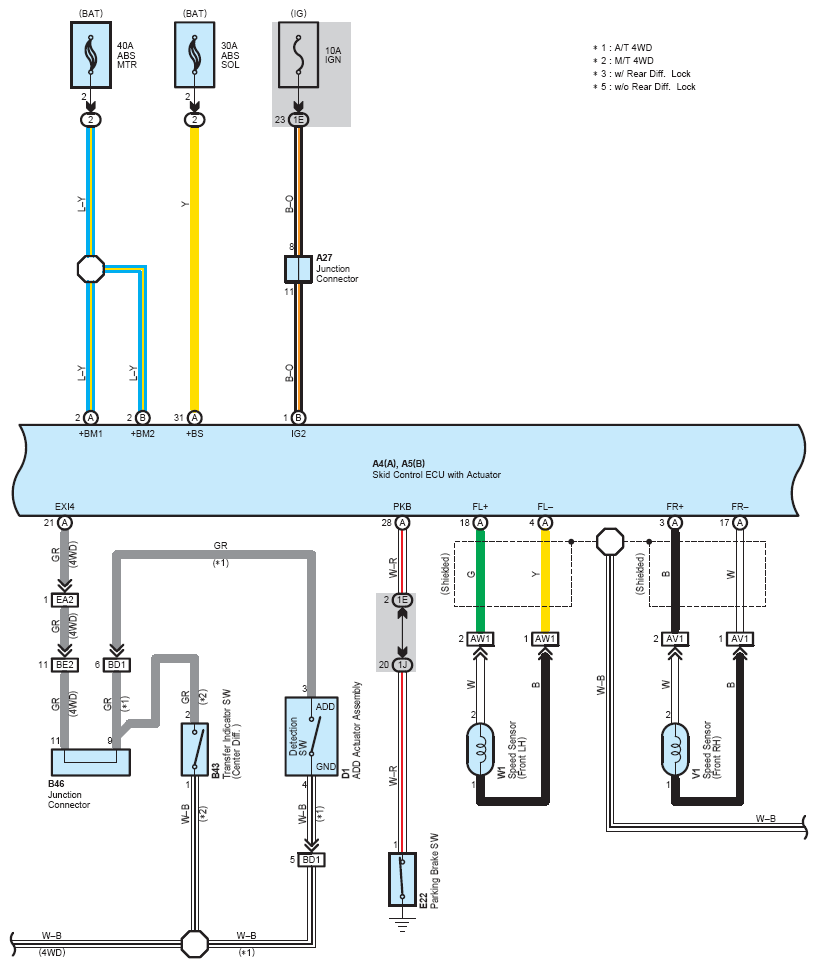

Fig 6: ABS, TRAC, VSC, AUTO LSD And Active TRAC - Circuit Diagram (6 Of 8)

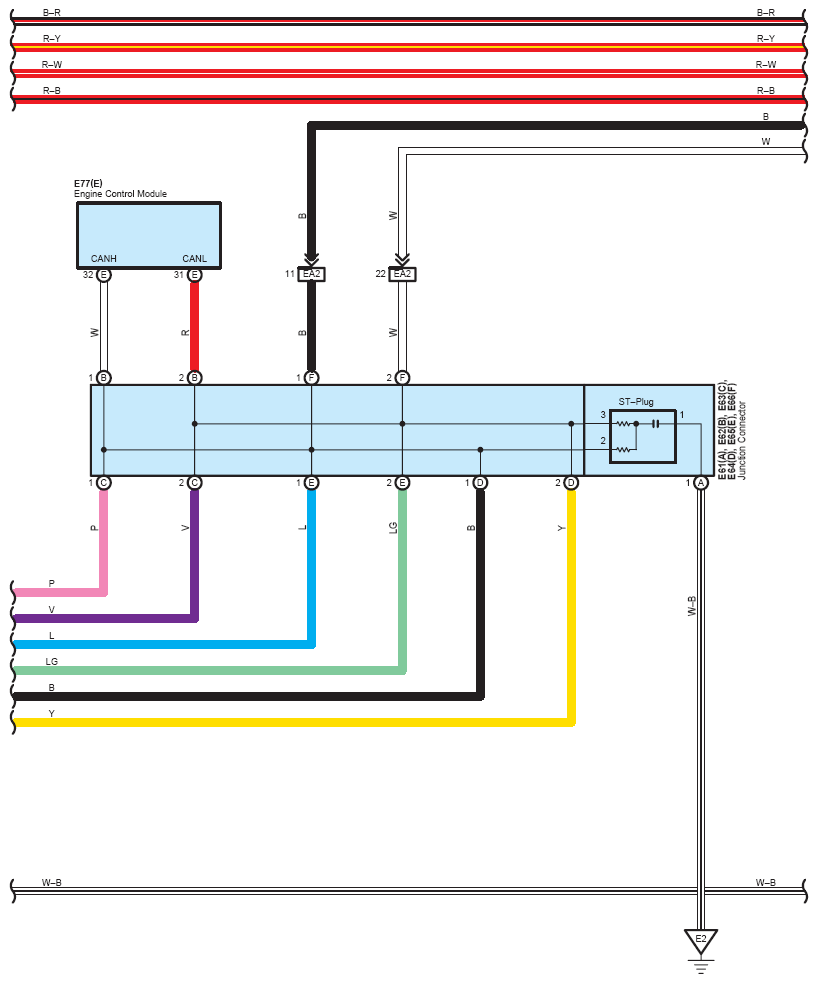

Fig 7: ABS, TRAC, VSC, AUTO LSD And Active TRAC - Circuit Diagram (7 Of 8)

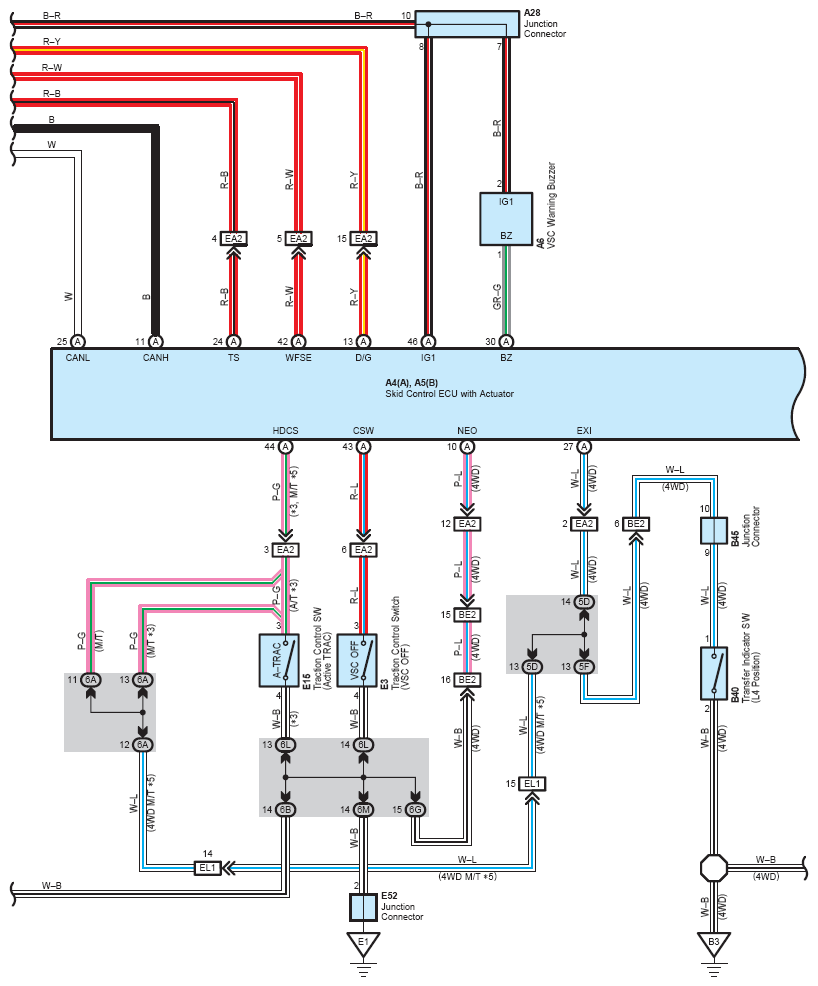

Fig 8: ABS, TRAC, VSC, AUTO LSD And Active TRAC - Circuit Diagram (8 Of 8)
