DTC P0102: Mass or Volume Air Flow Circuit Low Input; DTC P0103: Mass or Volume Air Flow Circuit High Input: Wiring Diagram

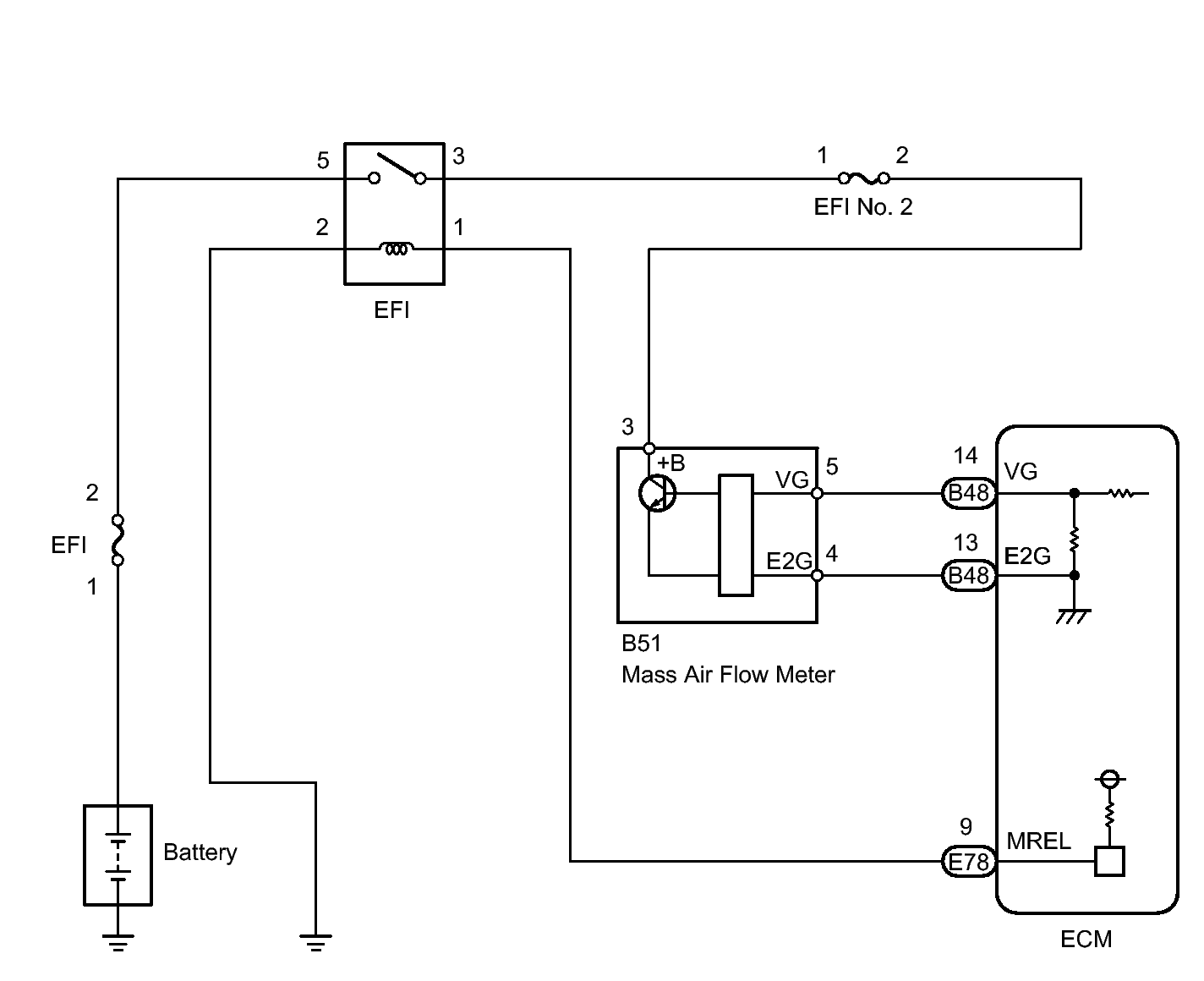

Fig 1: Identifying Mass Air Flow Meter Wiring Diagram
GTY177259Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
