Front Speed Sensor: Removal: Removal

  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
  2. REMOVE FRONT WHEEL
  3. REMOVE FRONT SPEED SENSOR

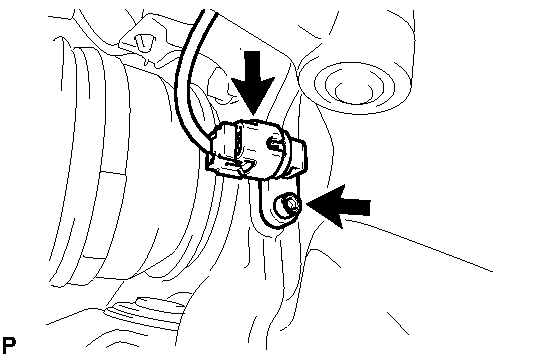

    Fig 1: Identifying Front Speed Sensor, Skid Control Sensor Wire & Bolt
    GTY201908Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the skid control sensor wire.
    2. Using a 5 mm hexagon wrench, remove the bolt and the front speed sensor.
      NOTE:
      • Do not attach any foreign matter to the sensor tip.
      • Ensure that no foreign matter enters the sensor installation part.
