Power Source (TMC Made): Notes

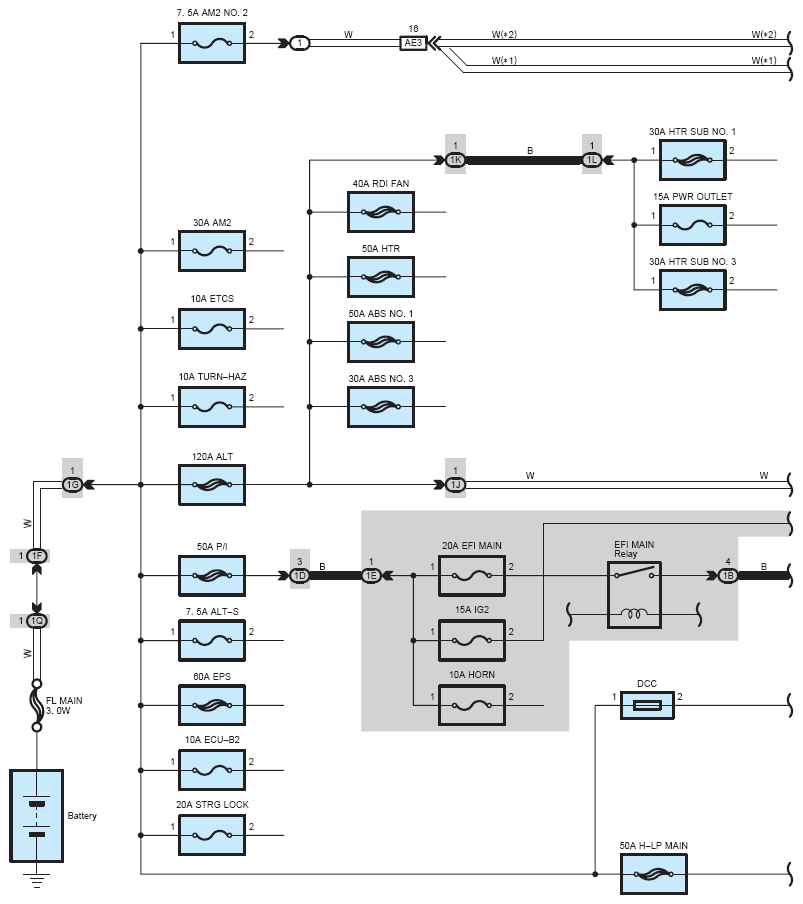

Fig 1: Power Source (TMC Made) - Circuit Diagram (1 Of 4)
G07551056Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

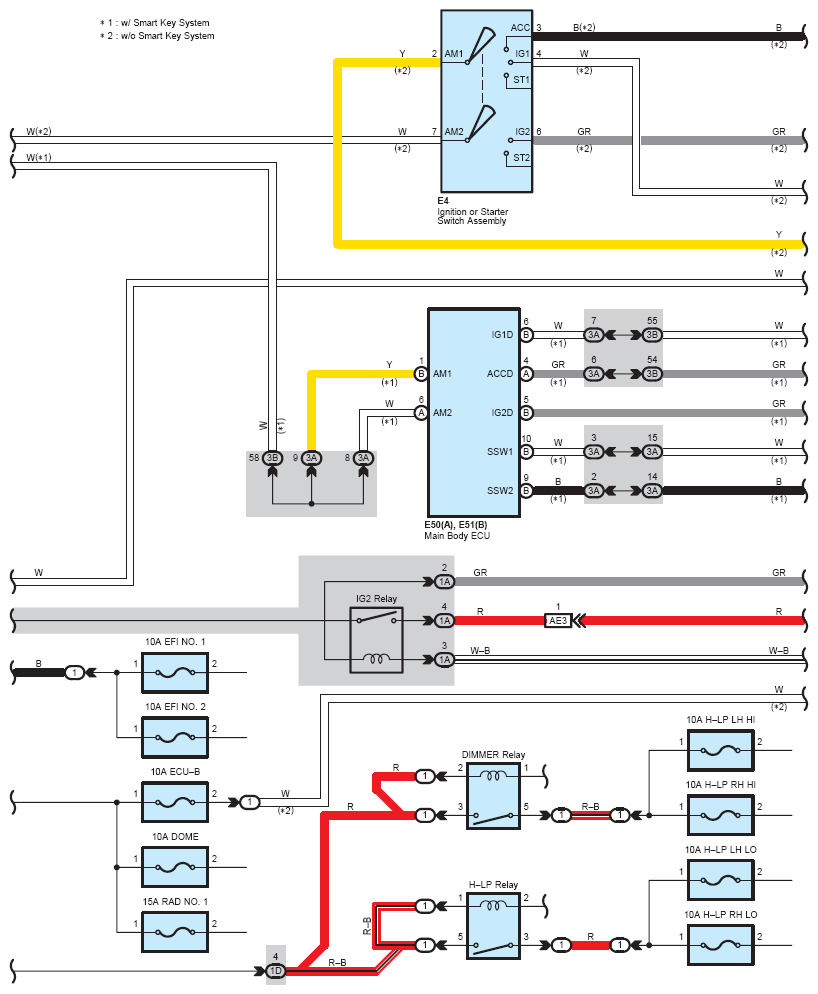

Fig 2: Power Source (TMC Made) - Circuit Diagram (2 Of 4)
G07551057Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

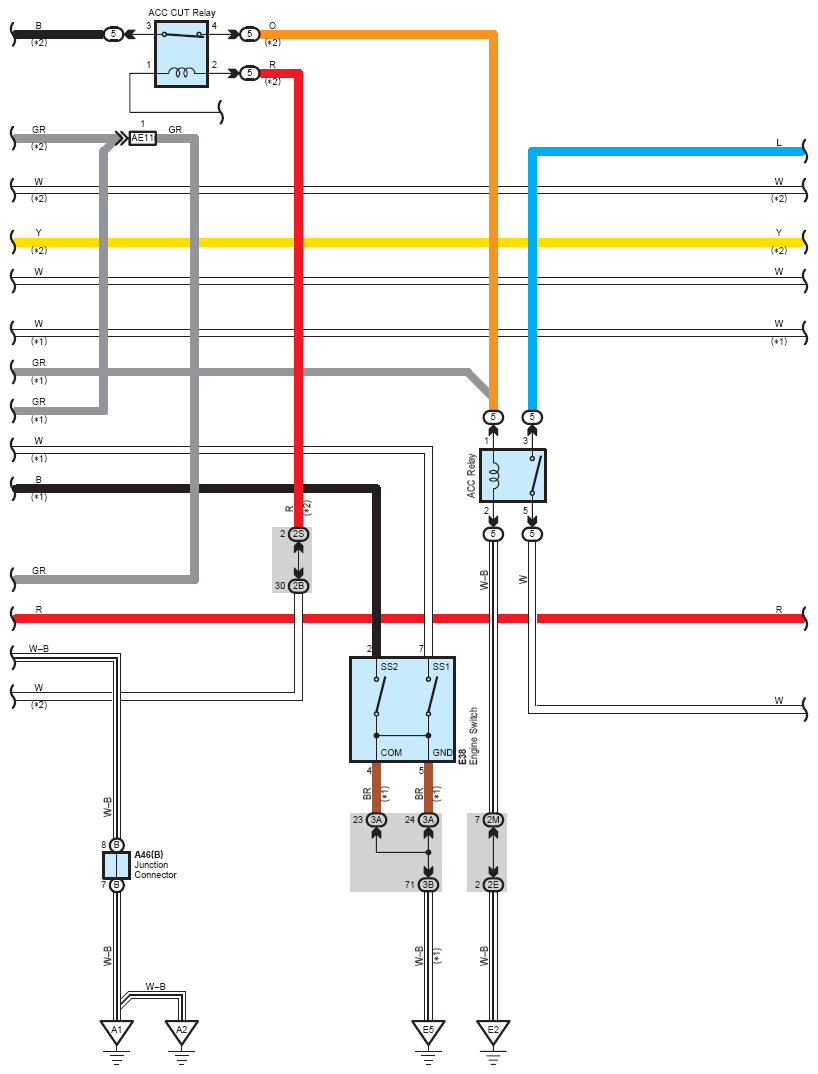

Fig 3: Power Source (TMC Made) - Circuit Diagram (3 Of 4)
G07551058Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

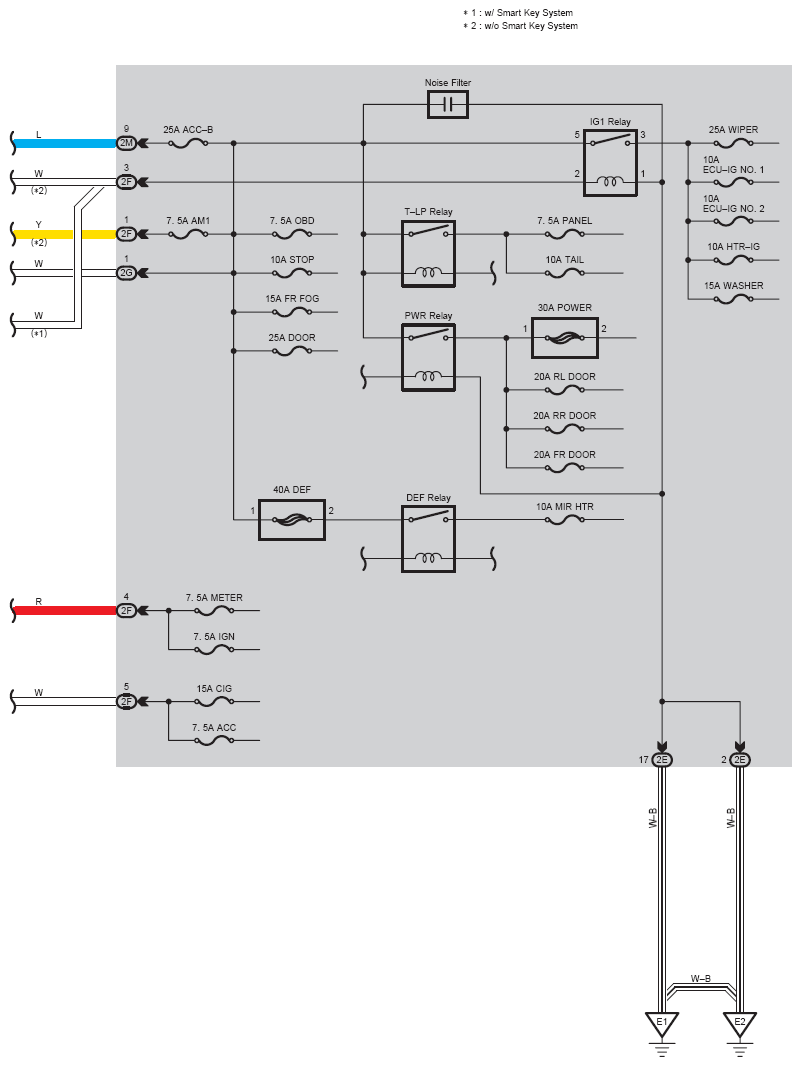

Fig 4: Power Source (TMC Made) - Circuit Diagram (4 Of 4)
G07551059Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
