Light Reminder (Except TMC Made): Notes

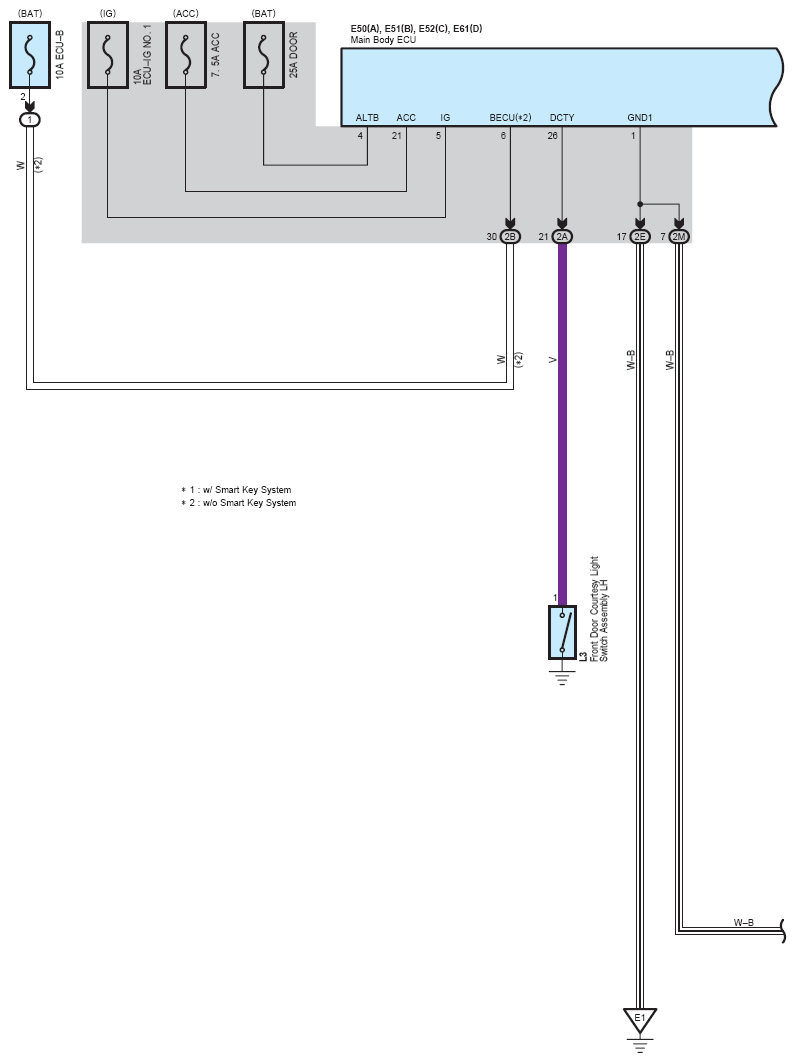

Fig 1: Light Reminder (Except TMC Made) - Circuit Diagram (1 Of 3)
G07551267Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

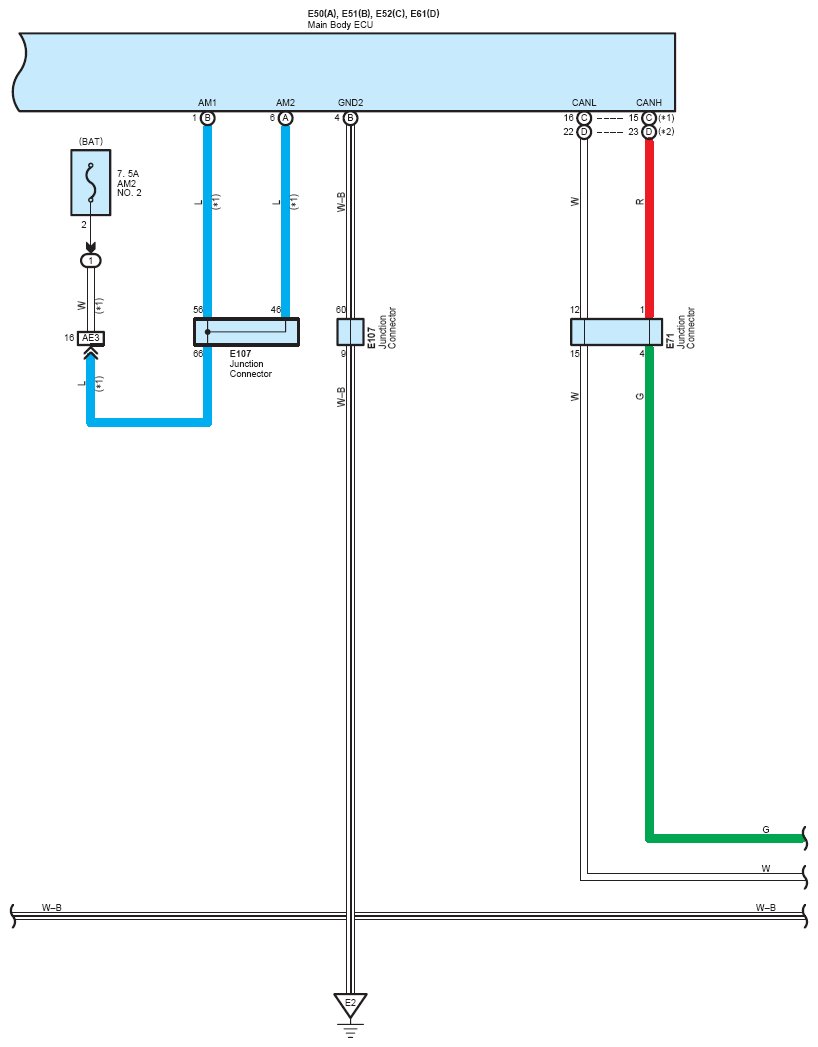

Fig 2: Light Reminder (Except TMC Made) - Circuit Diagram (2 Of 3)
G07551268Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

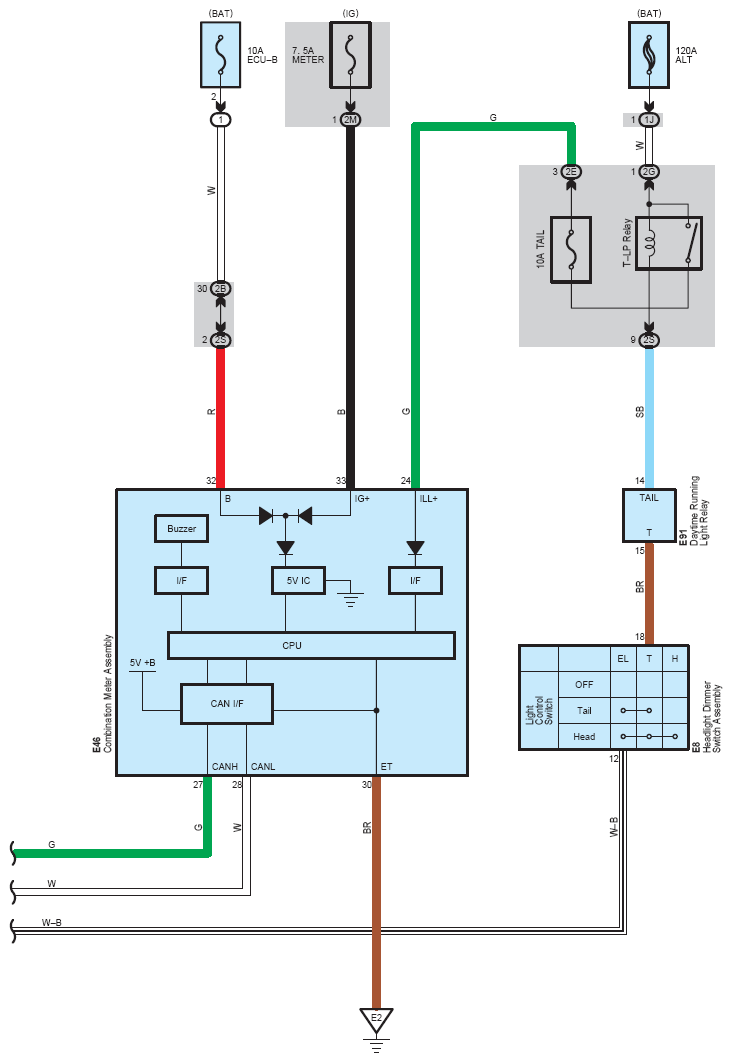

Fig 3: Light Reminder (Except TMC Made) - Circuit Diagram (3 Of 3)
G07551269Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
