Key Reminder (w/o Smart Key System) (TMC Made): Notes

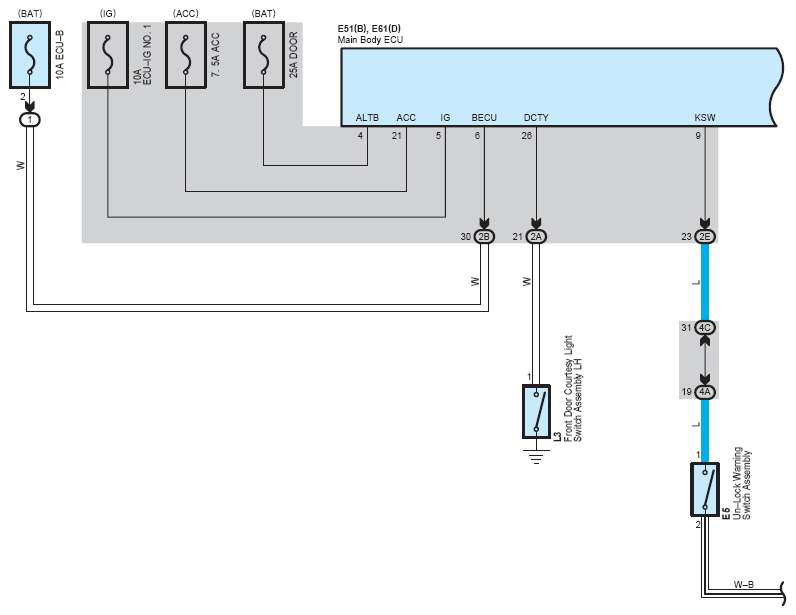

Fig 1: Key Reminder (W/O Smart Key System) (TMC Made) - Circuit Diagram (1 Of 2)
G07551116Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

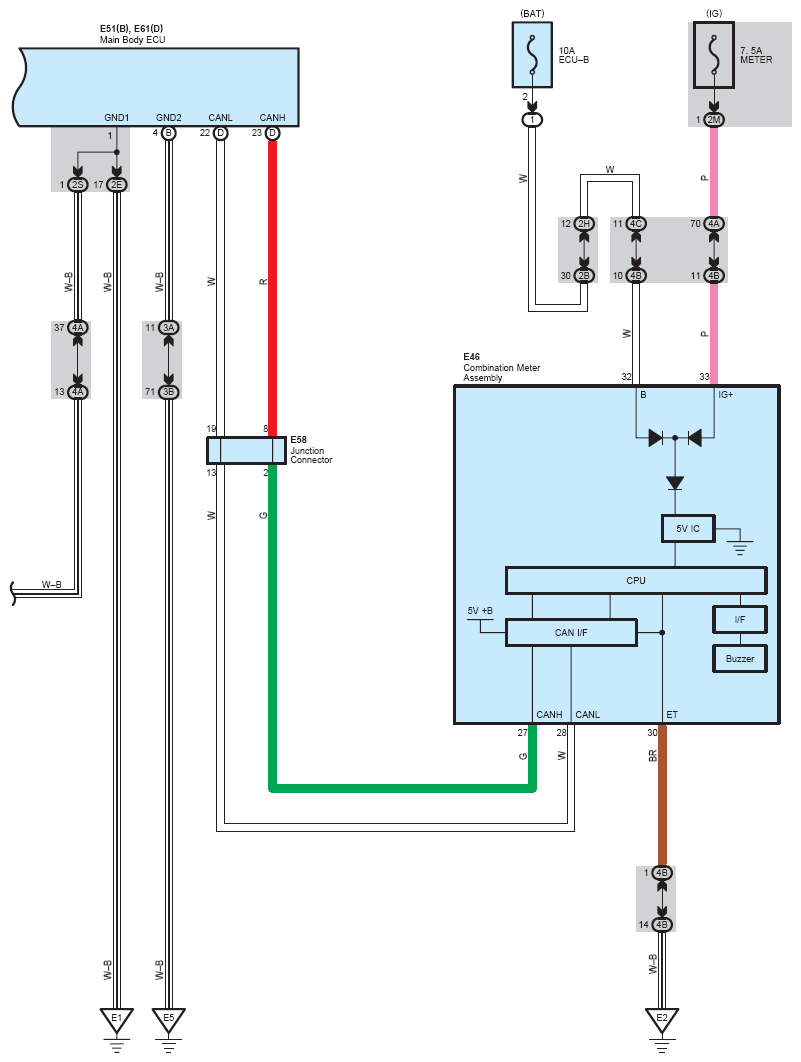

Fig 2: Key Reminder (W/O Smart Key System) (TMC Made) - Circuit Diagram (2 Of 2)
G07551117Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
