Headlight (Except TMC Made): Notes

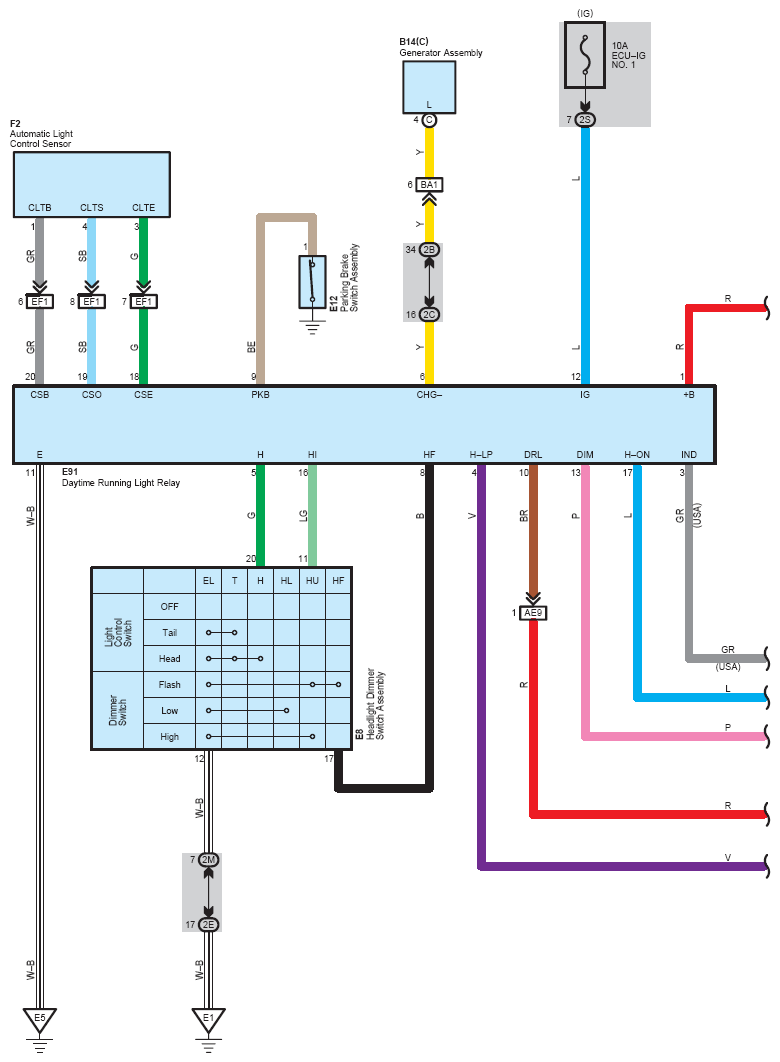

Fig 1: Headlight (Except TMC Made) - Circuit Diagram (1 Of 3)
G07551246Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

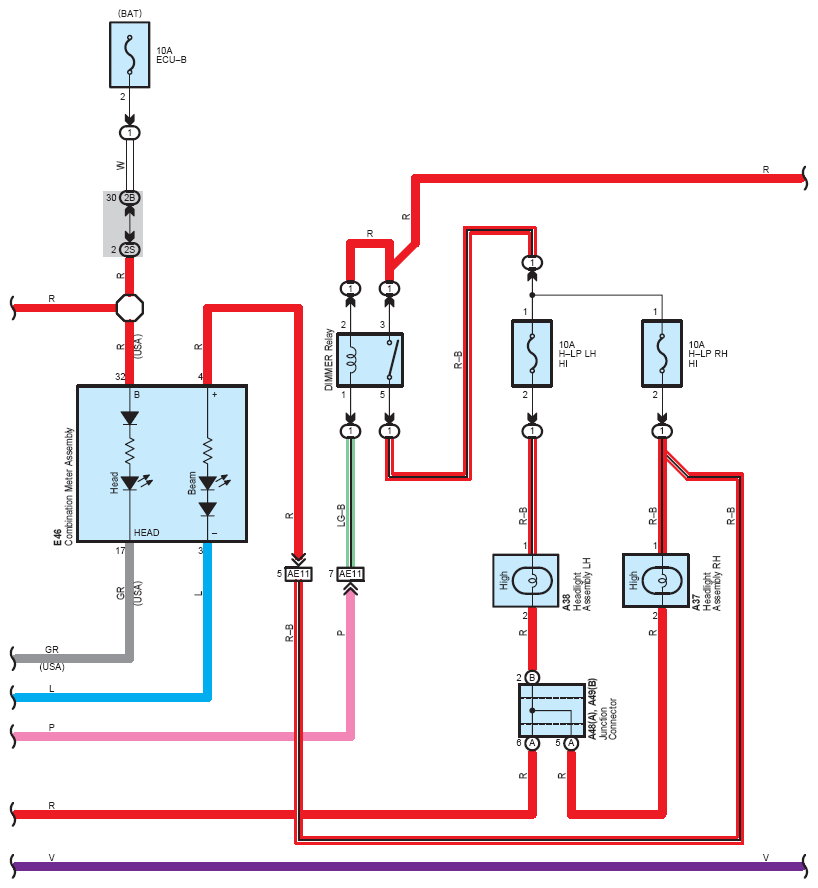

Fig 2: Headlight (Except TMC Made) - Circuit Diagram (2 Of 3)
G07551247Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

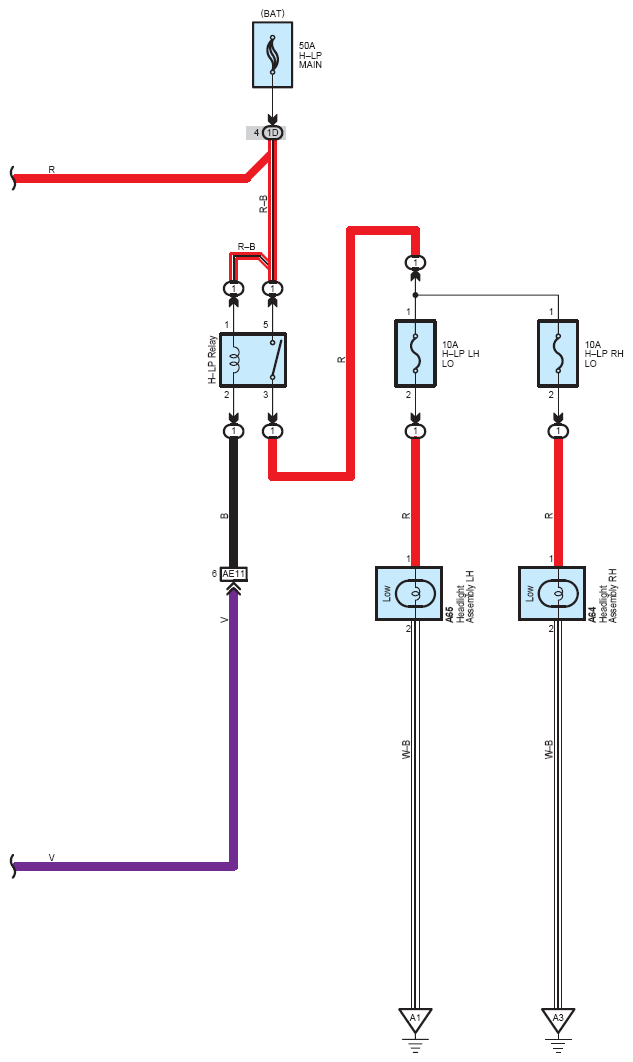

Fig 3: Headlight (Except TMC Made) - Circuit Diagram (3 Of 3)
G07551248Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
