Charging (TMC Made): Notes

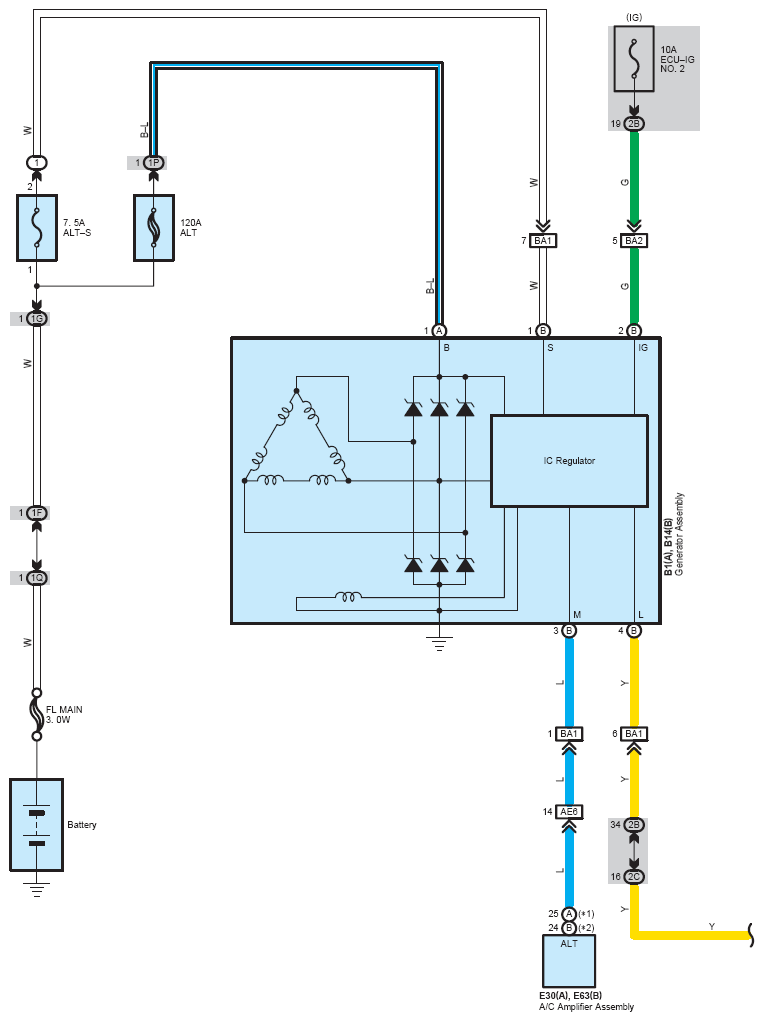

Fig 1: Charging (TMC Made) - Circuit Diagram (1 Of 2)
G07551078Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

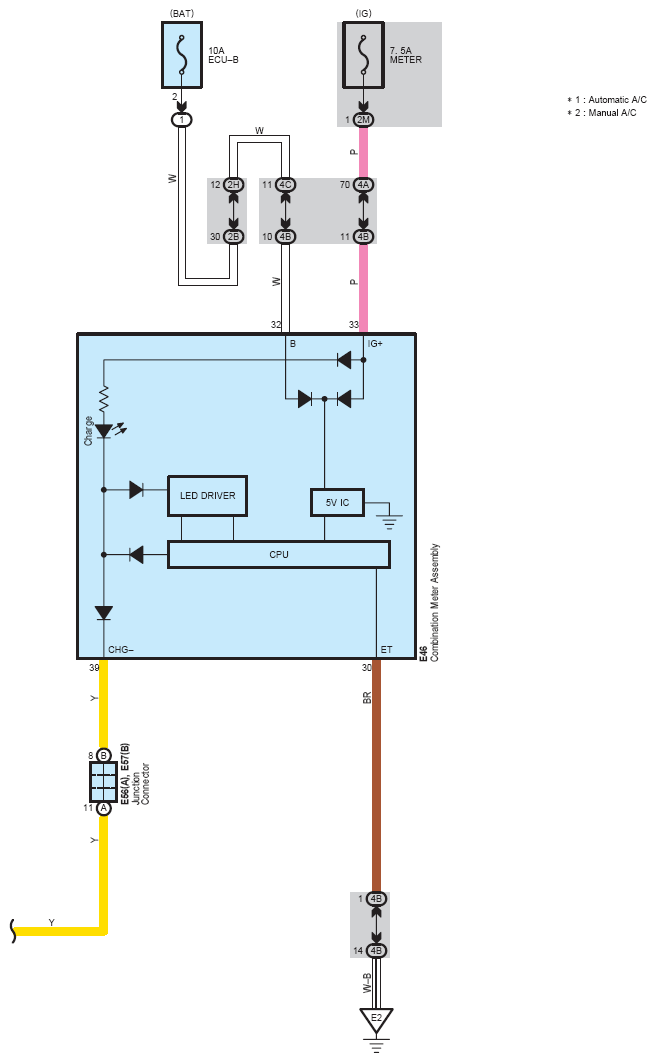

Fig 2: Charging (TMC Made) - Circuit Diagram (2 Of 2)
G07551079Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
