Charging (Except TMC Made): Notes

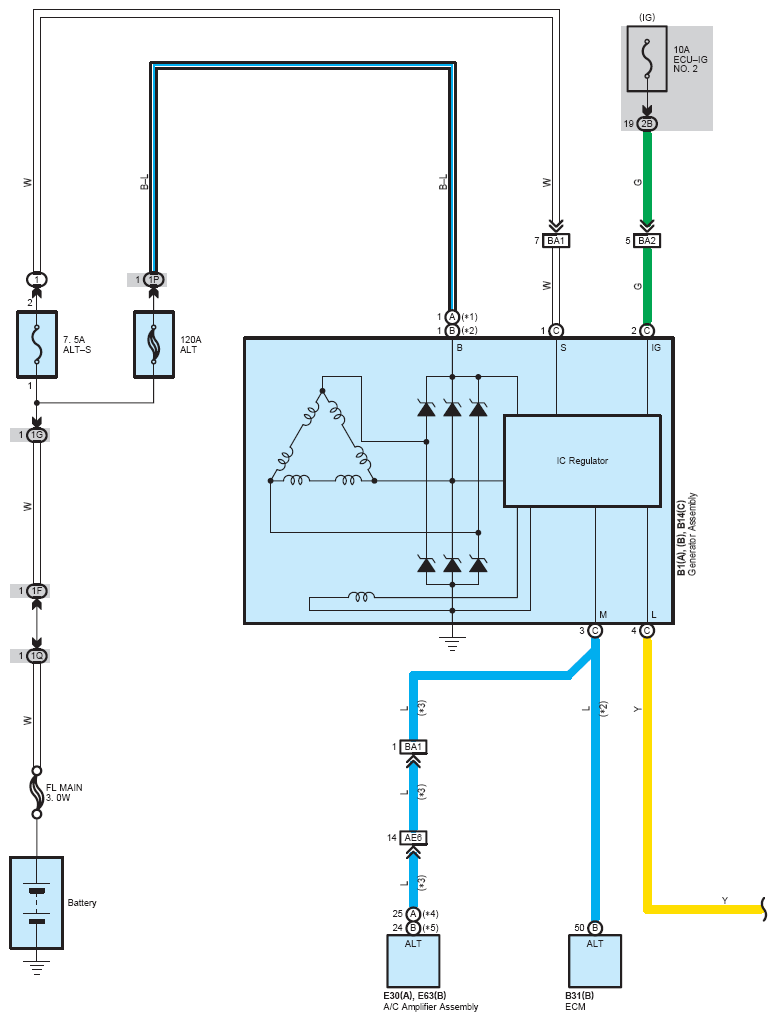

Fig 1: Charging (Except TMC Made) - Circuit Diagram (1 Of 2)
G07551217Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

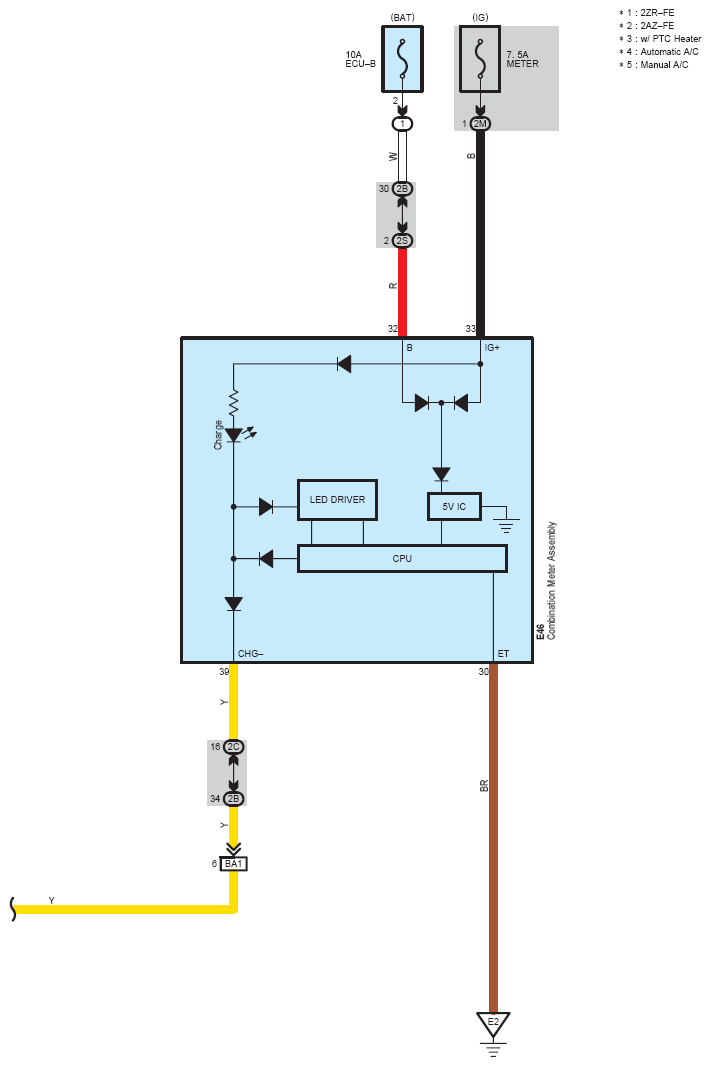

Fig 2: Charging (Except TMC Made) - Circuit Diagram (2 Of 2)
G07551218Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
