Sliding Roof (Except TMC Made): Notes

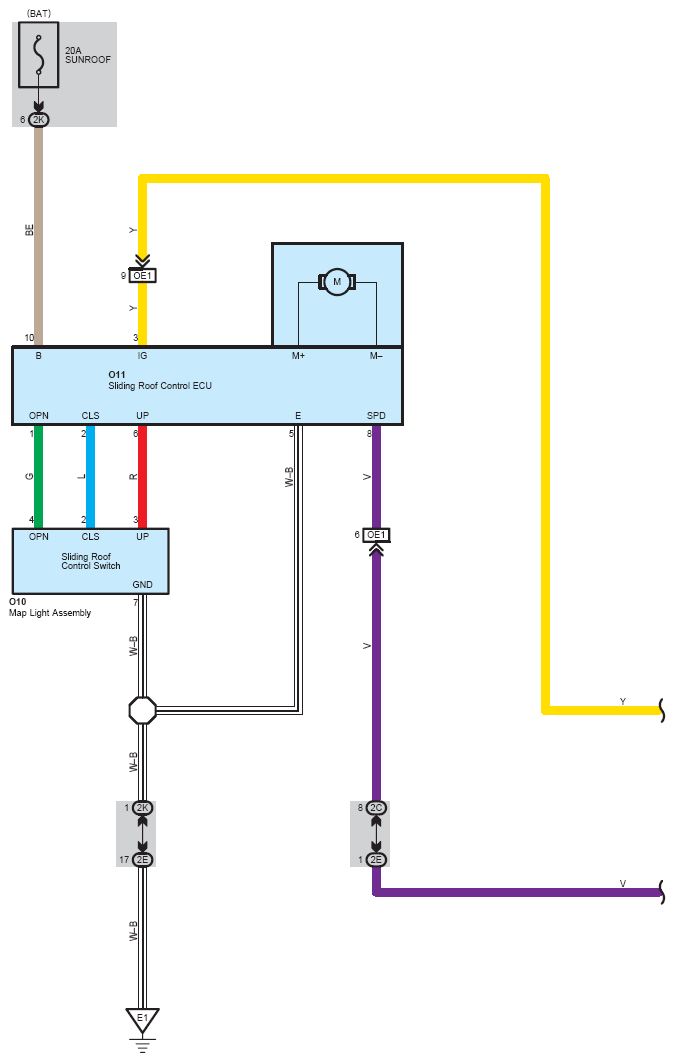

Fig 1: Sliding Roof (Except TMC Made) - Circuit Diagram (1 Of 4)
G07551304Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

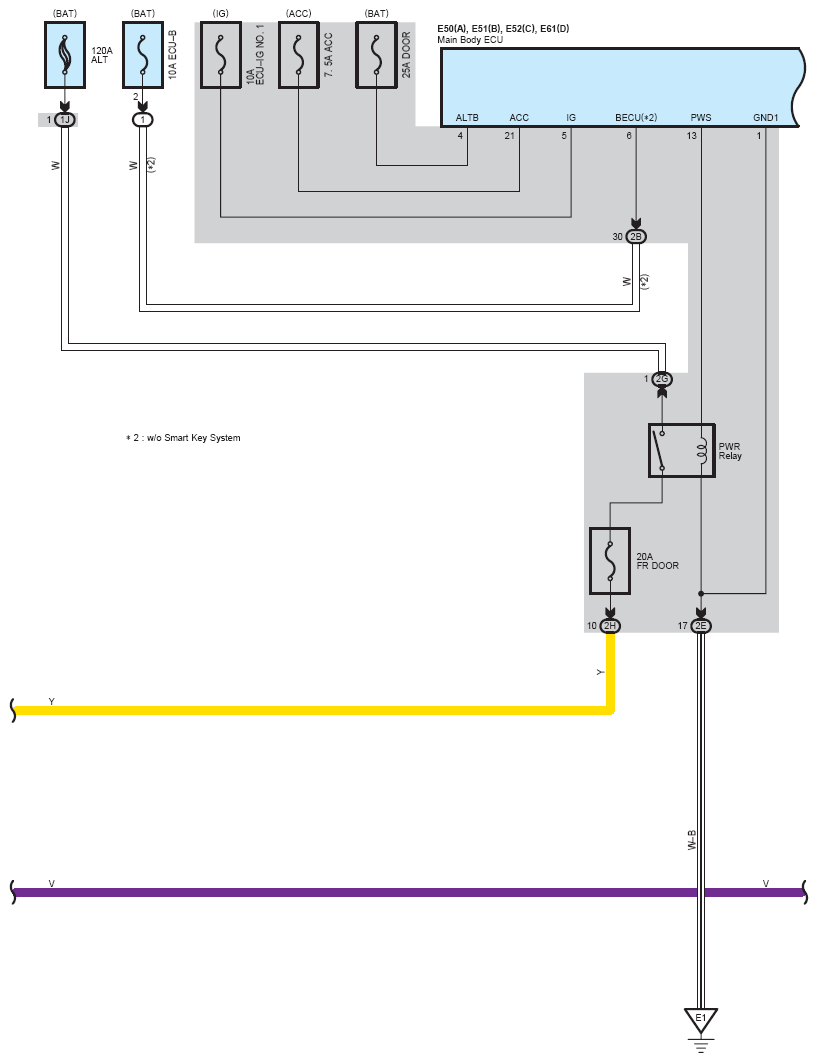

Fig 2: Sliding Roof (Except TMC Made) - Circuit Diagram (2 Of 4)
G07551305Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

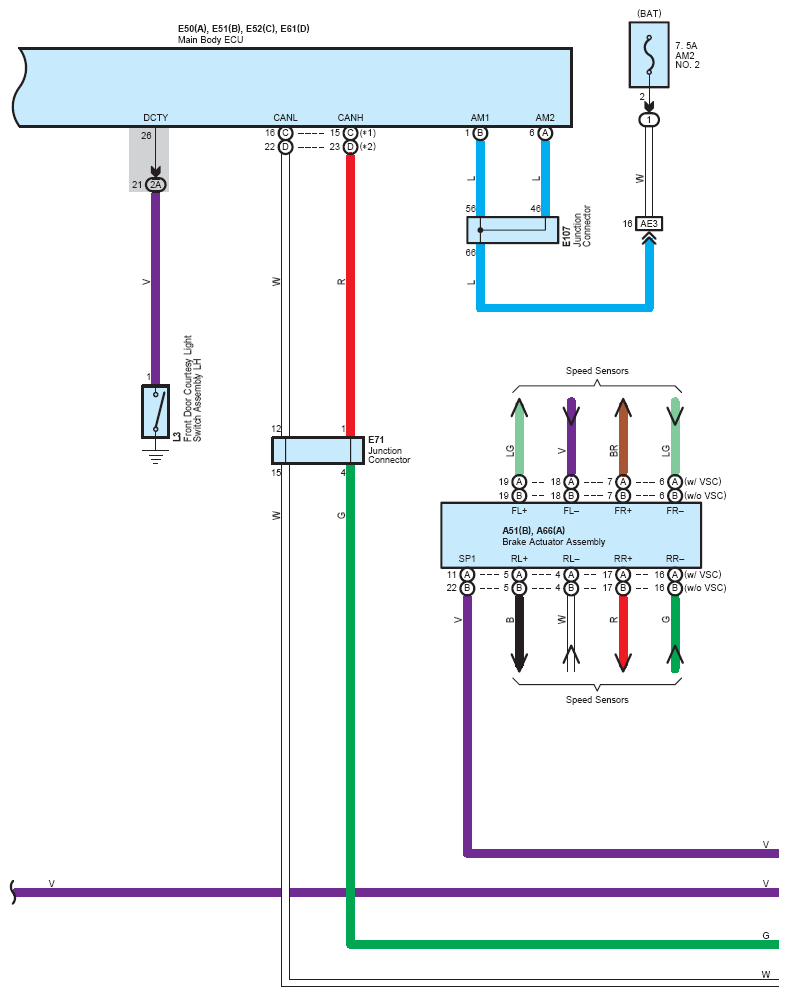

Fig 3: Sliding Roof (Except TMC Made) - Circuit Diagram (3 Of 4)
G07551306Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

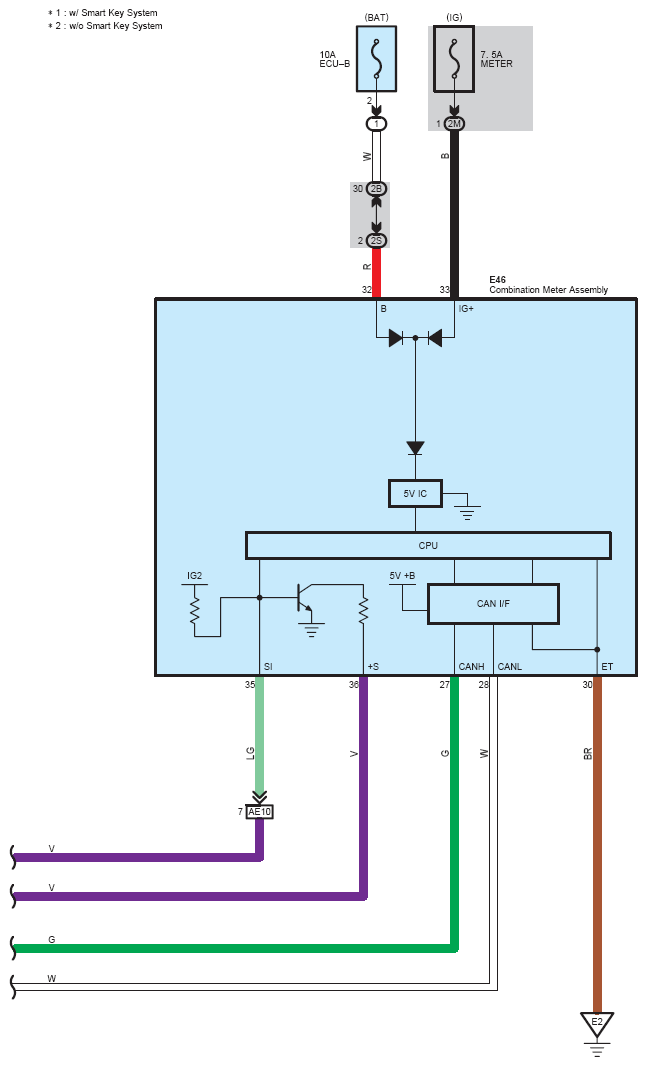

Fig 4: Sliding Roof (Except TMC Made) - Circuit Diagram (4 Of 4)
G07551307Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
