Engine Control (2AZ-FE) (Except TMC Made): Notes

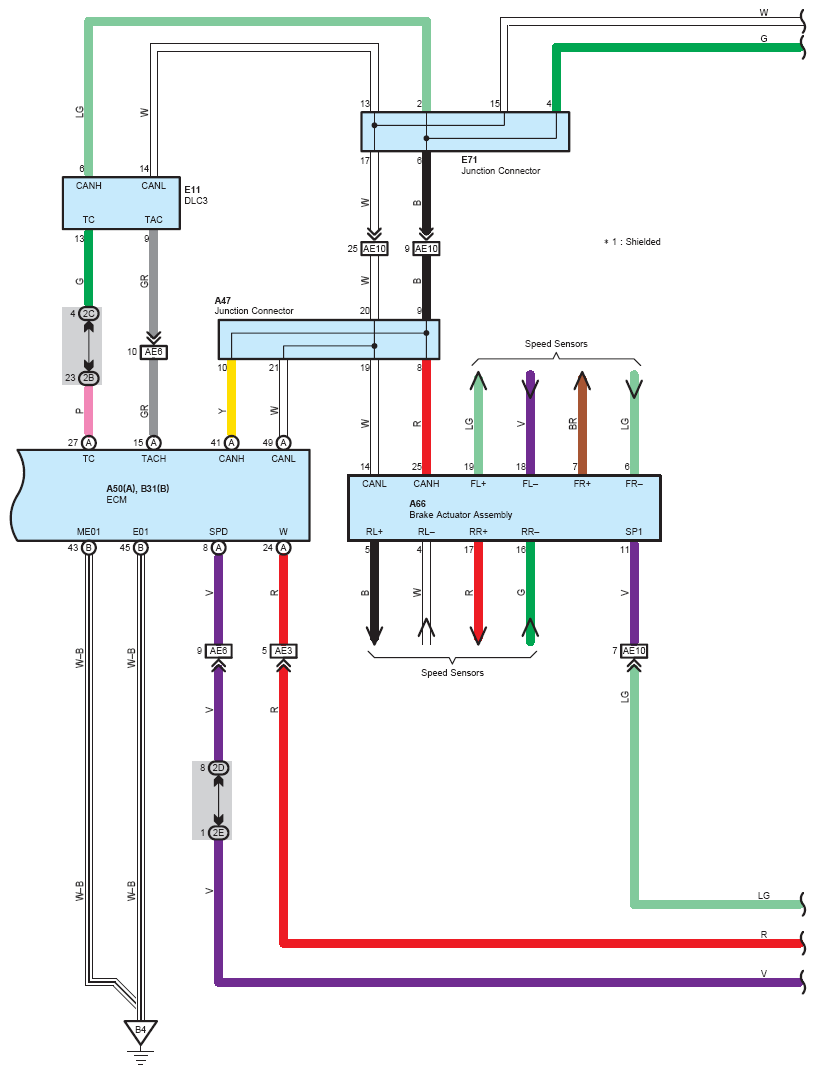

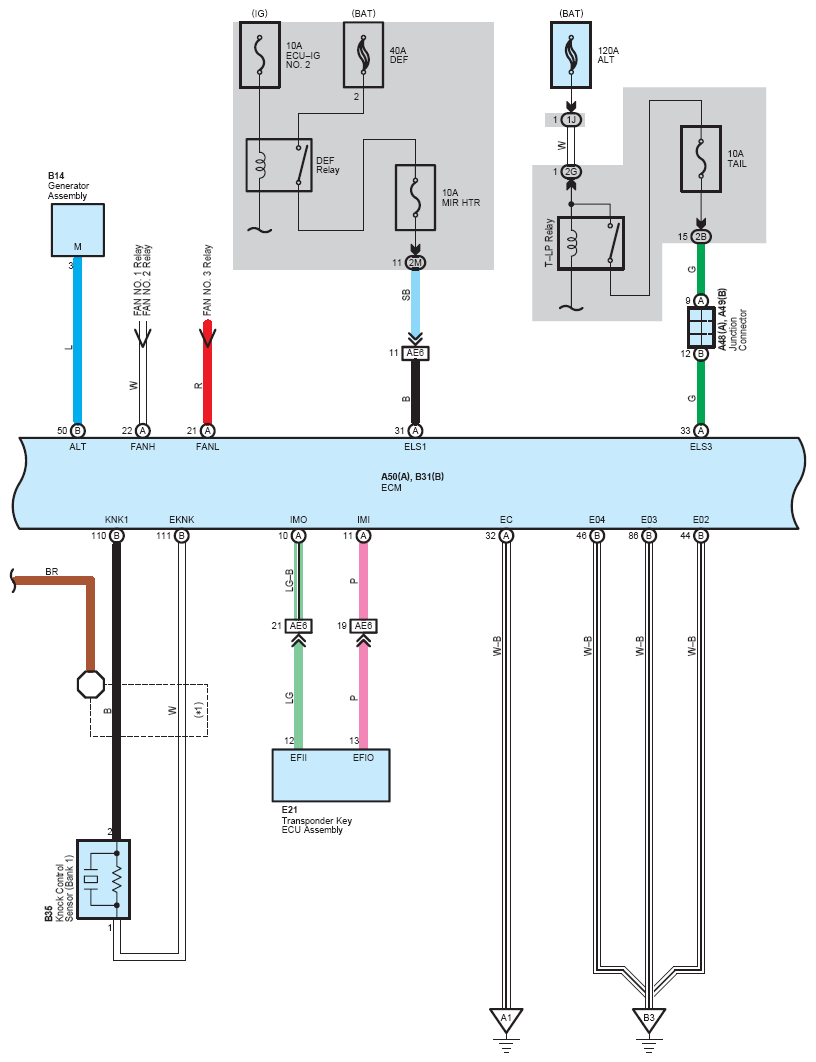

Fig 1: Engine Control [2Az-Fe] (Except TMC Made) - Circuit Diagram (1 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

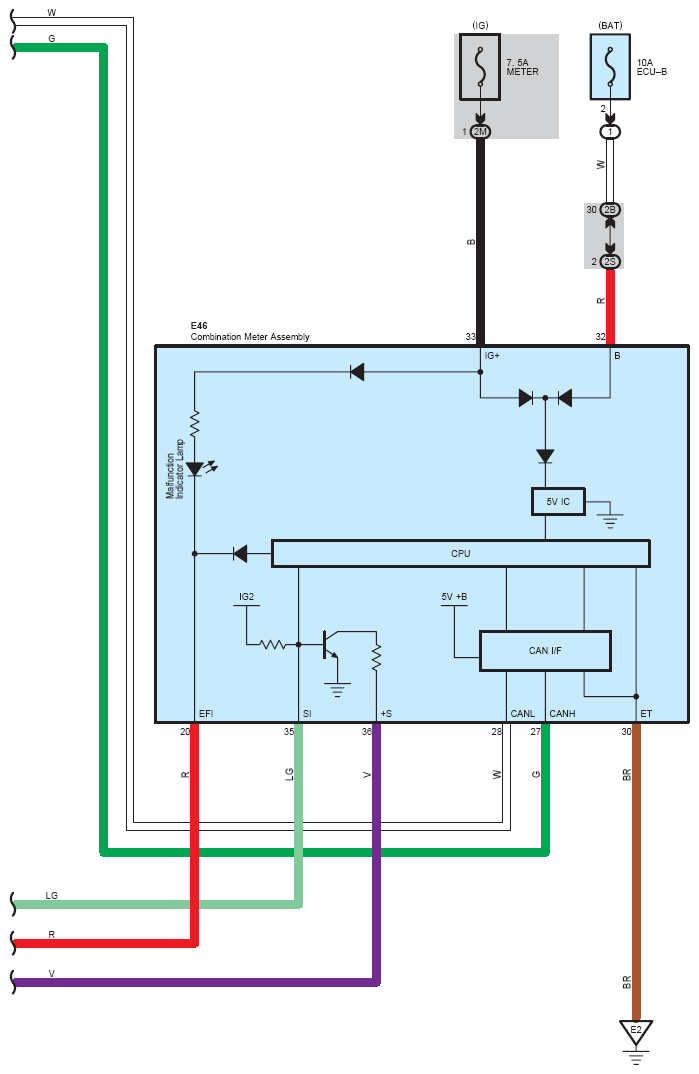

Fig 2: Engine Control [2Az-Fe] (Except TMC Made) - Circuit Diagram (2 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

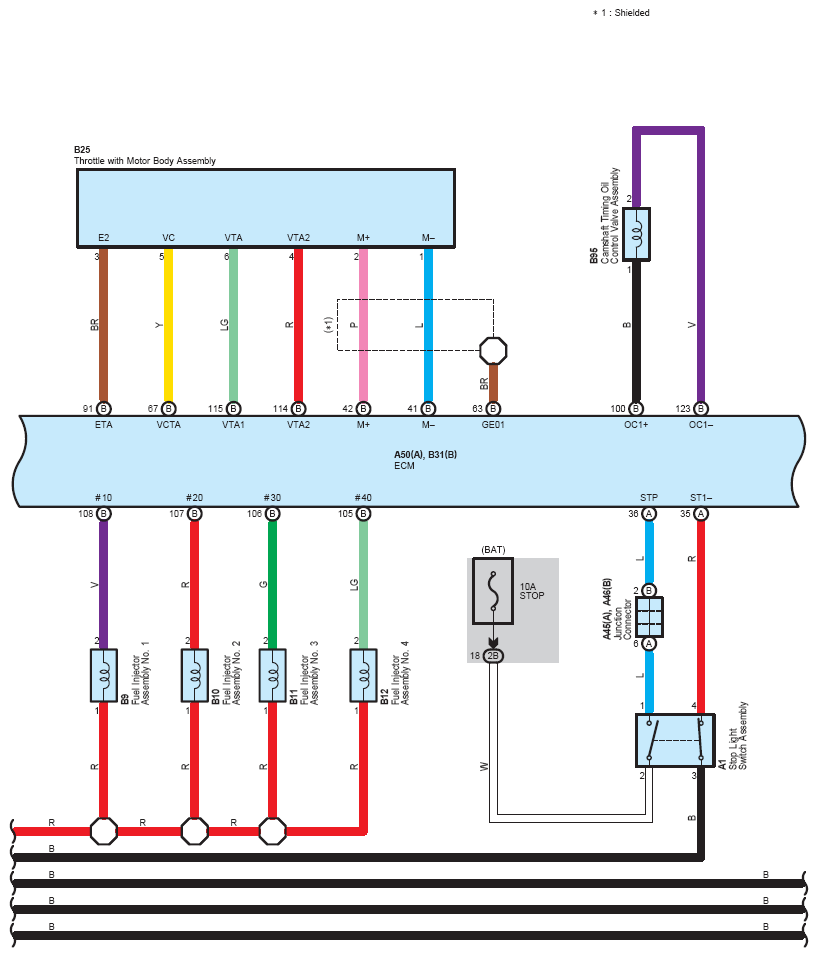

Fig 3: Engine Control [2Az-Fe] (Except TMC Made) - Circuit Diagram (3 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

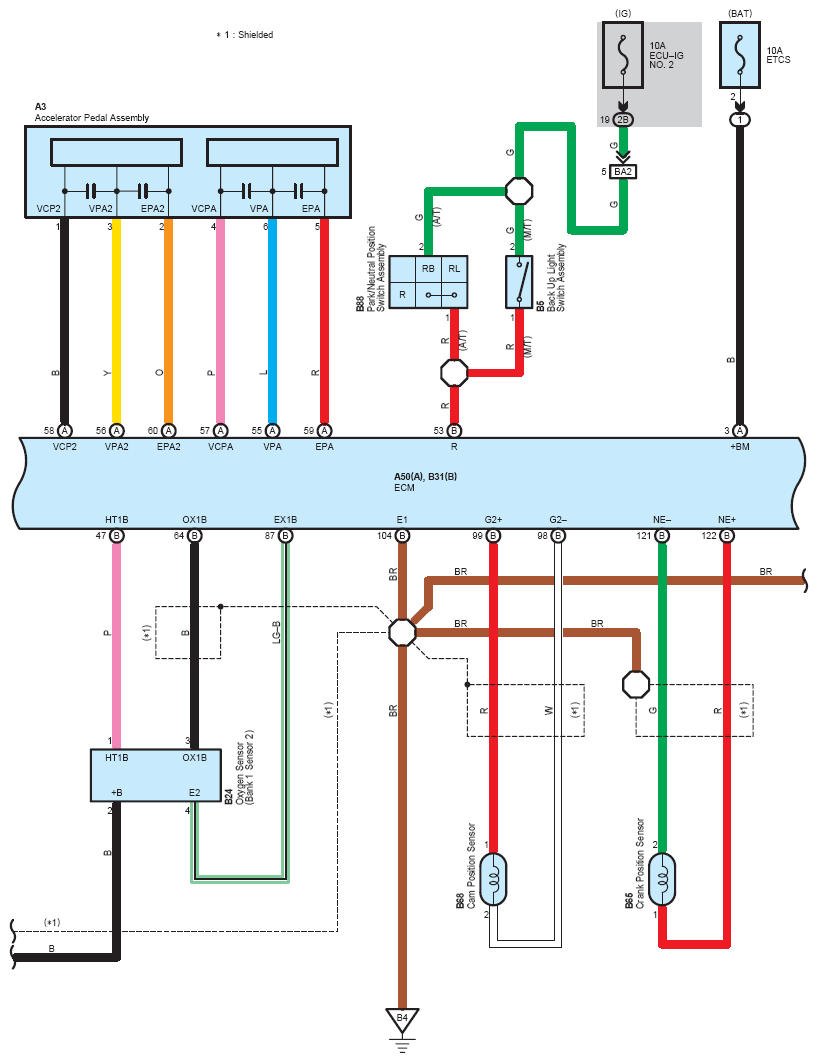

Fig 4: Engine Control [2Az-Fe] (Except TMC Made) - Circuit Diagram (4 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

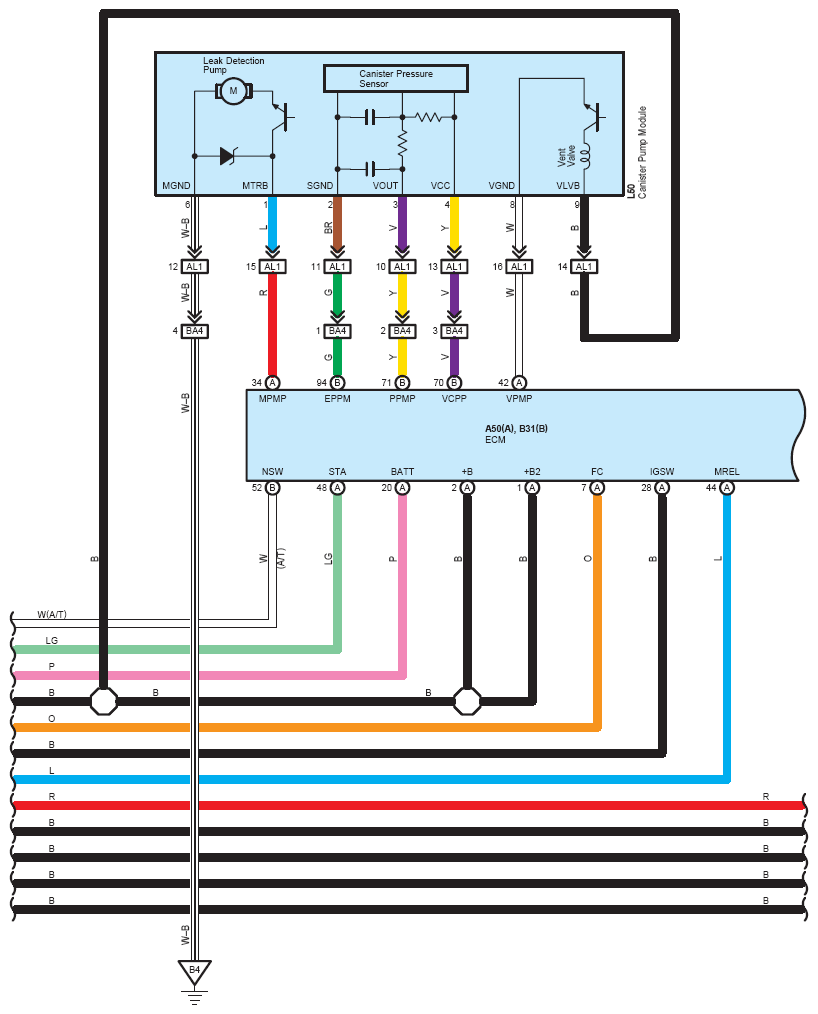

Fig 5: Engine Control [2Az-Fe] (Except TMC Made) - Circuit Diagram (5 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

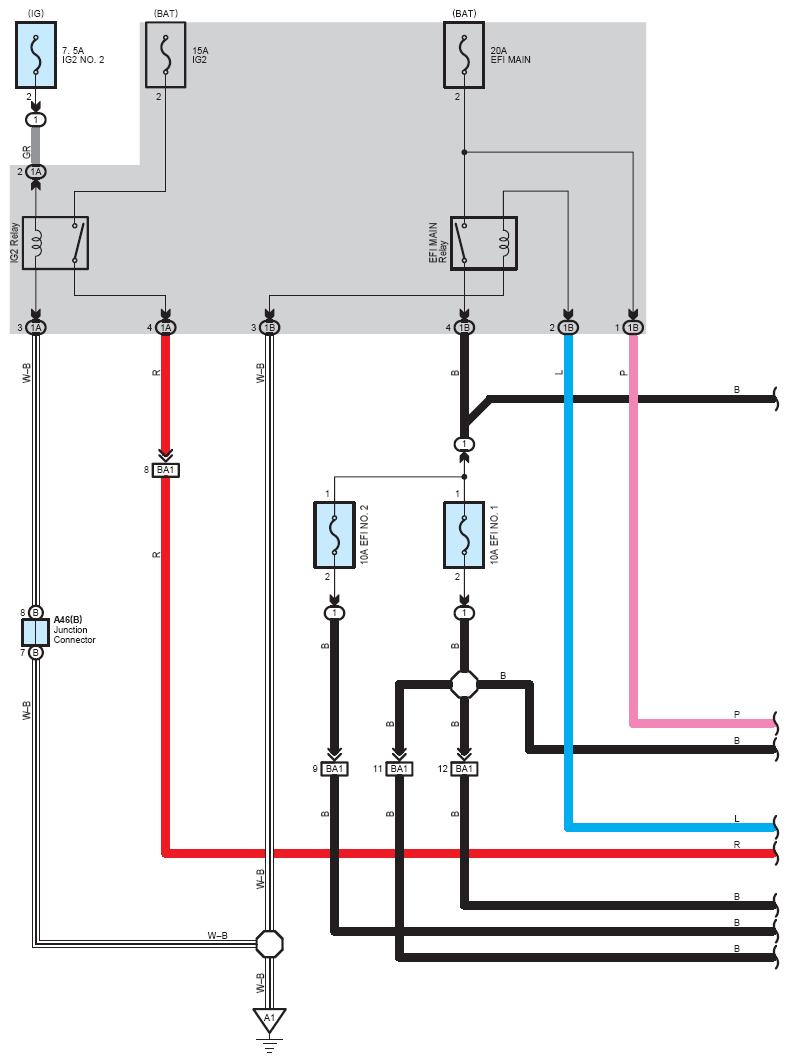

Fig 6: Engine Control [2Az-Fe] (Except TMC Made) - Circuit Diagram (6 Of 9)

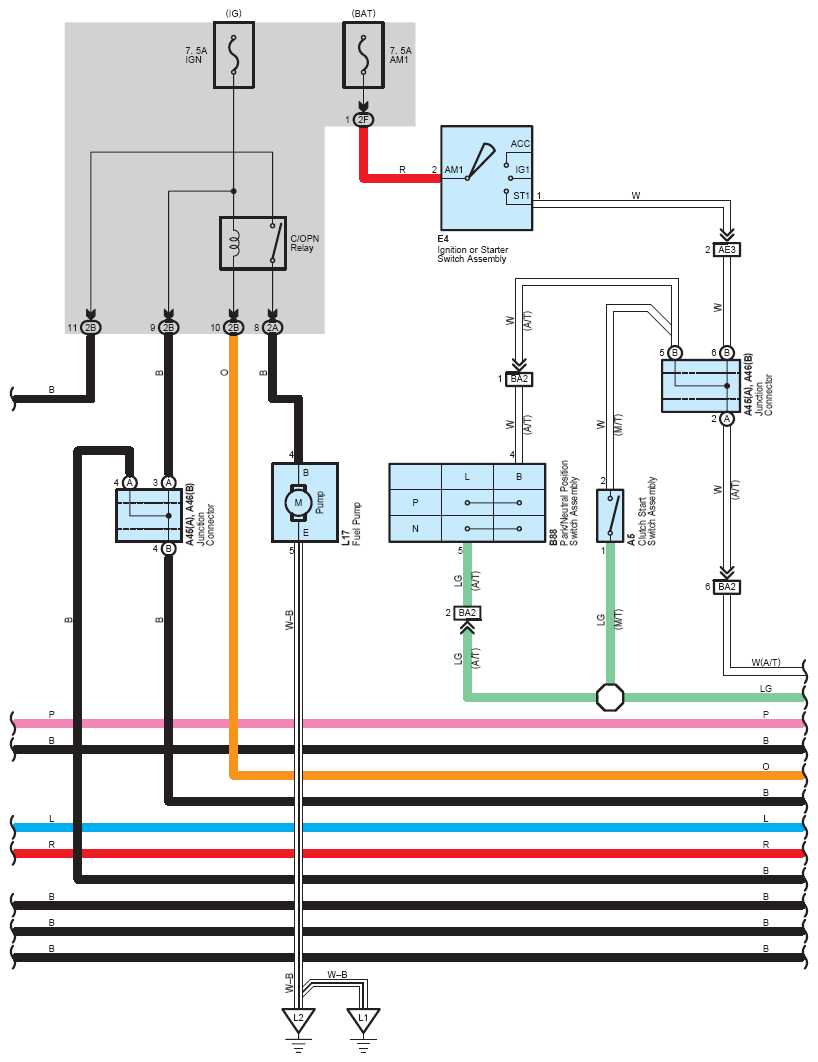

Fig 7: Engine Control [2Az-Fe] (Except TMC Made) - Circuit Diagram (7 Of 9)

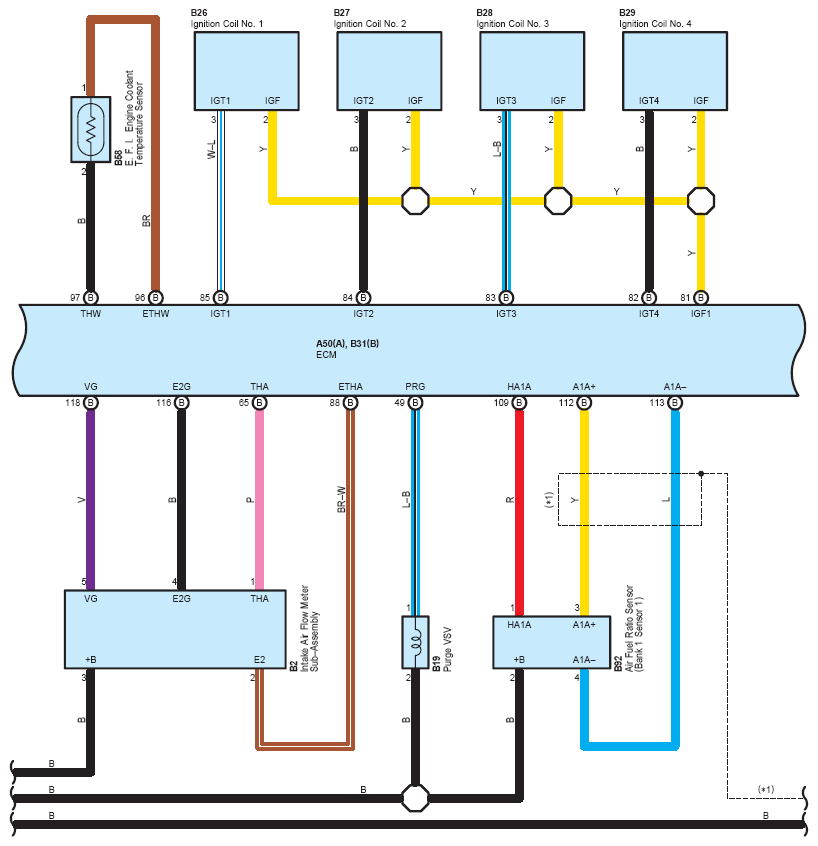

Fig 8: Engine Control [2Az-Fe] (Except TMC Made) - Circuit Diagram (8 Of 9)

Fig 9: Engine Control [2Az-Fe] (Except TMC Made) - Circuit Diagram (9 Of 9)
