Vehicle Identification And Serial Numbers

VEHICLE IDENTIFICATION NUMBER
1. The vehicle identification number is stamped on the vehicle body and on the certification label, as shown in the illustration.

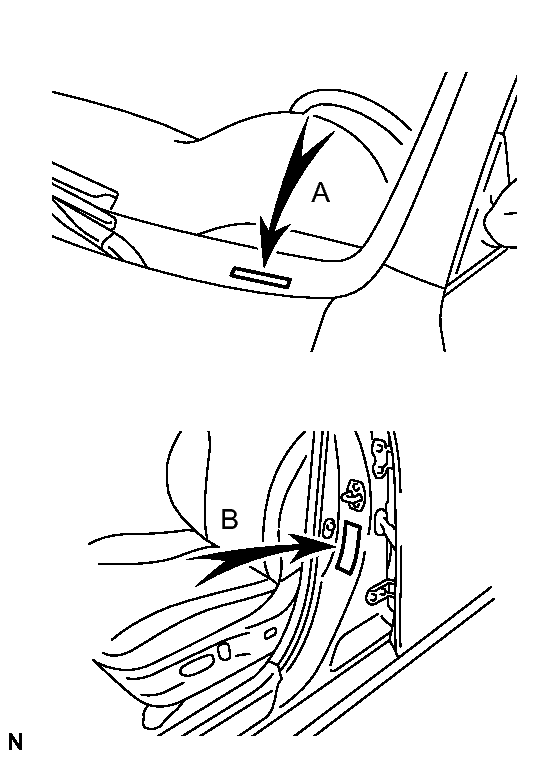

  Fig 1: Locating Vehicle Identification Number And Certification Label
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  A

  Vehicle Identification Number

  B

  Certification Label
ENGINE SERIAL NUMBER AND TRANSAXLE SERIAL NUMBER
1. The engine serial number is stamped on the cylinder block of the engine as shown in the illustration.

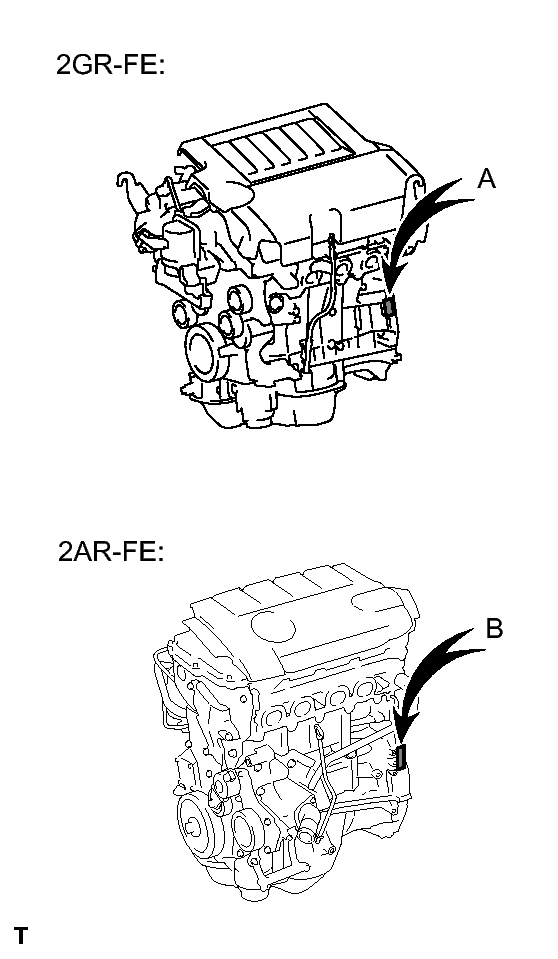

  Fig 2: Locating Engine Serial Number
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  A

  2GR-FE Engine Serial Number

  B

  2AR-FE Engine Serial Number
2. The transaxle serial number is stamped on the transaxle case as shown in the illustration.

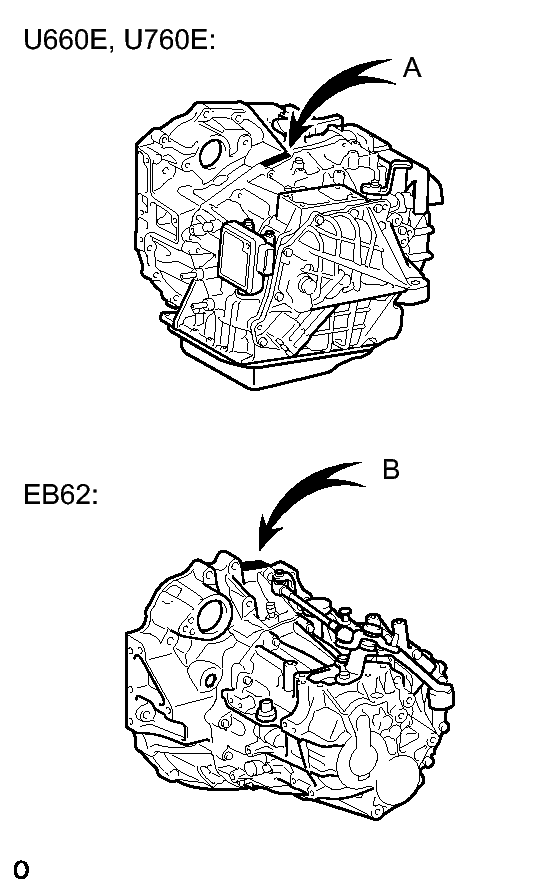

  Fig 3: Locating Transaxle Serial Number
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  A

  U660E, U760E Transaxle Serial Number

  B

  EB62 Transaxle Serial Number
