Throttle Body: Components: Illustration

Fig 1: Identifying Throttle Body Replacement Components With Torque Specifications (1 of 2)
GTY183148Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

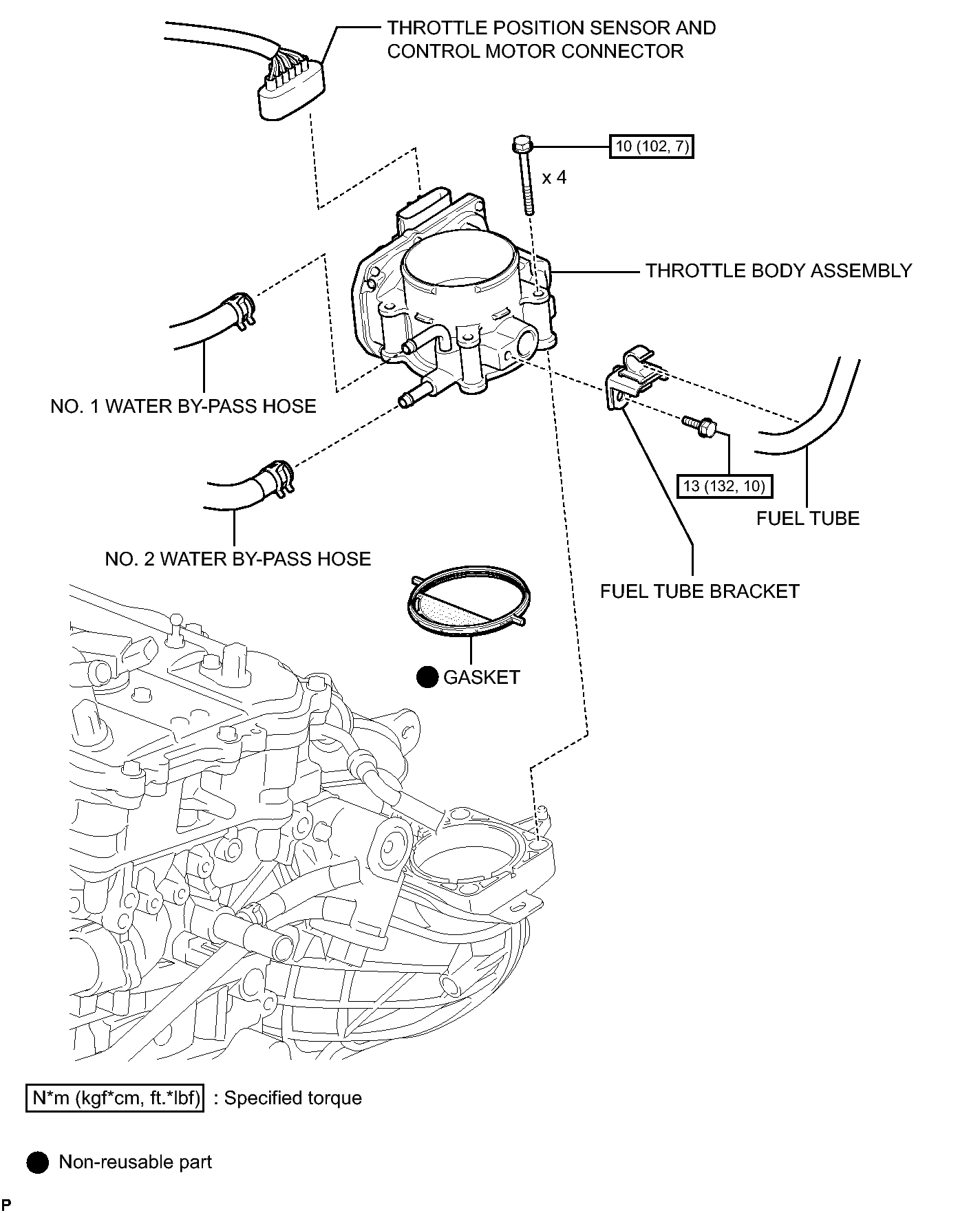

Fig 1: Identifying Throttle Body Replacement Components With Torque Specifications (2 of 2)
GTY181751Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
