Throttle Body: Inspection: Inspection

  1. INSPECT THROTTLE BODY ASSEMBLY

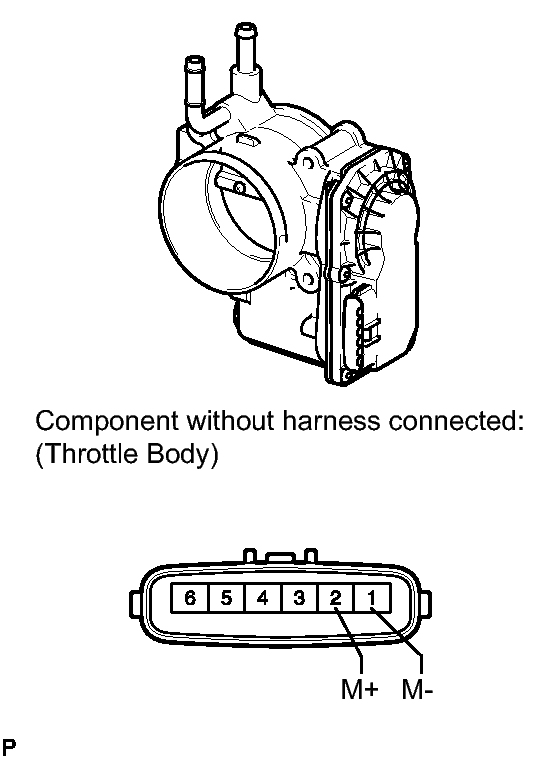

    Fig 1: Resistance On Throttle Body Assembly
    GTY170991Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Check that the throttle valve opens and closes smoothly.
    2. Check that there is no sludge accumulated around the throttle body.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      1 (M-) - 2 (M+) 20°C (68°F) 0.3 to 100 Ω

      If the result is not as specified, replace the throttle body assembly.
