Cruise Control System: Components: Illustration

WARNING: This page is about a different car, the 2009 Lexus GS 450h. However, it is still accessible from the selected car via links, so may be relevant.

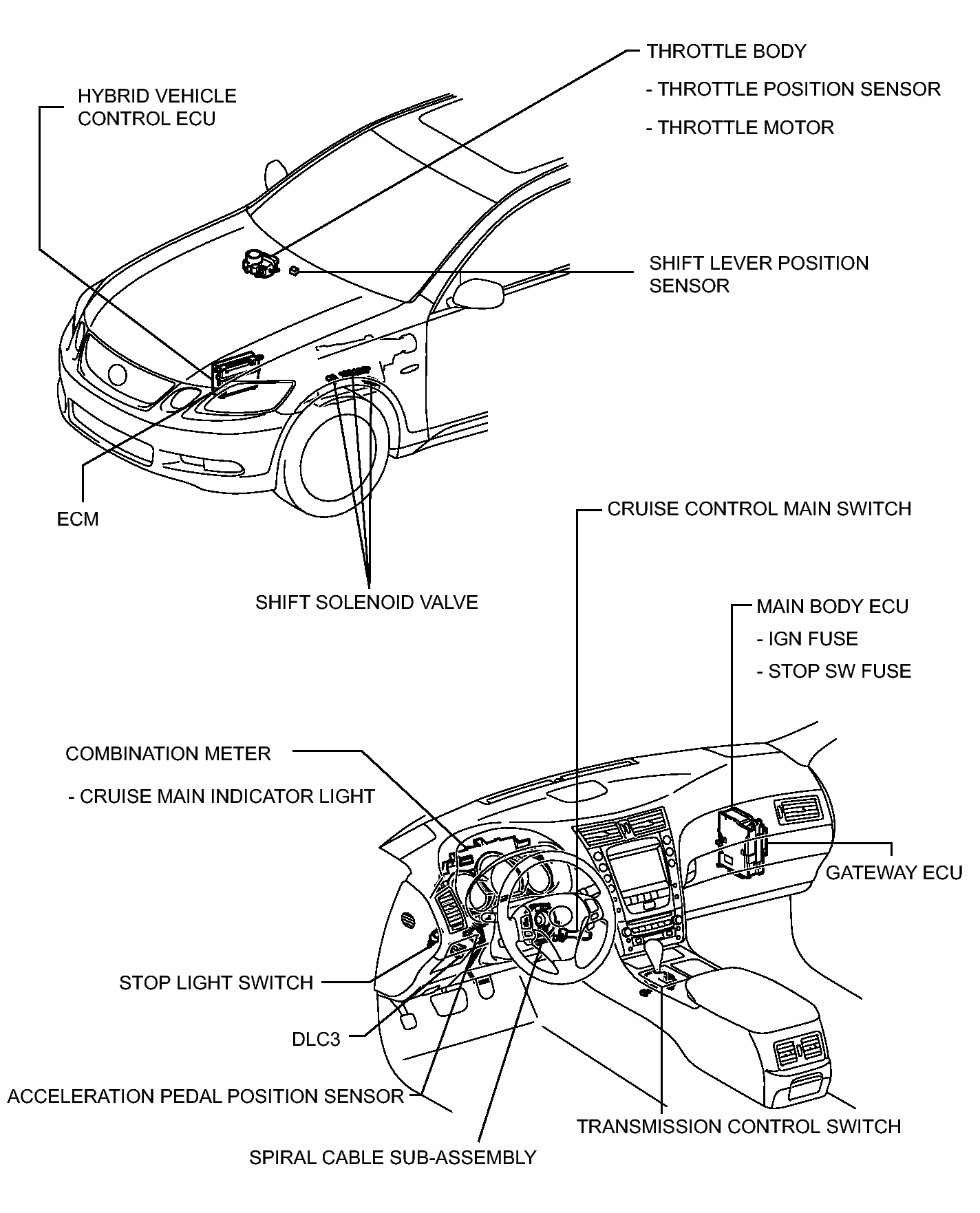

Fig 1: Identifying Cruise Control System Replacement Components
GTY152213Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
