Combination Meter: Installation: Installation

WARNING: This page is about a different car, the 2009 Lexus GS 450h. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL COMBINATION METER GLASS
1. Engage the 7 claws to install the combination meter glass.

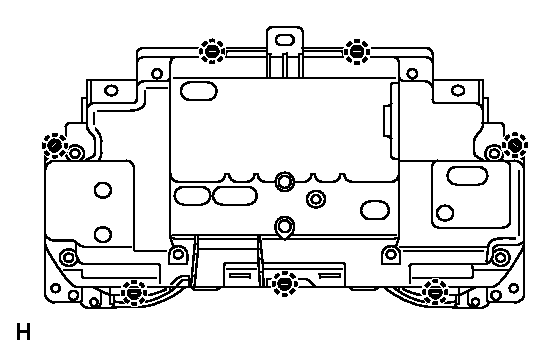

  Fig 1: Identifying Glass Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the combination meter glass's wire harness with the clamps.

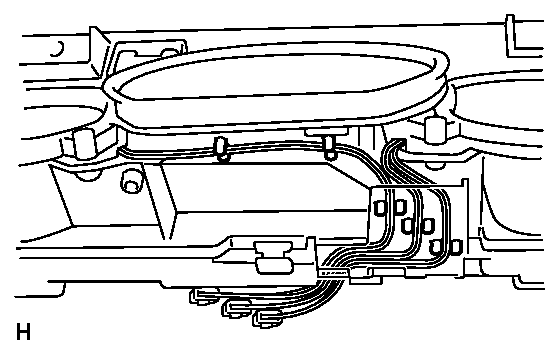

  Fig 2: Identifying Combination Meter Glass Wire Harness With Clamps
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Connect the 3 connectors.

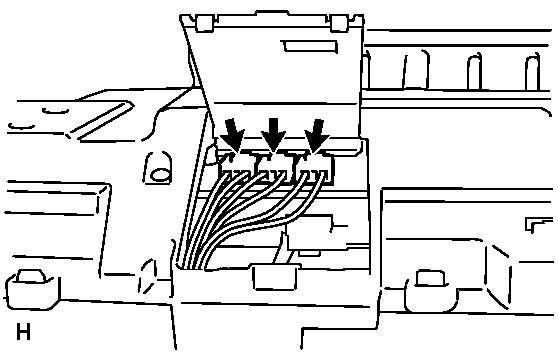

  Fig 3: Locating Combination Meter Connectors
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Close the cover and engage the 2 claws.

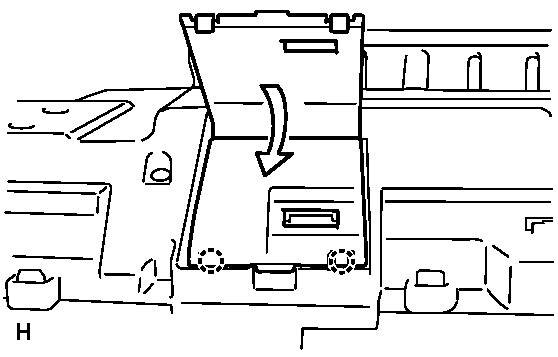

  Fig 4: Closing Cover And Attaching Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL COMBINATION METER ASSEMBLY
1. Connect the connector.

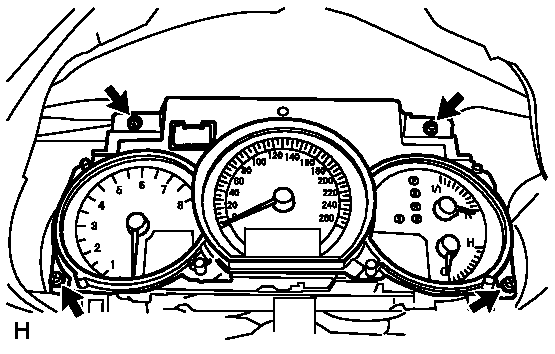

  Fig 5: Locating Combination Meter Mounting Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the combination meter assembly with the 4 screws.
INSTALL INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY
1. Connect the connector.

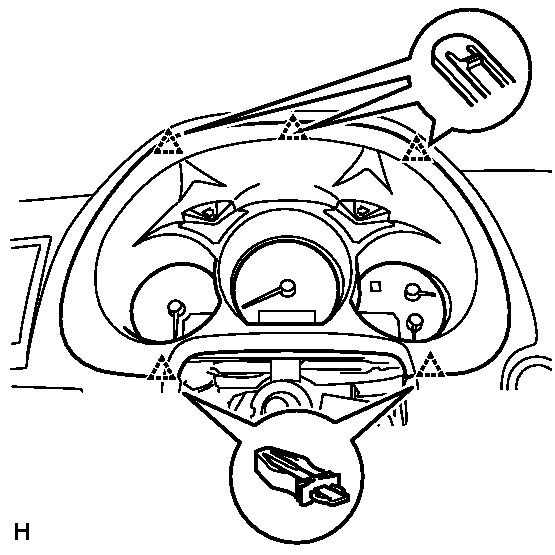

  Fig 6: Identifying Cluster Finish Panel Clips
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Engage the 5 clips to install the instrument cluster finish panel sub-assembly.
INSTALL UPPER STEERING COLUMN COVER . Refer to INSTALLATION - Step 11
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected. Refer to INITIALIZATION .
