Yaw Rate And Acceleration Sensor: Installation: Installation

WARNING: This page is about a different car, the 2009 Lexus GS 450h. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL YAW RATE SENSOR
1. Install the sensor with the 2 bolts.

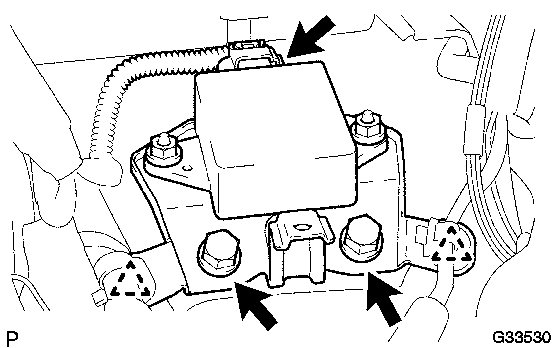

  Fig 1: Locating Yaw Rate Sensor and Sensor Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 15 N*m (153 kgf*cm, 11 ft.*lbf)
  NOTE:
  - Do not damage the sensor.
  - Make sure that the sensor is installed securely.
2. Install the 2 wire harness clamps.
3. Connect the sensor connector.
INSTALL NO. 1 CONSOLE BOX DUCT
1. Install the No. 1 duct with the clip.

  Fig 2: Identifying Console Box No. 1 Duct With Clip
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL NO. 2 CONSOLE BOX DUCT
1. Install the No. 2 duct with the 2 clips.

  Fig 3: Locating Console Box No. 2 Duct Clips
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL CONSOLE BOX . Refer to INSTALLATION - Step 1
INSTALL CONSOLE BOX REGISTER ASSEMBLY . Refer to INSTALLATION - Step 2
INSTALL CONSOLE BOX PLATE . Refer to INSTALLATION - Step 3
INSTALL INSTRUMENT PANEL FINISH PANEL END LH . Refer to INSTALLATION - Step 4
INSTALL INSTRUMENT PANEL FINISH PANEL END RH . Refer to INSTALLATION - Step 5
INSTALL CONSOLE UPPER PANEL ASSEMBLY . Refer to INSTALLATION - Step 6
INSTALL FRONT CONSOLE UPPER PANEL GARNISH . Refer to INSTALLATION - Step 22
PERFORM YAW RATE SENSOR ZERO POINT CALIBRATION
1. Perform the yaw rate sensor zero point calibration. Refer to CALIBRATION .
CHECK YAW RATE SENSOR SIGNAL
1. Check the yaw rate sensor signal. Refer to TEST MODE PROCEDURE .
