Engine Control System (2AR-FE) (Service Information) (Except Hybrid): ECM: Components: Illustration

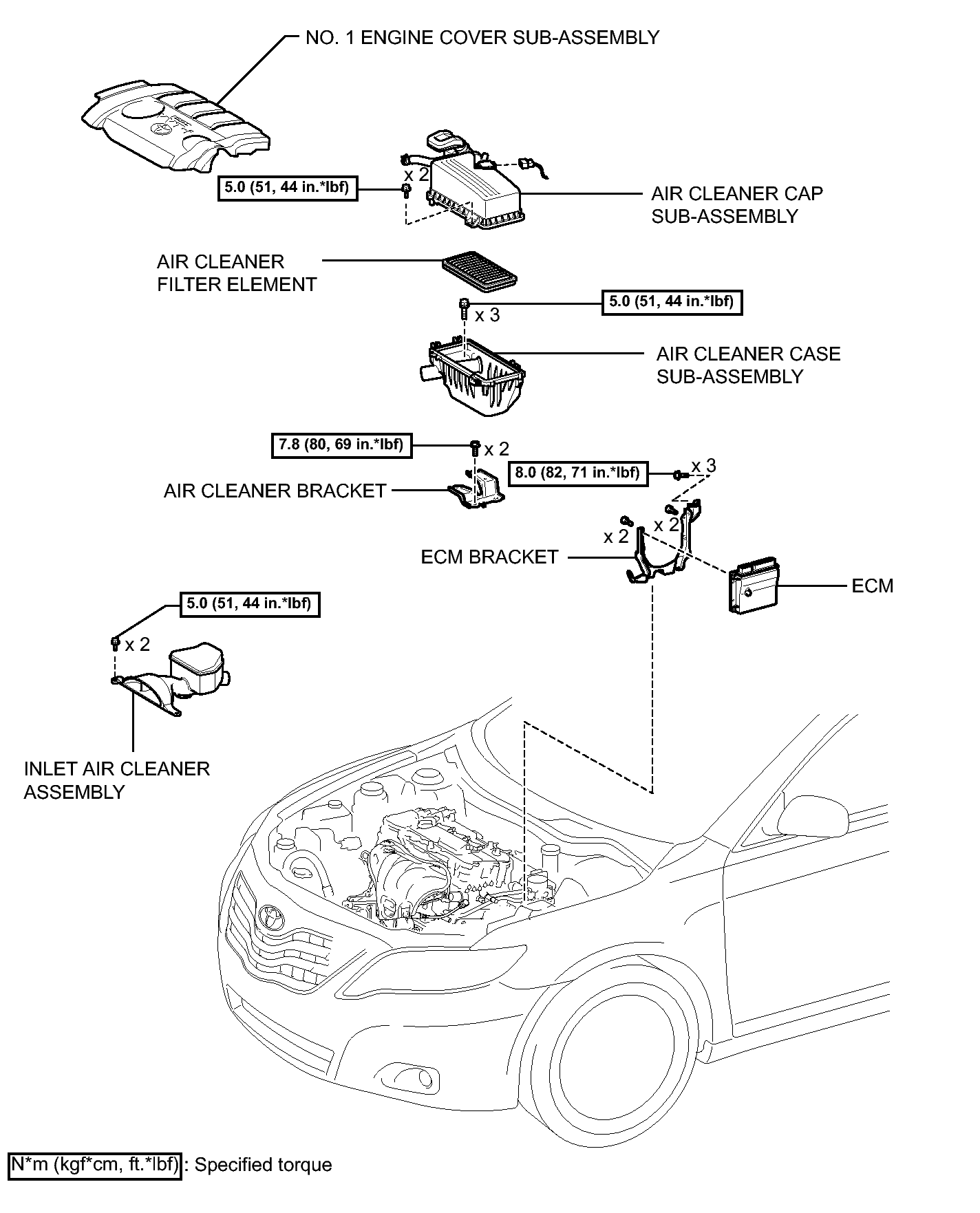

Fig 1: Identifying ECM Replacement Components With Torque Specifications
GTY176489Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
