Parts Location: Illustration

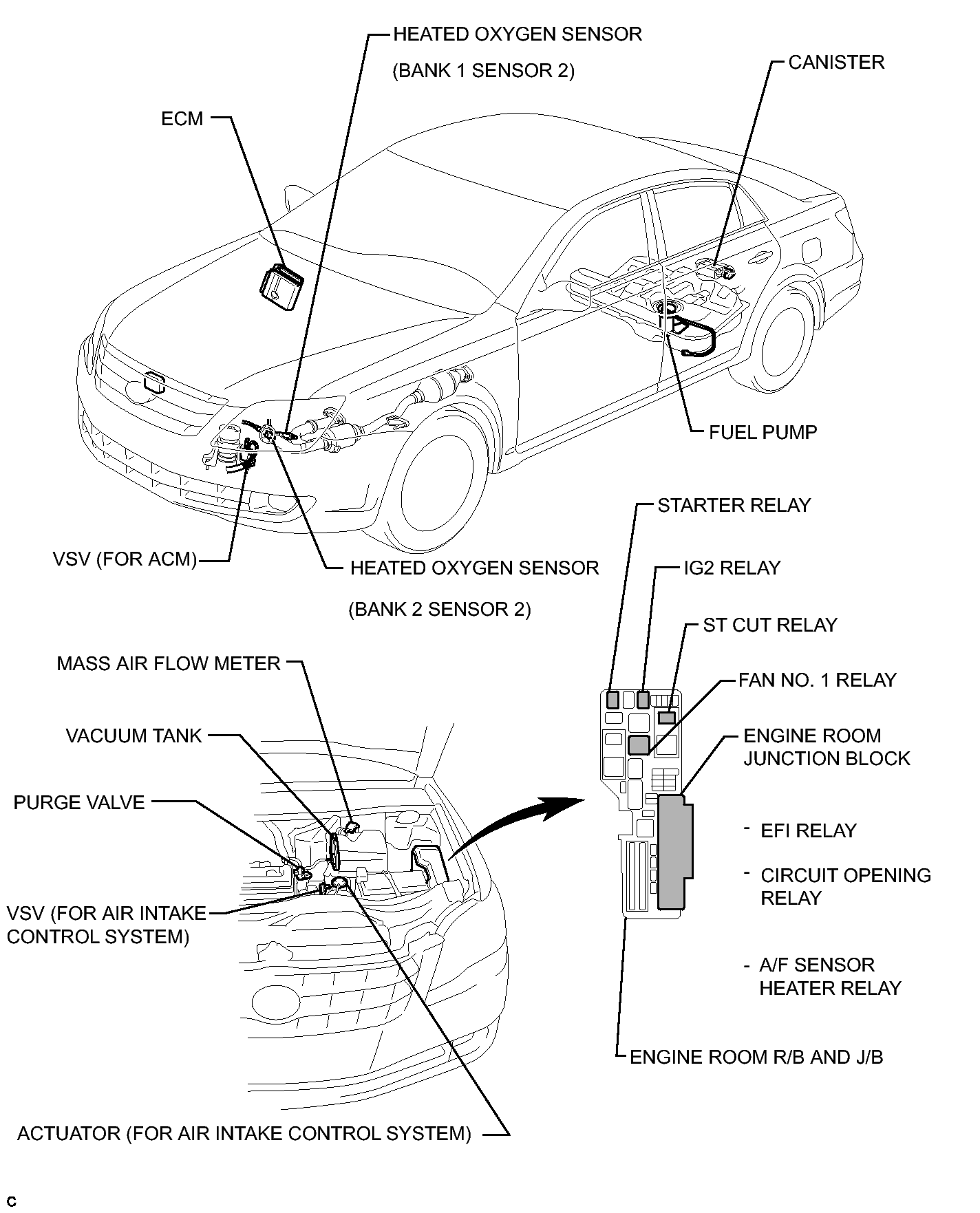

Fig 1: Identifying SFI System Parts Location (1 Of 4)
GTY180618Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

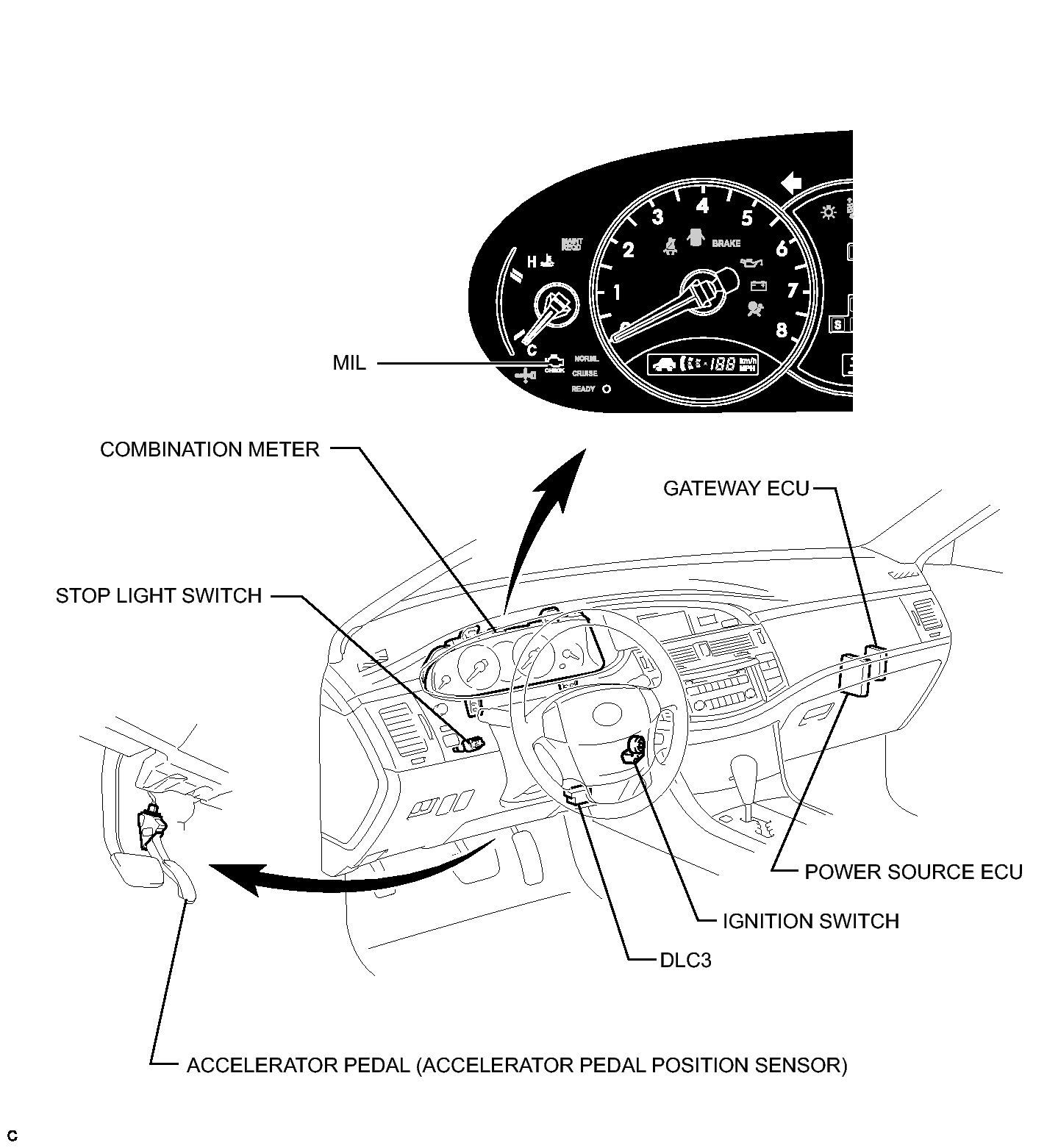

Fig 1: Identifying SFI System Parts Location (2 Of 4)
GTY167639Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

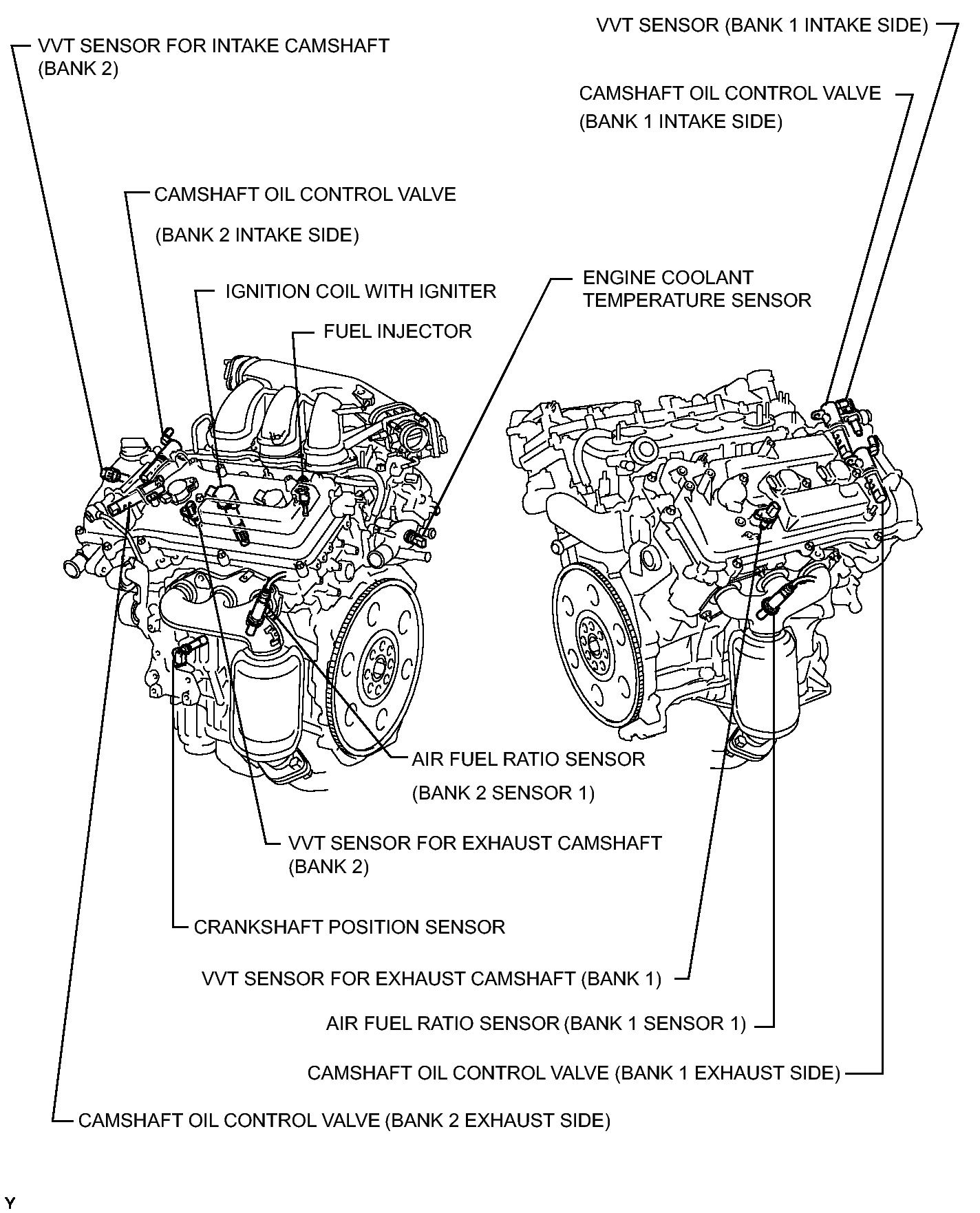

Fig 1: Identifying SFI System Parts Location (3 Of 4)
GTY182605Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

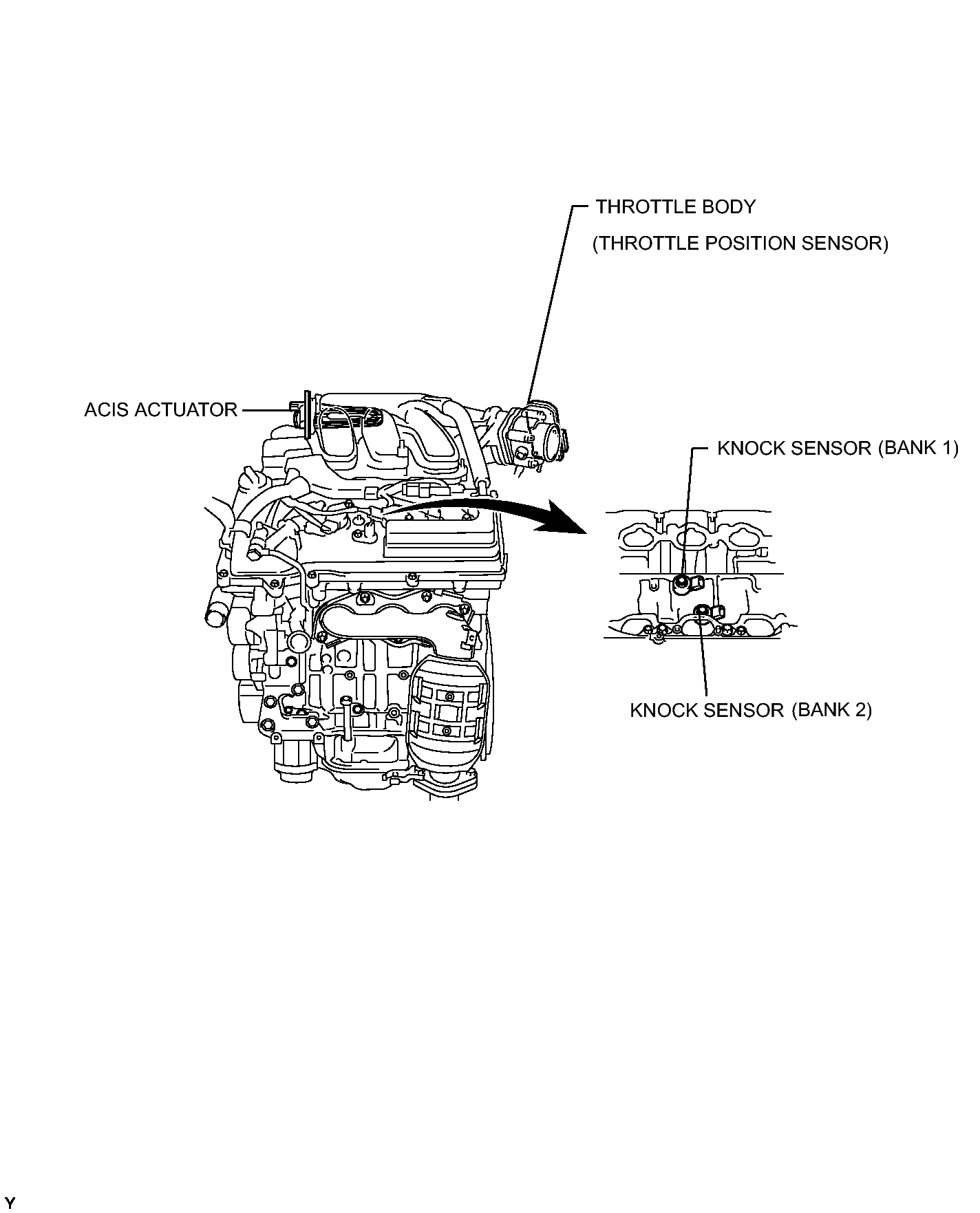

Fig 1: Identifying SFI System Parts Location (4 Of 4)
GTY169429Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
