Parts Location: Illustration

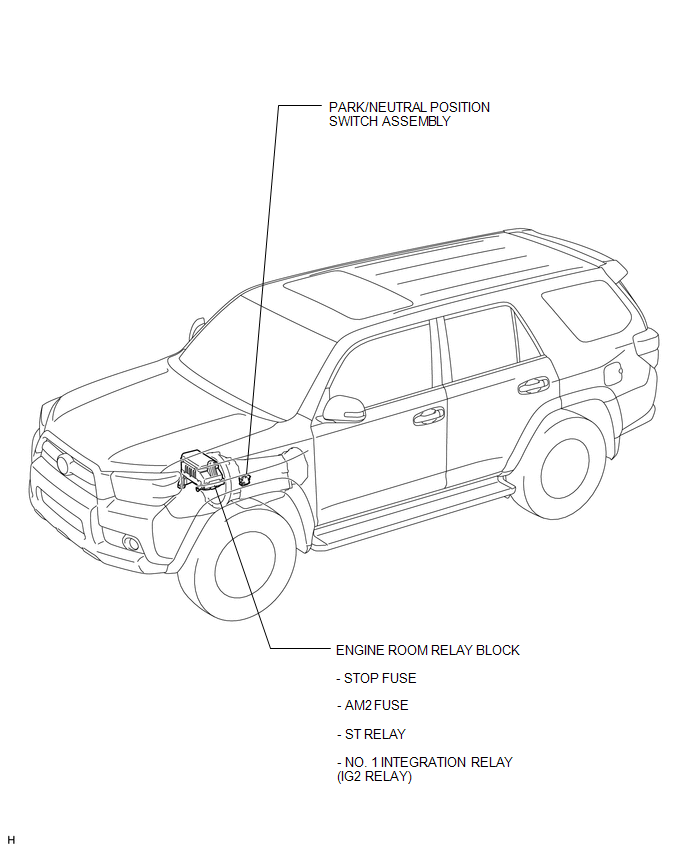

Fig 1: Identifying Smart Key System (For Start Function) Components
GTY215020Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

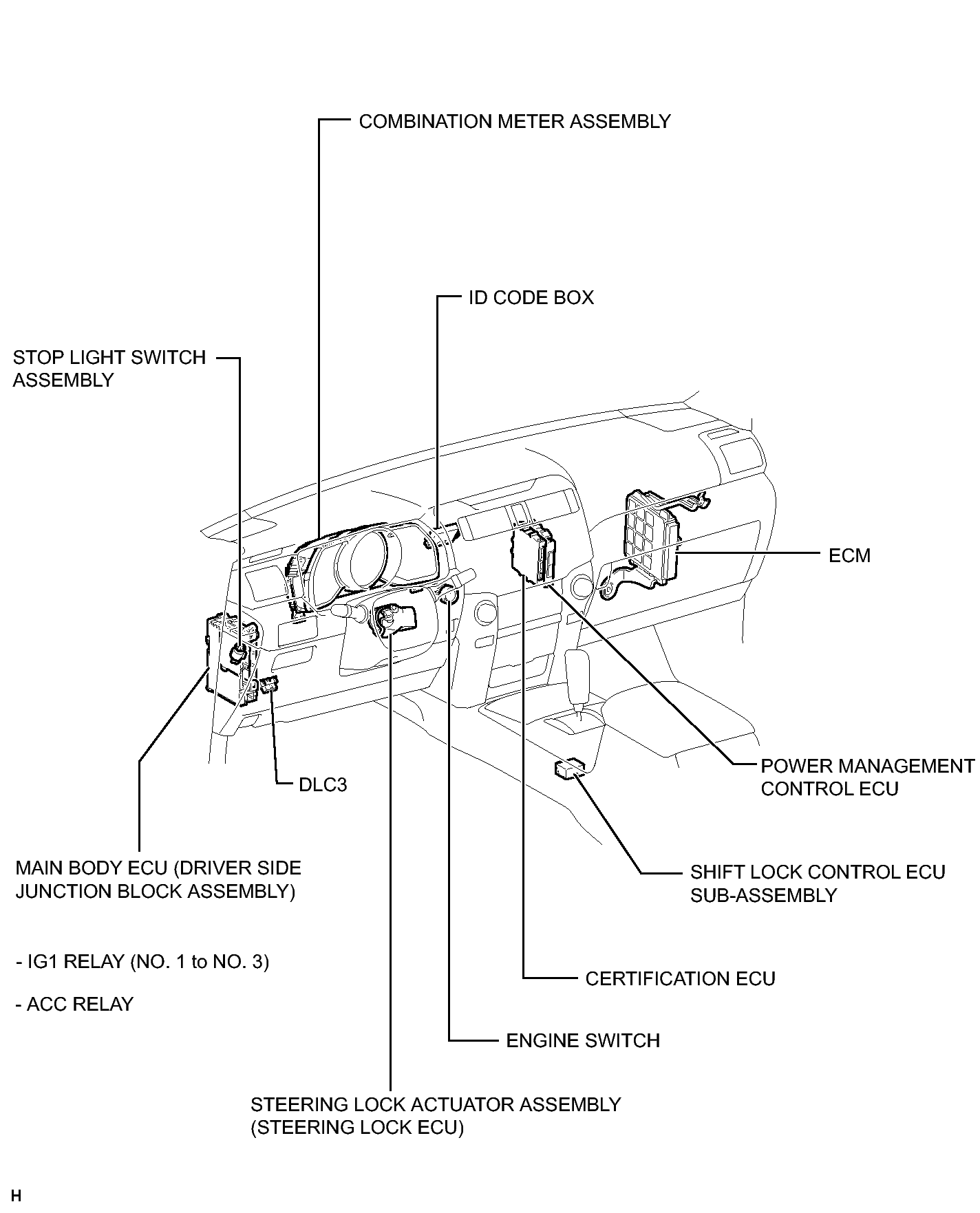

Fig 1: Identifying Smart Key System (For Start Function) Components
GTY229159Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
