Ignition Coil And Spark Plug: Components: Illustration

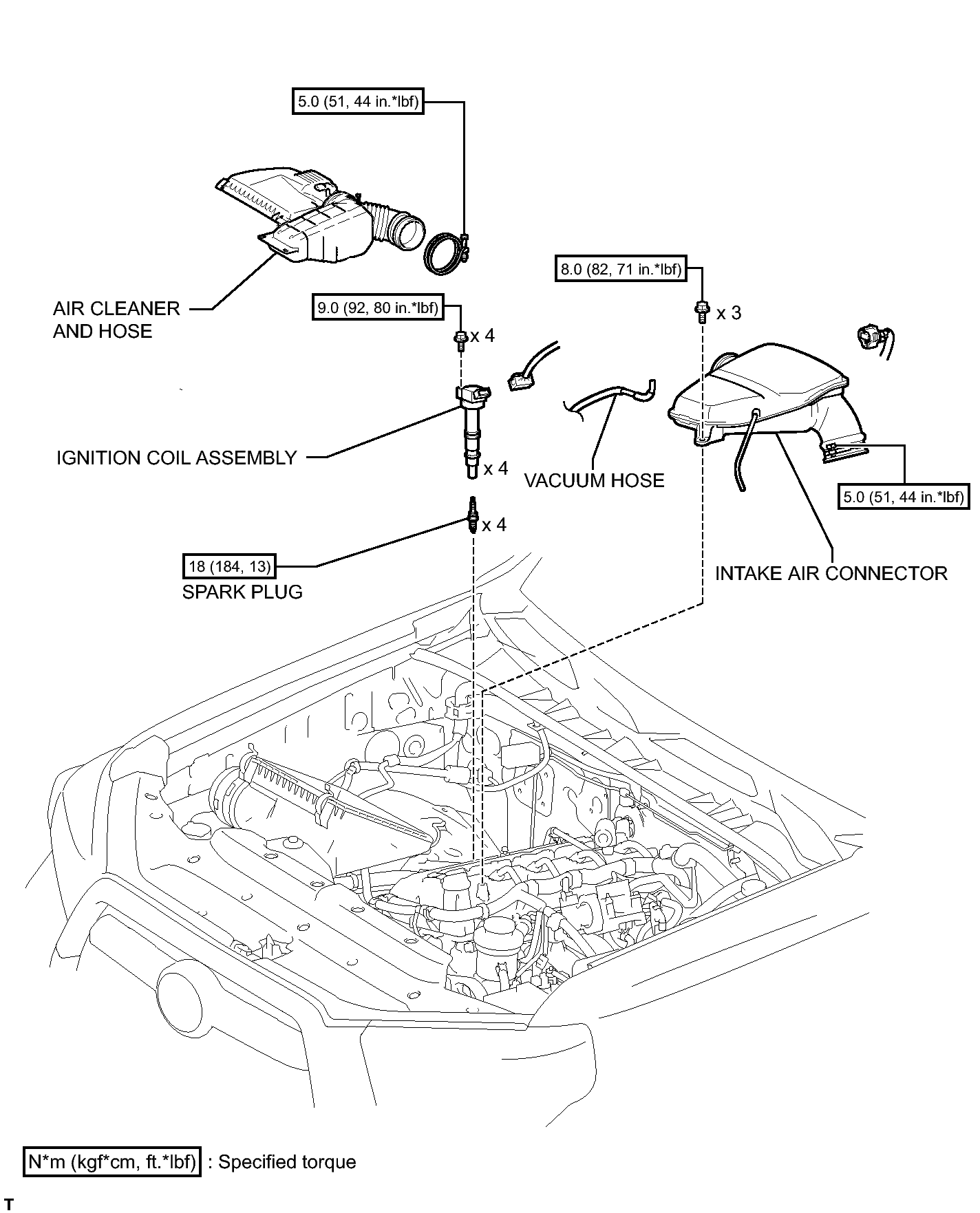

Fig 1: Identifying Ignition Coil & Spark Plug Replacement Components With Torque Specifications

GTY223945

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
