Shift Lock (1GR-FE): Notes

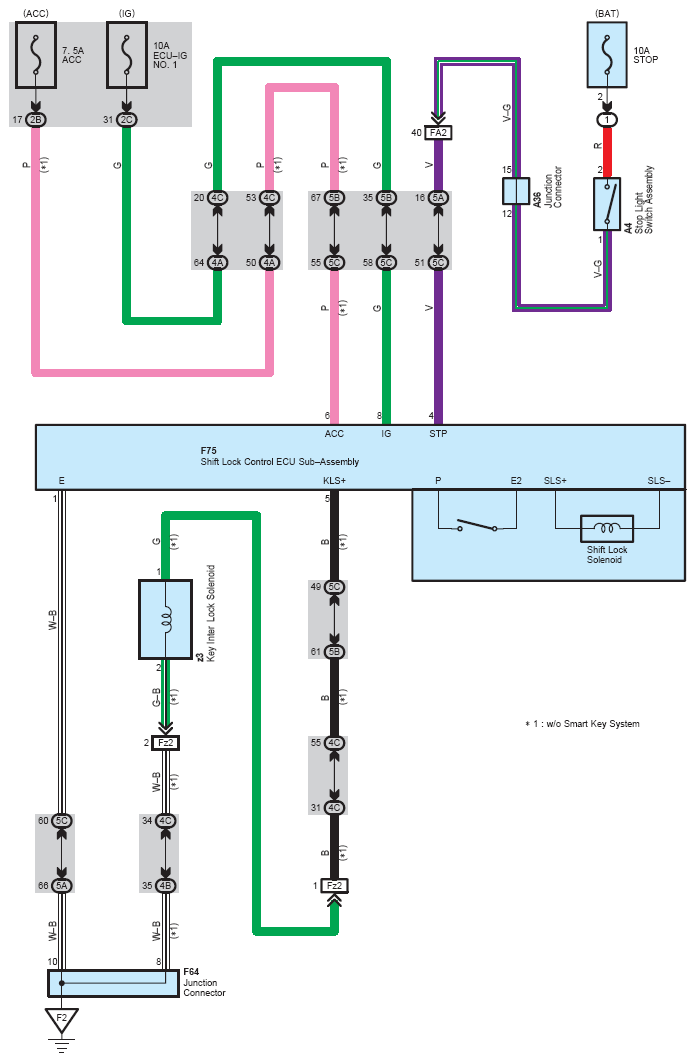

Fig 1: Shift Lock (1GR-FE) - Circuit Diagram

G07551907

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
