Kinetic Dynamic Suspension System: Notes

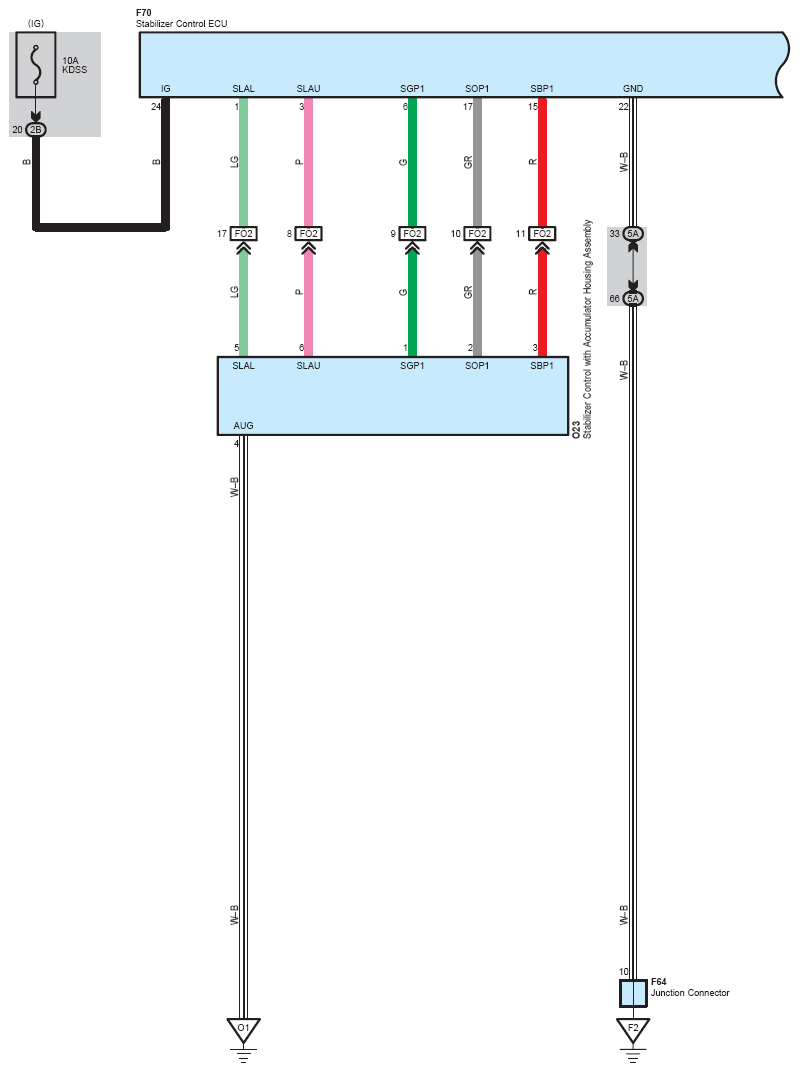

Fig 1: Kinetic Dynamic Suspension System - Circuit Diagram (1 Of 5)
G07551881Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Kinetic Dynamic Suspension System - Circuit Diagram (2 Of 5)
G07551882Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Kinetic Dynamic Suspension System - Circuit Diagram (3 Of 5)
G07551883Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Kinetic Dynamic Suspension System - Circuit Diagram (4 Of 5)
G07551884Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 5: Kinetic Dynamic Suspension System - Circuit Diagram (5 Of 5)
G07551885Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
