Back Door Opener: Notes

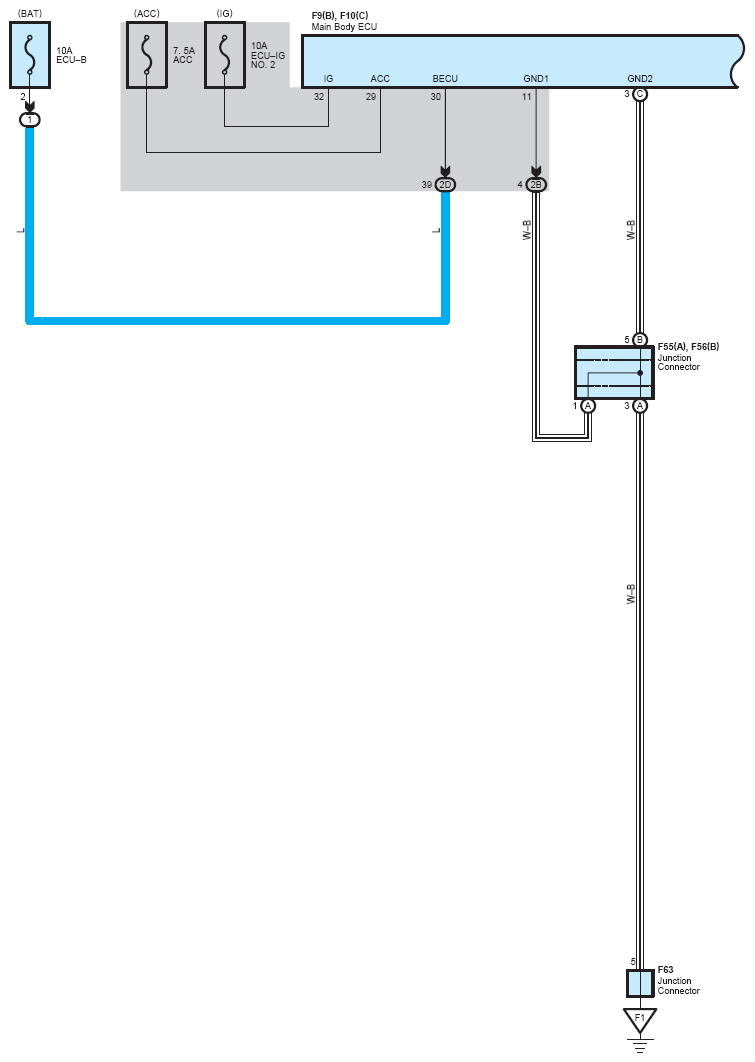

Fig 1: Back Door Opener - Circuit Diagram (1 Of 5)
G07551833Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Back Door Opener - Circuit Diagram (2 Of 5)
G07551834Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

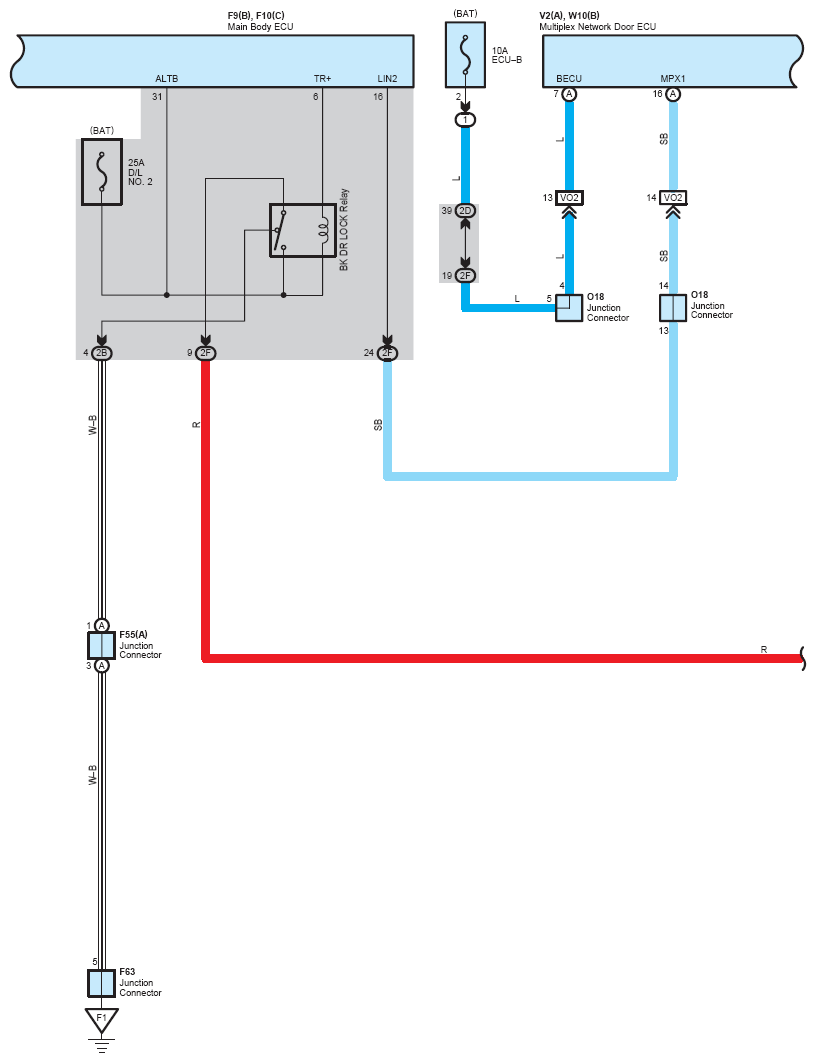

Fig 3: Back Door Opener - Circuit Diagram (3 Of 5)
G07551835Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

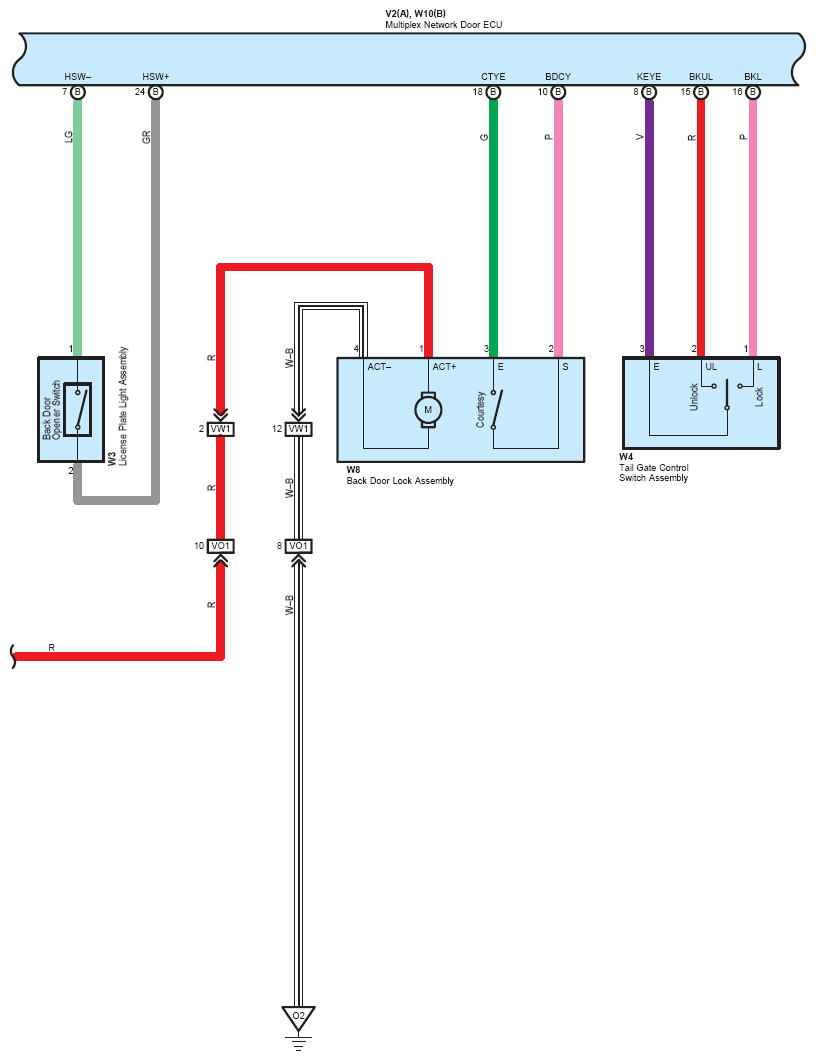

Fig 4: Back Door Opener - Circuit Diagram (4 Of 5)
G07551836Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

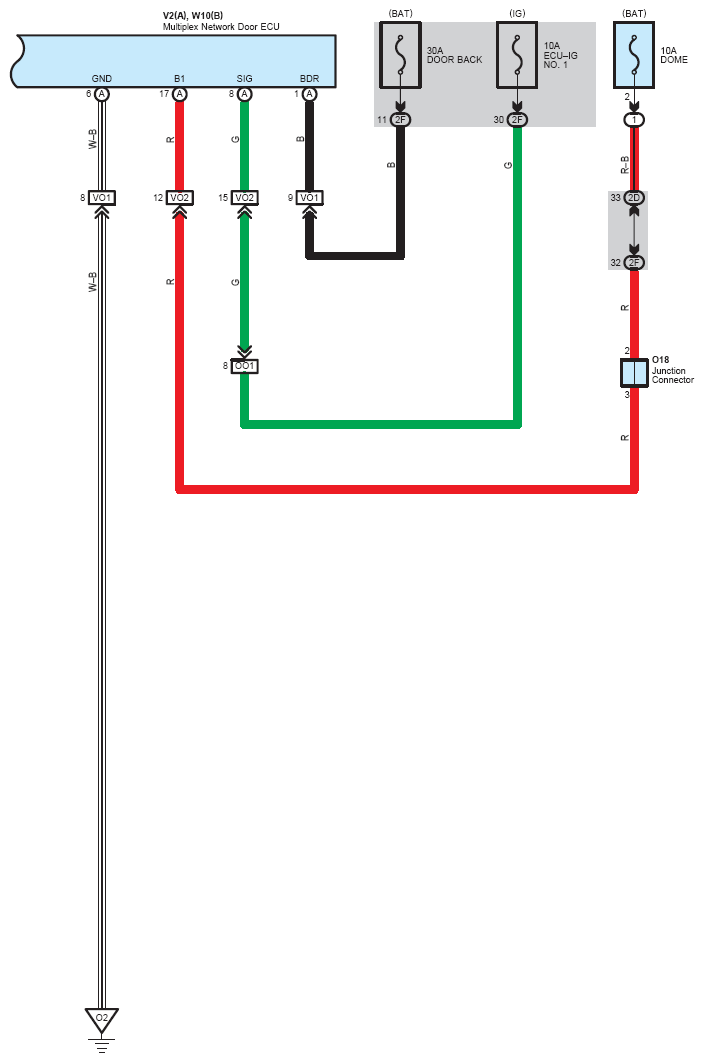

Fig 5: Back Door Opener - Circuit Diagram (5 Of 5)
G07551837Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
