POWER SOURCE (Current Flow Chart): [Location]

1. Engine Room R/B Assembly and Engine Room J/B Assembly : ENGINE ROOM R/B ASSEMBLY; : ENGINE ROOM J/B ASSEMBLY - FRONT FENDER APRON LH )
2. Driver Side J/B Assembly : Driver Side J/B Assembly - Instrument Panel Reinforcement )

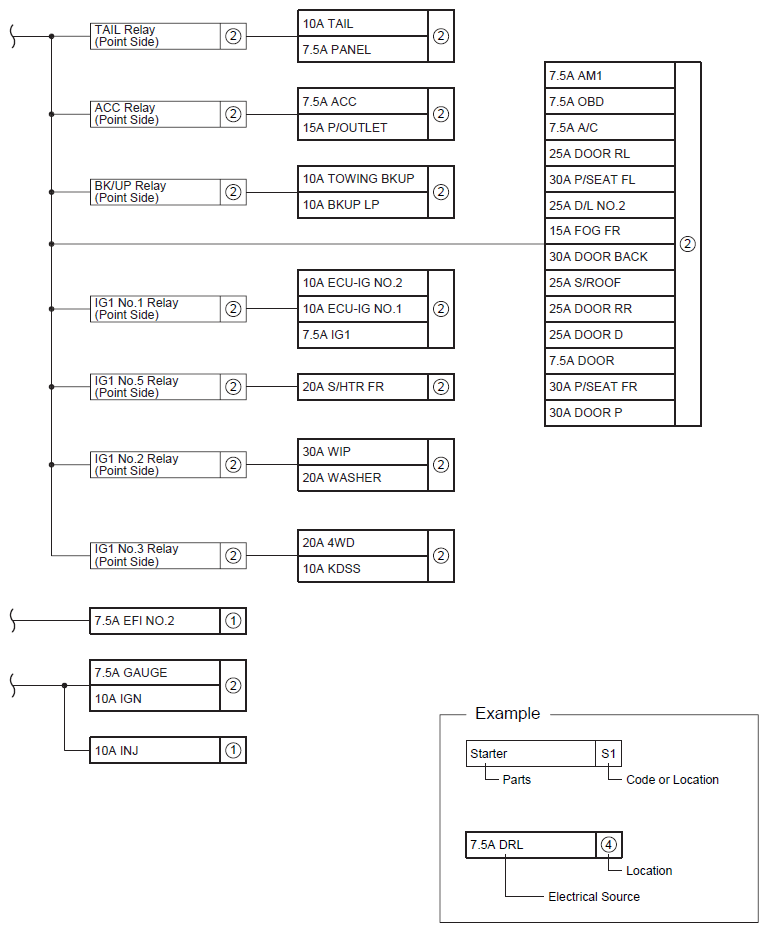

Fig 1: Power Source Current Flow Chart (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
