OEM System Circuits: EPS: Notes

Fig 1: EPS - Circuit Diagram (1 Of 2)
G07611350Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

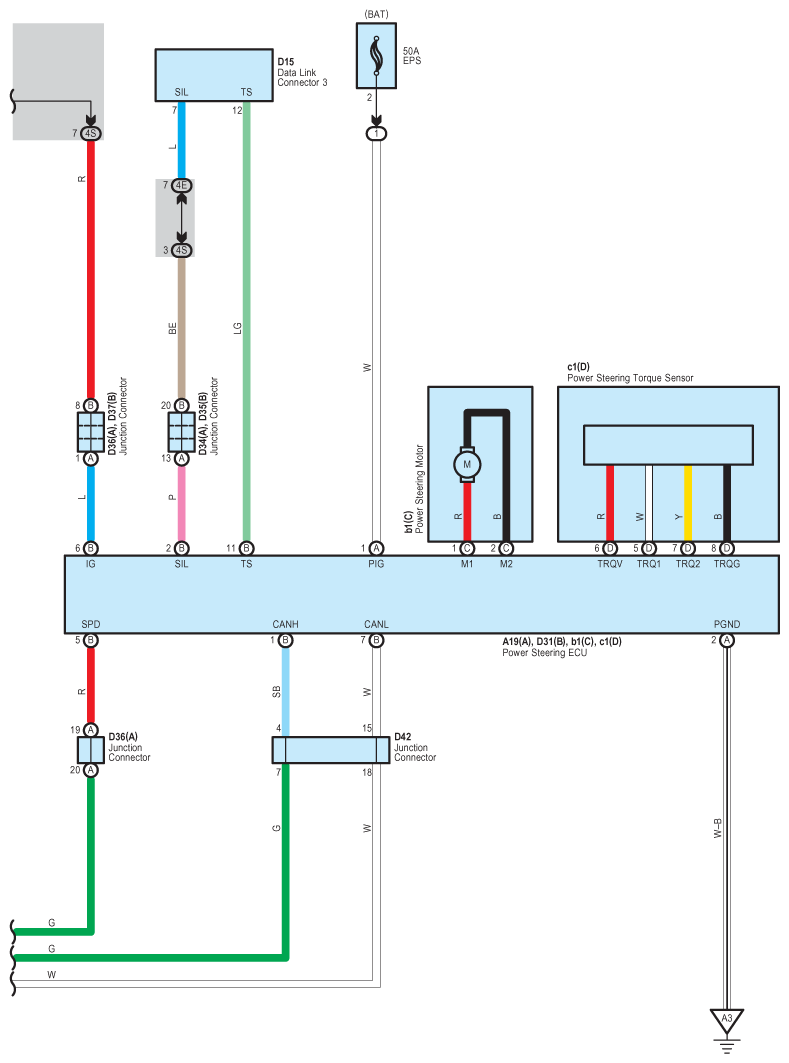

Fig 2: EPS - Circuit Diagram (2 Of 2)
G07611351Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
