Yaris S, 4D Hatchback
>>
Repair and Diagnosis
>>
Body & Frame
>>
Windows
>>
Windshield/Window Glass
>>
Window Defogger System
>>
System Diagram
System Diagram
Fig 1: Identifying Window Defogger System Diagram (Hatchback)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

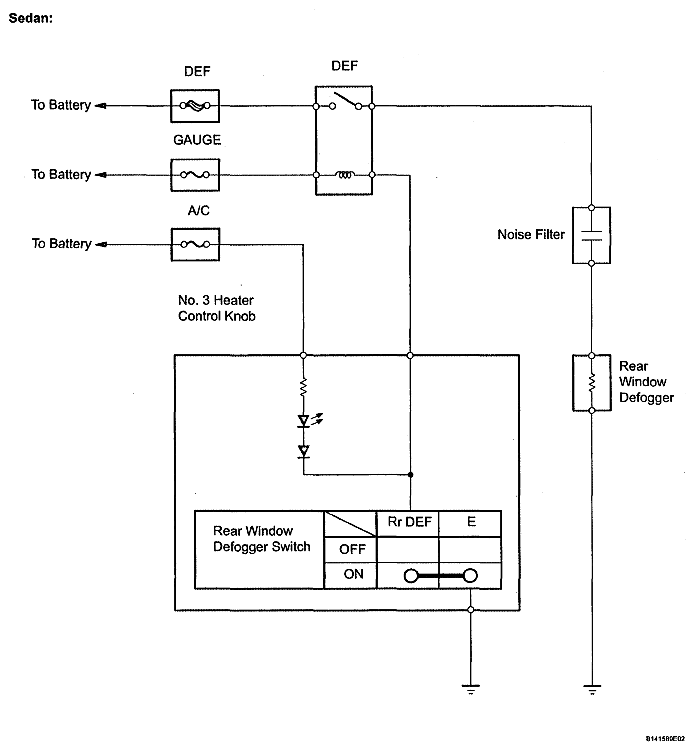

Fig 2: Identifying Window Defogger System Diagram (Sedan)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
