Parts Location

WARNING: This page is about a different car, the 2009 Toyota Prius. However, it is still accessible from the selected car via links, so may be relevant.

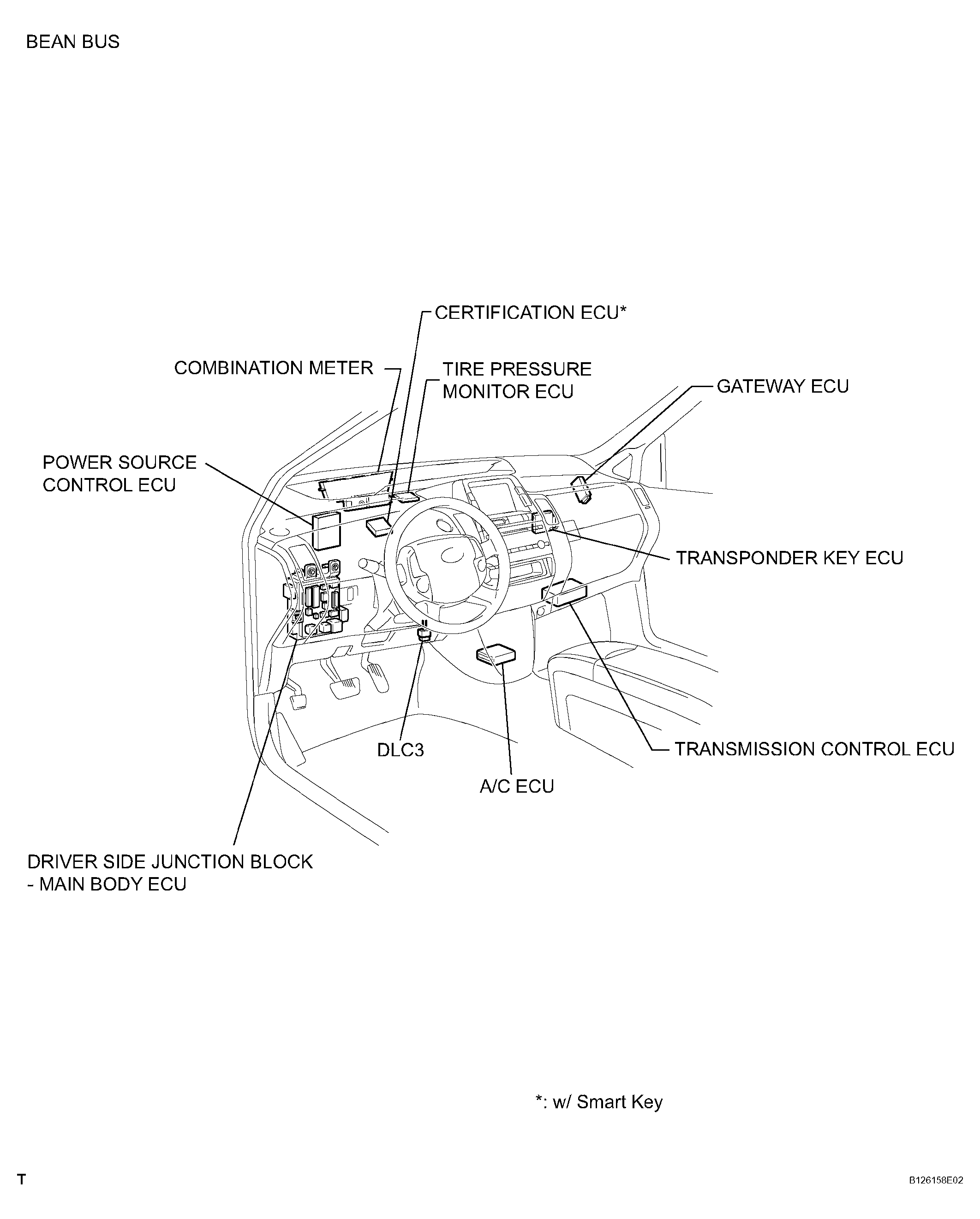

Fig 1: Locating Multiplex Communication System Components (BEAN BUS)
G04477269Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

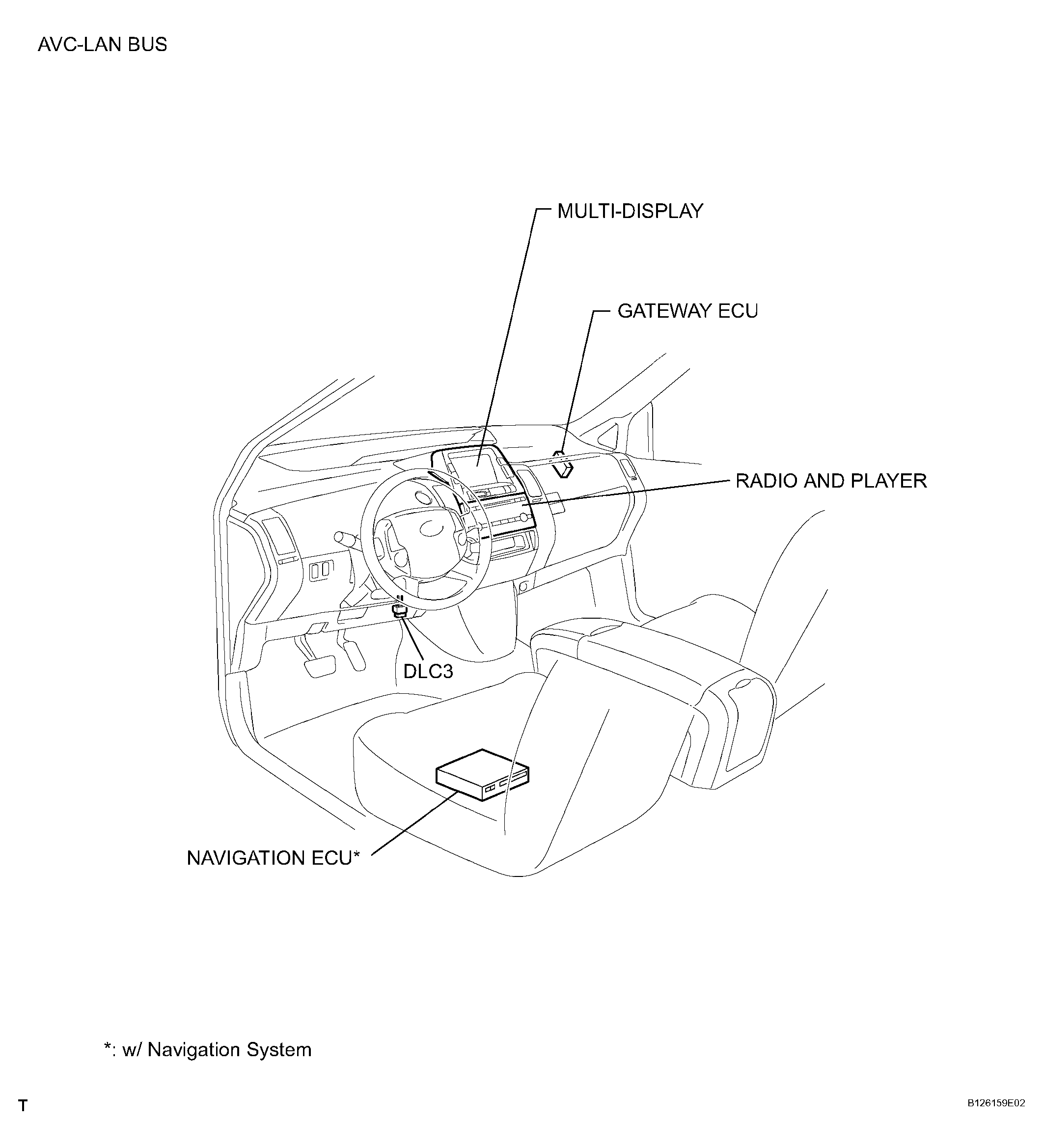

Fig 2: Locating Multiplex Communication System Components (AVC-LAN BUS)
G04477270Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
