Fog Light Assembly: Removal

WARNING: This page is about a different car, the 2009 Toyota Prius. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

Use the same procedures for the RH and LH sides.
The procedures listed below are for the LH side.

REMOVE FRONT FENDER LINER LH (See REMOVAL )
REMOVE FRONT FENDER LINER RH (See REMOVAL )
REMOVE FRONT BUMPER COVER (See REMOVAL )
REMOVE RADIATOR GRILLE LOWER LH (See REMOVAL )
REMOVE FOG LIGHT UNIT LH
1. Detach the 3 claws and push the fog light unit towards the front of the vehicle.
2. Remove the fog light bulb from the fog light unit.

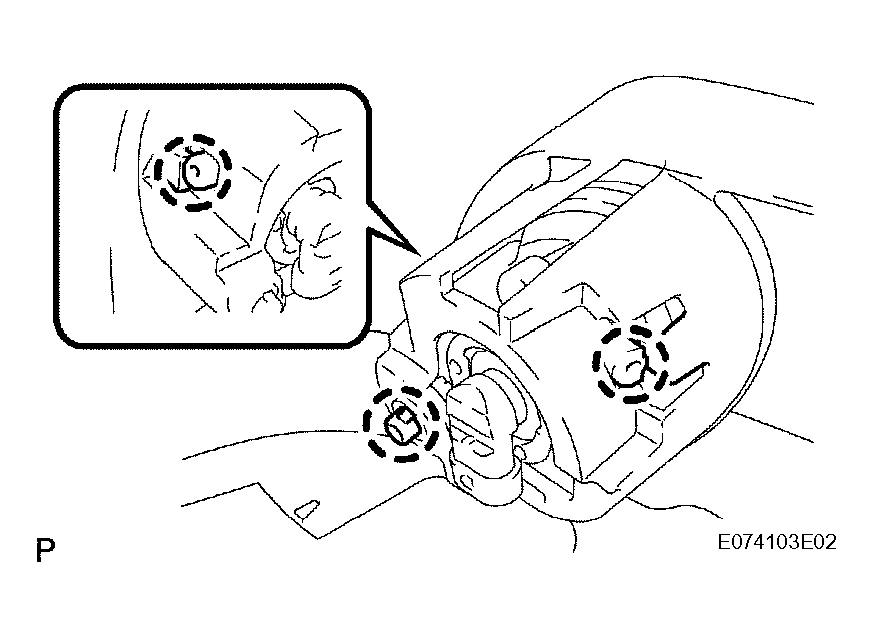

  Fig 1: Removing Fog Light Unit LH
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
