VC Output Circuit: Wiring Diagram

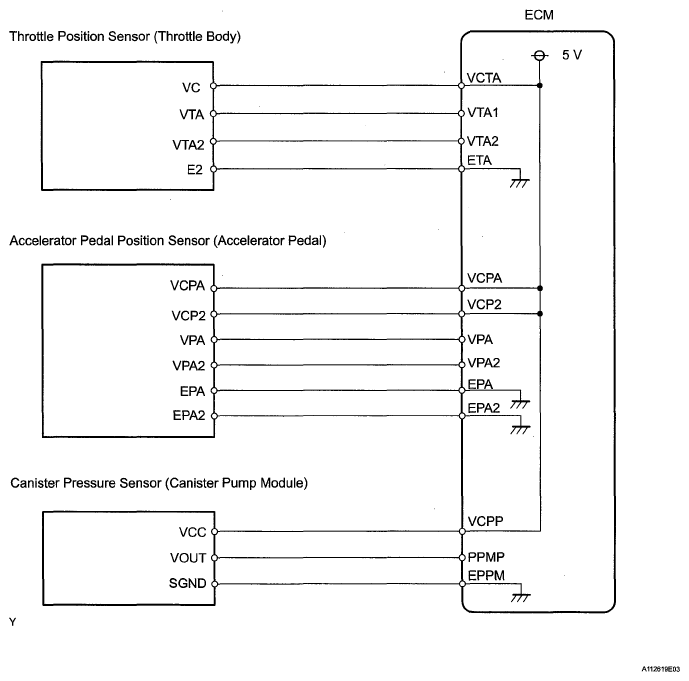

Fig 1: Throttle Position Sensor And ECM - Wiring Diagram

G05590752

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
