ECM Power Source Circuit: Wiring Diagram

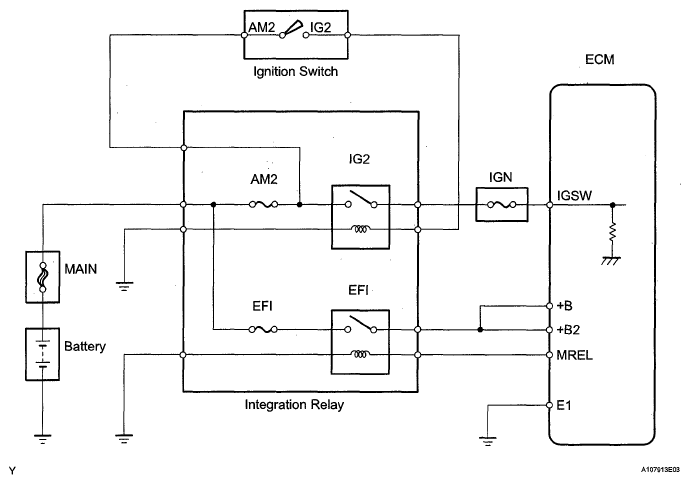

Fig 1: Ignition Switch And ECM - Wiring Diagram

G05590741

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
