Fuel Sender Gauge Assembly: Installation

  1. INSTALL FUEL SENDER GAUGE ASSEMBLY
    1. Install the fuel sender gauge onto the fuel suction with pump and gauge tube.
      2. Fig 1: Identifying Fuel Sender Gauge Onto Fuel Suction
      G04833464Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect the fuel sender gauge connector.

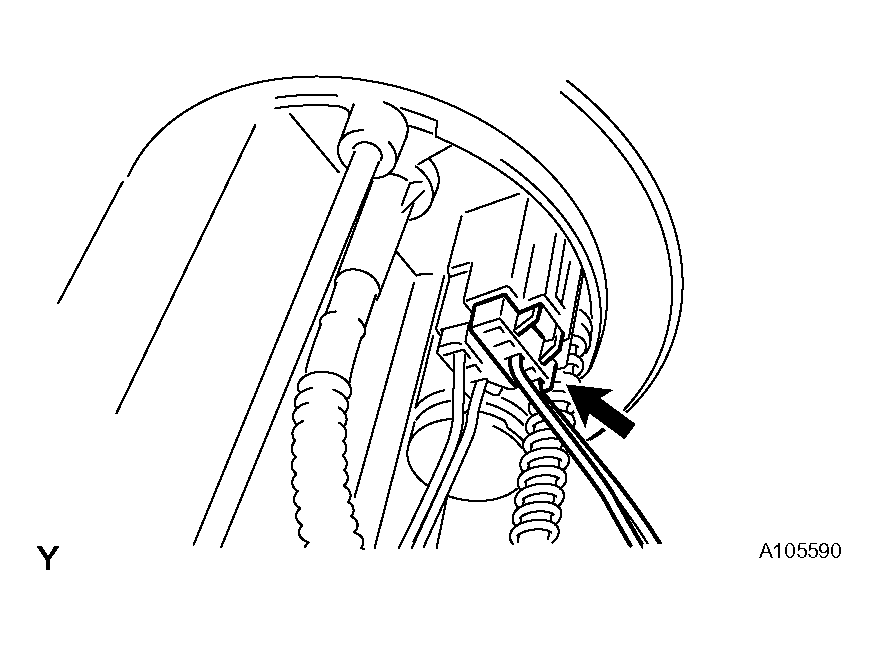

      3. Fig 2: Identifying Fuel Sender Gauge Connector
      G04504577Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL FUEL SUCTION WITH PUMP AND GAUGE TUBE ASSEMBLY  (see INSTALLATION )
