Oil Pump: Installation

  1. INSTALL OIL PUMP ASSEMBLY
    1. Install 2 new O-rings in the 2 locations shown.
      Fig 1: Locating O-Rings From Cylinder Block & Oil Pan Sub-Assembly
      G04828846Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Apply seal packing to the oil pump assembly, cylinder head and cylinder block.

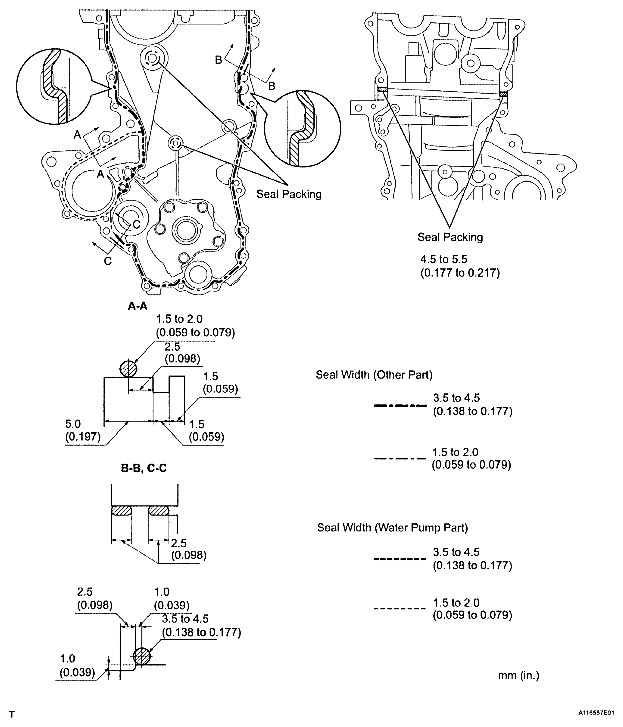

      Fig 2: Identifying Seal Packing Dimension Of Oil Pump Assembly, Cylinder Head & Cylinder Block
      G04828963Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Seal packing:

      Water pump part Toyota Genuine Seal Packing 1282B, Three Bond 1282B or Equivalent Other part Toyota Genuine Seal Packing Black, Three Bond 1207B or Equivalent

      NOTE:
      • Remove any oil from the contact surfaces.
      • Install the oil pump assembly within 3 minutes and tighten the bolts and nut within 15 minutes of applying the seal packing.
      • Do not expose the seal to engine oil for at least 2 hours after the installation.
    3. Align the keyway of the oil pump rotor with the rectangular portion of the crankshaft, and slide the oil pump into place.
      Fig 3: Aligning Keyway Of Oil Pump Rotor
      G04828964Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Install the oil pump assembly with the 15 bolts and the nut. Tighten the bolts and nut uniformly in several steps.

      Torque:

      32 N*m (326 kgf*cm, 24 ft.*lbf) for bolt A

      11 N*m (112 kgf*cm, 8.1 ft.*lbf) for bolt B

      11 N*m (112 kgf*cm, 8.1 ft.*lbf) for bolt C

      24 N*m (245 kgf*cm, 18 ft.*lbf) for nut D

      24 N*m (245 kgf*cm, 18 ft.*lbf) for bolt E

      NOTE: After installing the oil pump assembly, install the mounting bracket and water pump within 15 minutes.
      Fig 4: Locating Oil Pump Assembly With Bolts & Nut
      G04828965Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Each bolt length is as follows.

      • A: 30 mm (1.181 in.)
      • B: 35 mm (1.378 in.)
      • C: 20 mm (0.787 in.)
      • E: 14 to 20 mm (0.551 to 0.787 in.), Double ended bolt
  2. INSTALL TRANSVERSE ENGINE MOUNTING BRACKET
    1. Install the transverse engine mounting bracket with the 4 bolts.

      Torque: 55 N*m (561 kgf*cm, 41 ft.*lbf)

  3. INSTALL WATER PUMP ASSEMBLY (See  INSTALLATION  )
  4. INSTALL WATER PUMP PULLEY (See  INSTALLATION  )
  5. INSTALL CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (See  INSTALLATION  )
    Fig 5: Identifying Transverse Engine Mounting Bracket Bolts
    G04829299Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. INSTALL CRANKSHAFT POSITION SENSOR (See  INSTALLATION  )
  7. INSTALL CRANKSHAFT DAMPER SUB-ASSEMBLY
    1. Align the pin hole in the crankshaft damper with the pin and install the crankshaft damper sub-assembly.
    2. Provisionally install the bolt.
    3. Using 2 SSTs, tighten the bolt while holding the crankshaft damper sub-assembly.

      SST 09213-14010 (91651-60865), 09330-00021

      Torque: 128 N*m (1,305 kgf*cm, 95 ft.*lbf)

      NOTE: Check the SST installation positions when installing them, to avoid the SST fixing bolts from coming into contact with the oil pump assembly.
      Fig 6: Identifying Special Tool
      G04829298Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. INSTALL ENGINE MOUNTING INSULATOR SUB-ASSEMBLY RH (for Hatchback)
    1. Install the engine mounting insulator sub-assembly RH with the 5 bolts and nut.

      Torque:

      45 N*m (459 kgf*cm, 33 ft.*lbf) for bolt A

      52 N*m (530 kgf*cm, 38 ft.*lbf) for bolt B and nut

      Fig 7: Locating Engine Mounting Insulator Sub-Assembly RH With Bolts & Nut
      G04829321Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. INSTALL ENGINE MOUNTING INSULATOR SUB-ASSEMBLY RH (for Sedan)
    1. Install the engine mounting insulator sub-assembly RH with the 5 bolts and nut.

      Torque: 52 N*m (530 kgf*cm, 38 ft.*lbf)

    Fig 8: Locating Engine Mounting Insulator RH
    G04828752Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. INSTALL CYLINDER HEAD COVER SUB-ASSEMBLY (See  INSTALLATION  )
  11. INSTALL VENTILATION HOSE NO. 2 (See  INSTALLATION  )
  12. INSTALL VENTILATION HOSE (See  INSTALLATION  )
  13. INSTALL IGNITION COIL NO. 1 (See  INSTALLATION
  14. INSTALL GENERATOR ASSEMBLY (See  INSTALLATION  )
  15. INSTALL FAN AND GENERATOR V BELT (See  INSTALLATION  )
  16. ADJUST FAN AND GENERATOR V BELT (See  INSTALLATION  )
  17. INSPECT FAN AND GENERATOR V BELT (See  INSTALLATION  )
  18. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

    Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)

  19. ADD ENGINE OIL
  20. ADD ENGINE COOLANT (See  REPLACEMENT  )
  21. CHECK ENGINE OIL LEVEL (See  ON-VEHICLE INSPECTION   )
  22. CHECK FOR ENGINE OIL LEAKAGE
  23. CHECK FOR ENGINE COOLANT LEAKAGE (See  ON-VEHICLE INSPECTION  )
  24. INSTALL CYLINDER HEAD COVER NO. 2 (See  INSTALLATION  )
  25. INSTALL ENGINE UNDER COVER RH
  26. INSTALL FRONT WHEEL RH

    Torque: 103 N*m (1050 kgf*cm, 76 ft.*lbf)
