PCV Valve: Components

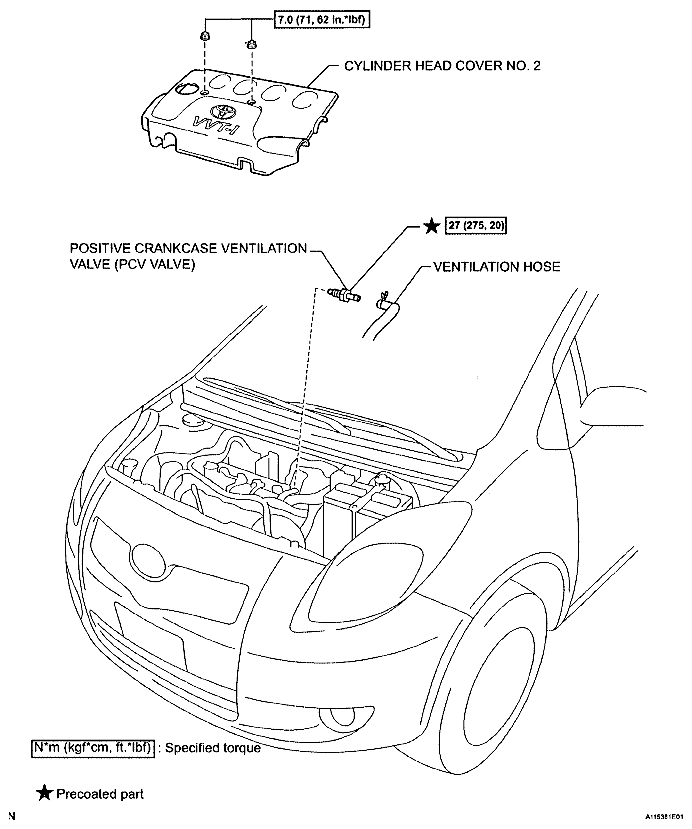

Fig 1: Ventilation Valve Replacement Components With Torque Specifications

G04829154

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
