Transfer Assembly: Removal

  1. REMOVE ENGINE ASSEMBLY WITH TRANSAXLE

    See REMOVAL for 2GR-FE

    See REMOVAL for 1AR-FE

  2. REMOVE FRONT NO. 1 STABILIZER BRACKET LH  (See REMOVAL )
  3. REMOVE FRONT NO. 1 STABILIZER BRACKET RH

    HINT:

    Perform the same procedure as for the LH side.

  4. REMOVE FRONT STABILIZER BAR WITH FRONT STABILIZER LINK ASSEMBLY
  5. REMOVE STEERING LINK ASSEMBLY  (See REMOVAL )
  6. REMOVE FRONT FRAME ASSEMBLY (for 2GR-FE)  (See REMOVAL )
  7. SEPARATE REAR ENGINE MOUNTING INSULATOR ASSEMBLY (for 1AR-FE)  (See REMOVAL )
  8. REMOVE FRONT FRAME ASSEMBLY (for 1AR-FE)  (See REMOVAL )
  9. REMOVE STARTER ASSEMBLY (for 2GR-FE)  (See REMOVAL )
  10. REMOVE STARTER ASSEMBLY (for 1AR-FE)  (See REMOVAL )
  11. REMOVE MANIFOLD STAY (for 2GR-FE)  (See REMOVAL )
  12. REMOVE TRANSFER STIFFENER PLATE RH (for 2GR-FE)  (See REMOVAL )
  13. REMOVE TRANSFER STIFFENER PLATE RH (for 1AR-FE)  (See REMOVAL )
  14. SEPARATE WIRE HARNESS (for 2GR-FE)  (See REMOVAL )
  15. SEPARATE WIRE HARNESS (for 1AR-FE)  (See REMOVAL )
  16. REMOVE FLEXIBLE HOSE BRACKET SUB-ASSEMBLY (for 2GR-FE)  (See REMOVAL )
  17. REMOVE AUTOMATIC TRANSAXLE ASSEMBLY (for 2GR-FE)  (See REMOVAL )
  18. REMOVE AUTOMATIC TRANSAXLE ASSEMBLY (for 1AR-FE)  (See REMOVAL )
  19. REMOVE TRANSFER ASSEMBLY
    1. Remove the 2 bolts and 6 nuts.
    2. Using a plastic hammer, remove the transfer assembly from the transaxle assembly.
    NOTE:
    • Remove the transfer assembly from the transaxle assembly without tilting it.
    • During removal, do not hold the transfer assembly by the oil seals on either side of the assembly.

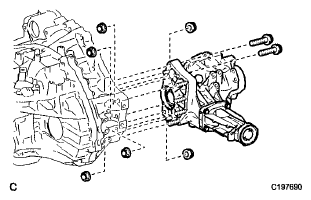

    Fig 1: Identifying Transfer Assembly Bolts And Nuts
    G06025209Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
