Terminals Of Ecu

Fig 1: Identifying Terminals Of AWD Control ECU Connector

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Measure the voltage and resistance of the connector.
   CONNECTOR TERMINALS REFERENCE



   Terminal No. (Symbol)	Terminal Description	Condition	Specified Condition
   14 (CANH) - 16 (CANL)	CAN communication	Ignition switch off	54 to 69 Ω
   23 (GND) - Body ground	Ground	Always	Below 1 Ω
   11 (IG1) - 23 (GND)	Power source voltage	Ignition switch ON	10 to 14 V
   13 (SLC+) - 32 (SLC-)	Electromagnetic solenoid signal	D position, Idling	Pulse generation (See waveform 1 b)
   9 (BSLC) - 23 (GND)	Power source voltage	Always	10 to 14 V

   If the result is not as specified, the AWD control ECU may have a malfunction.

2. Using an oscilloscope, check the waveform 1.

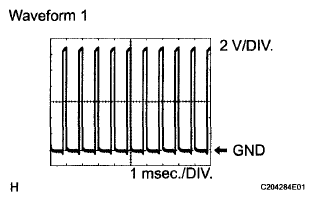

Waveform 1 (Reference)
