Inspection Procedure
HINT:
Check the condition of each related circuit connector before troubleshooting (See ELECTRONIC CIRCUIT INSPECTION PROCEDURE ).
- CHECK CAN COMMUNICATION SYSTEM
- Check if the CAN communication DTC is output (See DIAGNOSIS SYSTEM ).
Result
RESULT REFERENCEResult Proceed to DTC is not output A DTC is output B B: REPAIR CAN COMMUNICATION SYSTEM (See CAN COMMUNICATION SYSTEM )
A: Go to Next Step
- CHECK WIRE HARNESS (TC OF DLC3 - TC OF ECM AND BODY GROUND)
- Turn the ignition switch off.
- Disconnect the ECM connector.
- Measure the resistance of the wire harness side connectors.
Standard Resistance

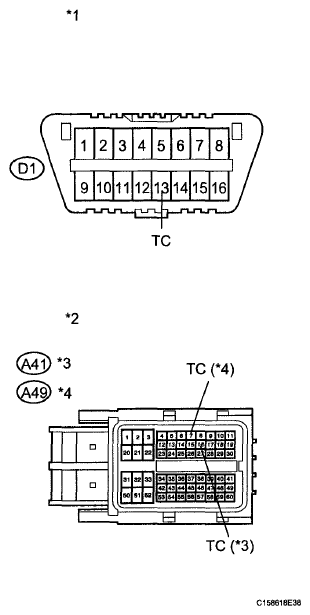

TESTER CONNECTION SPECIFIED CONDITION CHARTTester Connection (DLC3 - ECM) Condition Specified Condition D1-13 (TC) - A41-16 (TC) Always Below 1 Ω D1-13 (TC) - A49-7 (TC) Always Below 1 Ω D1-13 (TC) - Body Ground Always 10 kΩ or higher Text in Illustration
ILLUSTRATION LEGEND*1 DLC3 *2 Front view of wire harness connector (to ECM) *3 2GR-FE *4 1AR-FE NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
OK: Go to Next Step
- CHECK WIRE HARNESS (CG OF DLC3 - BODY GROUND)
- Measure the resistance of the DLC3.
Standard Resistance

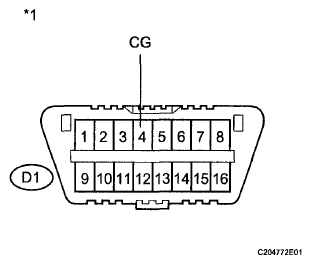

TESTER CONNECTION SPECIFIED CONDITION CHARTTester Connection Condition Specified Condition D1-4 (CG) - Body ground Always Below 1 Ω Text in Illustration
ILLUSTRATION LEGEND*1 DLC3 NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
OK: Go to Next Step
- CHECK WIRE HARNESS (TC OF DLC3 - BODY GROUND)
- Measure the resistance of the DLC3.
Standard Resistance

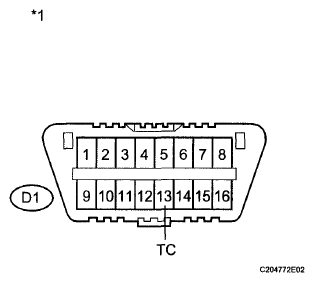

TESTER CONNECTION SPECIFIED CONDITION CHARTTester Connection Condition Specified Condition D1-13 (TC) - Body ground Always Below 1 Ω Text in Illustration
ILLUSTRATION LEGEND*1 DLC3 NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
OK: REPLACE AWD CONTROL ECU (See 4WD CONTROL ECU )
