4WD Control Ecu: Removal

  1. REMOVE FRONT DOOR SCUFF PLATE RH
  2. REMOVE COWL SIDE TRIM SUB-ASSEMBLY RH
  3. REMOVE NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
  4. REMOVE LOWER INSTRUMENT PANEL SUB-ASSEMBLY  (See REMOVAL )
  5. REMOVE 4WD CONTROL ECU
    1. Disconnect the connector.

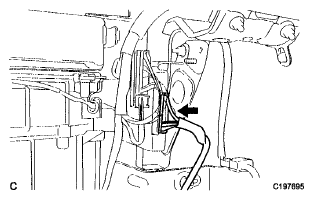

      Fig 1: Locating 4WD Control ECU Connector
      G06025289Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 nuts and ECU.
    Fig 2: Locating Nuts And ECU
    G06025290Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
